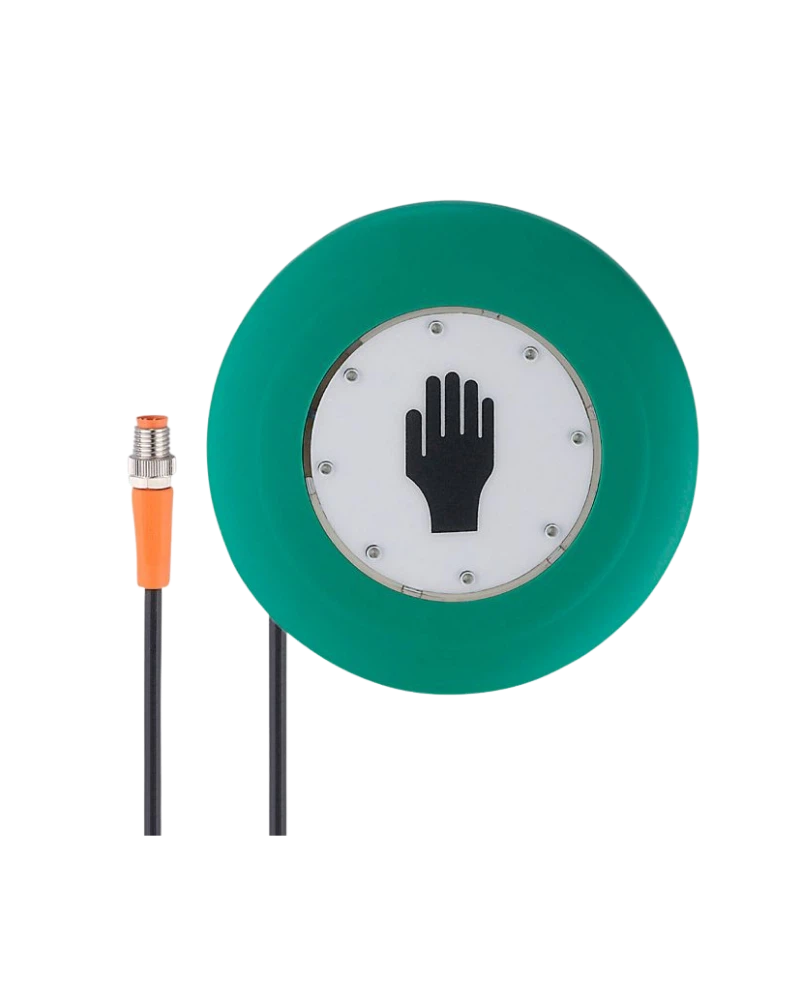

The IFM KT5006 is a capacitive touch sensor designed for contactless switching without mechanical actuation. It uses a static operating principle and provides a PNP normally-open switching output. The sensor operates from 12–30 V DC and supports a 200 mA switching current. Its large Ø100 mm touch surface provides convenient operation from a finger, hand or suitable object. Integrated LEDs provide clear switching and power indication, while the front is protected to IP67/IP69K.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KT5006 detects touch without requiring mechanical pressure on a conventional pushbutton. Its static capacitive operating principle allows wear-free switching. The large Ø100 mm actuating surface provides a generous operating area. This makes the sensor suitable for applications where conventional mechanical buttons are undesirable. The absence of mechanical contacts also reduces routine maintenance requirements.
The sensor operates from 12–30 V DC with approximately 30 mA current consumption. Its PNP normally-open output supports up to 200 mA continuous current. Short-circuit and overload protection are integrated into the output stage. The maximum power-on delay is 500 ms, with a response time of approximately 35 ms. These characteristics allow straightforward integration with PLC and machine-control systems.
The actuating surface uses transparent PA Grilamid TR 90UV material, while the housing uses black PC/ABS. The coloured surrounding ring can be supplied in different colours for machine-interface identification. The design is resistant to oil, impact and scratching. This makes the sensor appropriate for industrial operator interfaces. The compact 11 mm assembly depth also supports panel integration.
Capacitive touch operation
Contactless switching
PNP normally-open output
12–30 V DC supply
200 mA switching current
35 ms response time
500 ms maximum power-on delay
Ø100 mm actuating surface
8 red switching LEDs
8 green power LEDs
Oil-resistant design
Impact-resistant surface
Scratch-resistant surface
IP67 protection
IP69K front protection
Machine operator panels
Start/stop interfaces
Industrial control panels
Packaging machinery
Assembly equipment
Material-handling machines
Machine-status control
Touch-operated automation equipment
The KT5006 is intended for applications where touch activation is preferred over mechanical button operation. Its large active surface allows convenient operation without requiring precise finger placement. The LED arrangement provides immediate visual feedback for power and switching status. Different coloured surrounds can be used for visual machine-interface differentiation. This provides a flexible solution for industrial human-machine interfaces.
The sensor operates from -40 to 85 °C. Its front protection reaches IP67 and IP69K, supporting demanding industrial cleaning and operating conditions. The housing materials provide resistance against oil, impact and scratching. The sensor also incorporates reverse-polarity protection. These features make it suitable for industrial machine environments.
| Specification | KT5006 |
|---|---|
| Product type | Capacitive touch sensor |
| Product code | KTRSHMK-RBPKG/AM/AS/0.3M |
| Operating principle | Static capacitive |
| Actuating method | Contactless touch |
| Electrical design | PNP |
| Output function | Normally open |
| Operating voltage | 12–30 V DC |
| Current consumption | 30 mA |
| Protection class | III |
| Reverse polarity protection | Yes |
| Maximum power-on delay | 500 ms |
| Continuous output current | 200 mA |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Response time | 35 ms |
| Ambient temperature | -40…85 °C |
| Front protection | IP67/IP69K |
| Actuating surface diameter | 100 mm |
| Assembly depth | 11 mm |
| Actuating surface material | PA Grilamid TR 90UV |
| Housing material | PC/ABS |
| Housing colour | Black |
| Surround | Coloured PC/ABS |
| Switching indication | 8 red LEDs |
| Power indication | 8 green LEDs |
| Connection | 0.3 m PUR cable |
| Connector | M8 A-coded |
| MTTF | 394 years |
| Weight | Approx. 131 g |
