Flat Capacitive Detection

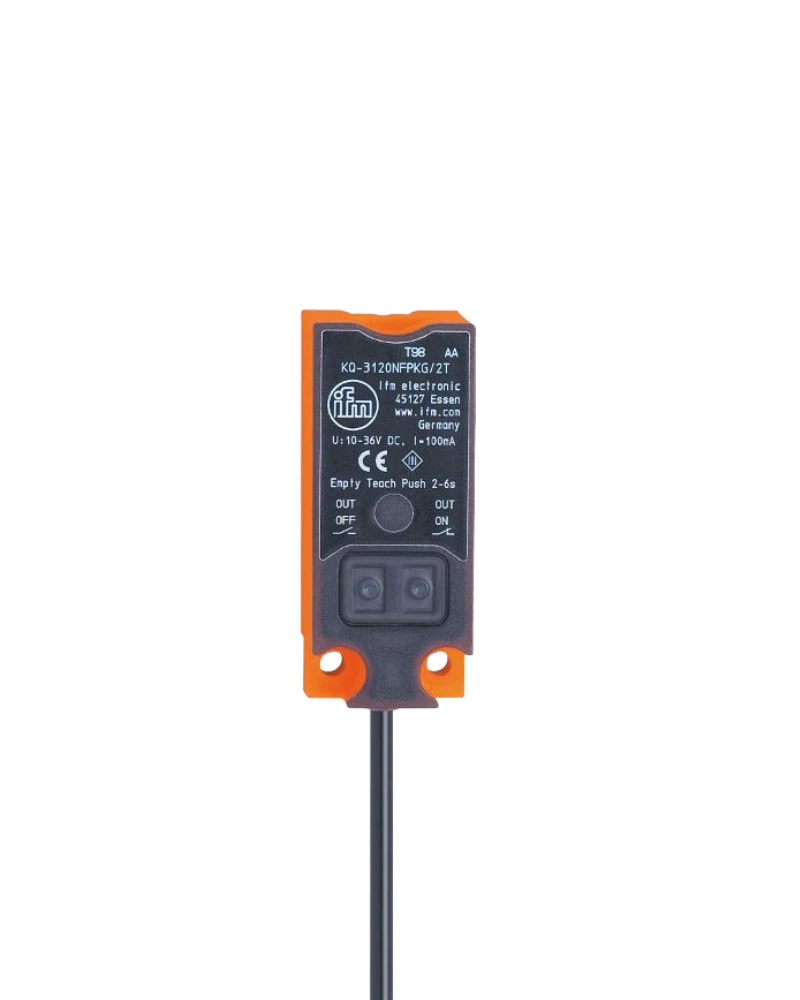

The KQ6001 uses a compact rectangular design rather than a conventional cylindrical housing. This form factor is particularly useful for installation against containers and bypass pipes. Capacitive sensing enables detection of liquids and bulk materials through suitable non-metallic walls. The target does not need to physically contact the sensor. This provides flexible installation for level-monitoring systems.

Automatic Load Detection

A major feature of the KQ6001 is its open-collector switching output with automatic load detection. The sensor can detect whether the connected load requires DC PNP or DC NPN operation. This reduces the need to stock separate PNP and NPN versions for some installations. It also simplifies replacement and machine standardisation. The output can therefore be integrated into different control architectures.

IO-Link Integration

The KQ6001 supports IO-Link for communication with modern industrial controllers and IO-Link masters. Digital parameterisation simplifies sensor configuration. Process information can be transferred without relying only on a conventional binary switching signal. Diagnostic information can support commissioning and maintenance. This makes the sensor useful for connected automation architectures.

Key Features

Rectangular capacitive sensor

Automatic PNP/NPN load detection

Open-collector output

IO-Link communication

Non-contact detection

Through-wall sensing

Compact flat housing

Liquid detection

Dry bulk detection

Electronic parameterisation

Industrial controller integration

Suitable for bypass pipes

Applications

Tank level detection

Non-metallic containers

Bypass pipe monitoring

Liquid detection

Powder monitoring

Granulate monitoring

Packaging machinery

Industrial automation

Installation Flexibility

The flat housing can be positioned directly against suitable non-metallic container walls. This can eliminate the need for direct contact between the sensor and process medium. External mounting can simplify sensor replacement and maintenance. Capacitive sensitivity should be configured for the container wall and target material. This makes the KQ6001 particularly useful for compact level-detection installations.

Control-System Flexibility

Automatic load detection provides additional flexibility during electrical installation. The same sensor can accommodate compatible PNP or NPN load arrangements. IO-Link further extends configuration and diagnostic functionality. Conventional switching operation remains useful for straightforward PLC inputs. This combination makes the KQ6001 adaptable to both conventional and connected automation systems.
