The IFM KI6000 is an adjustable capacitive sensor designed for reliable detection of solids and liquids. Its nominal sensing range is 25 mm and can be adjusted from 0.5 to 40 mm for non-flush installation. The sensor provides programmable NO/NC operation and PNP/NPN configuration through IO-Link. A 12-LED visual setting aid helps compensate for switch-point changes caused by deposits or material variations. IP65, IP67 and IP69K protection make the KI6000 suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KI6000 uses capacitive measurement to detect a wide range of materials. Its factory sensing range is 25 mm, while the adjustable range extends from 0.5 to 40 mm. The sensor can be installed non-flush and adjusted according to the application. The sensing point can be readjusted when deposits or material changes affect the process. This makes the sensor useful for reliable level and presence detection.
The KI6000 supports IO-Link communication according to revision 1.1. Communication uses COM2 at 38.4 kBaud. IO-Link provides parameterisation, switch-point adjustment, diagnostics and operating-hour information. PNP/NPN and NO/NC settings can also be configured through communication. This makes the sensor suitable for modern connected automation systems.
A 12-LED bar provides a visual indication of the switching point. Green LEDs help indicate the stability of the selected switching position. A yellow LED indicates switching status, while another green LED indicates operation. This visual feedback makes commissioning and readjustment easier. It is particularly useful when process deposits gradually change the sensing conditions.
25 mm factory sensing range
0.5–40 mm adjustable range
Capacitive sensing principle
PNP/NPN programmable
NO/NC programmable
IO-Link 1.1
COM2, 38.4 kBaud
12-LED setting aid
M30 × 1.5 threaded housing
M12 A-coded connector
IP65/IP67/IP69K protection
Short-circuit protection
Overload protection
Reverse-polarity protection
Liquid level detection
Dry bulk material detection
Plastic detection
Powder detection
Material presence detection
Tank monitoring
Conveyor applications
Industrial automation

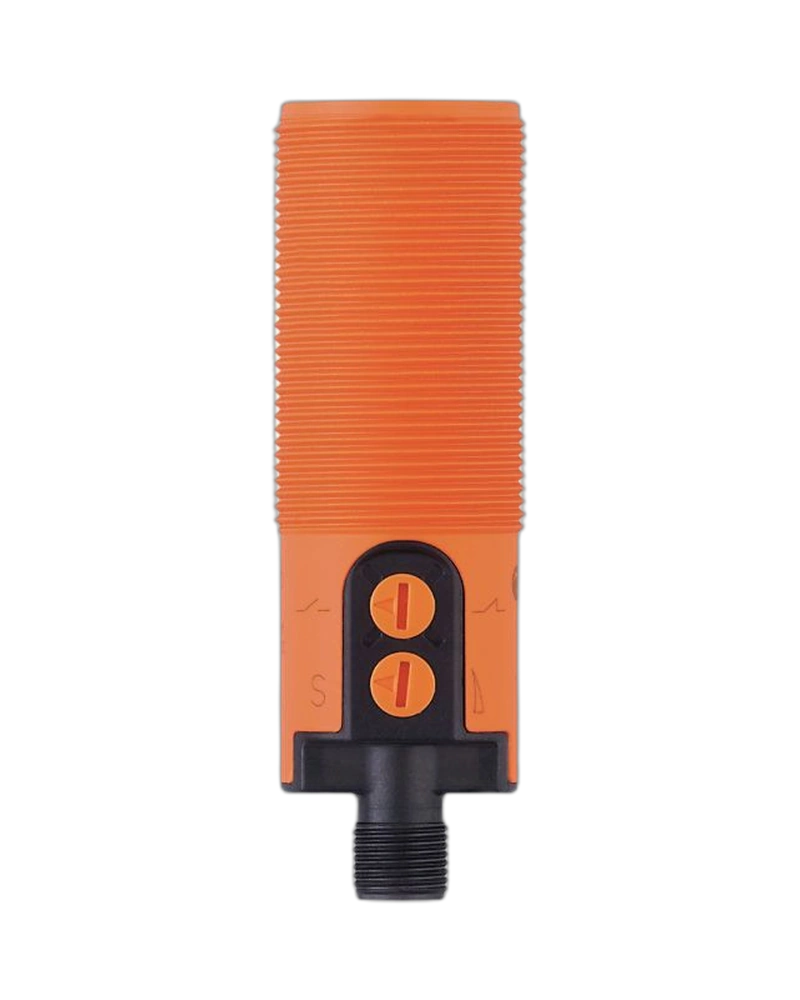

The KI6000 uses a non-flush M30 × 1.5 threaded housing. Its overall length is approximately 92 mm. The housing uses PBT, PC and POM materials. Two lock nuts are supplied for mounting. An M12 A-coded connector provides the electrical interface.
The KI6000 operates from -25 to 80 °C ambient temperature. It is rated IP65, IP67 and IP69K for demanding industrial environments. The sensor supports medium temperatures up to 110 °C. EMC performance includes immunity against electrostatic discharge, radiated fields, burst and conducted disturbances. This makes the sensor suitable for harsh machine environments.
| Specification | KI6000 |
|---|---|
| Product type | Capacitive sensor |
| Product code | KI-3250NFPKG/PL/2P/US/IO |
| Sensing principle | Capacitive |
| Factory sensing range | 25 mm |
| Adjustable sensing range | 0.5…40 mm |
| Installation | Non-flush |
| Electrical design | PNP |
| Output function | NO/NC selectable |
| IO-Link | Yes |
| IO-Link revision | 1.1 |
| Transmission type | COM2 |
| Communication speed | 38.4 kBaud |
| SIO mode | Yes |
| Device ID | 689 |
| Operating voltage | 10–30 V DC |
| Current consumption | <22 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Voltage drop | 2.5 V |
| Switching current | 200 mA |
| Switching frequency | 30 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Hysteresis | 1…15% of Sr |
| Switch-point drift | -10…10% of Sr |
| Ambient temperature | -25…80 °C |
| Medium temperature | -25…110 °C |
| Protection rating | IP65/IP67/IP69K |
| Housing | M30 × 1.5 threaded |
| Overall length | 92 mm |
| Weight | 53.8 g |
