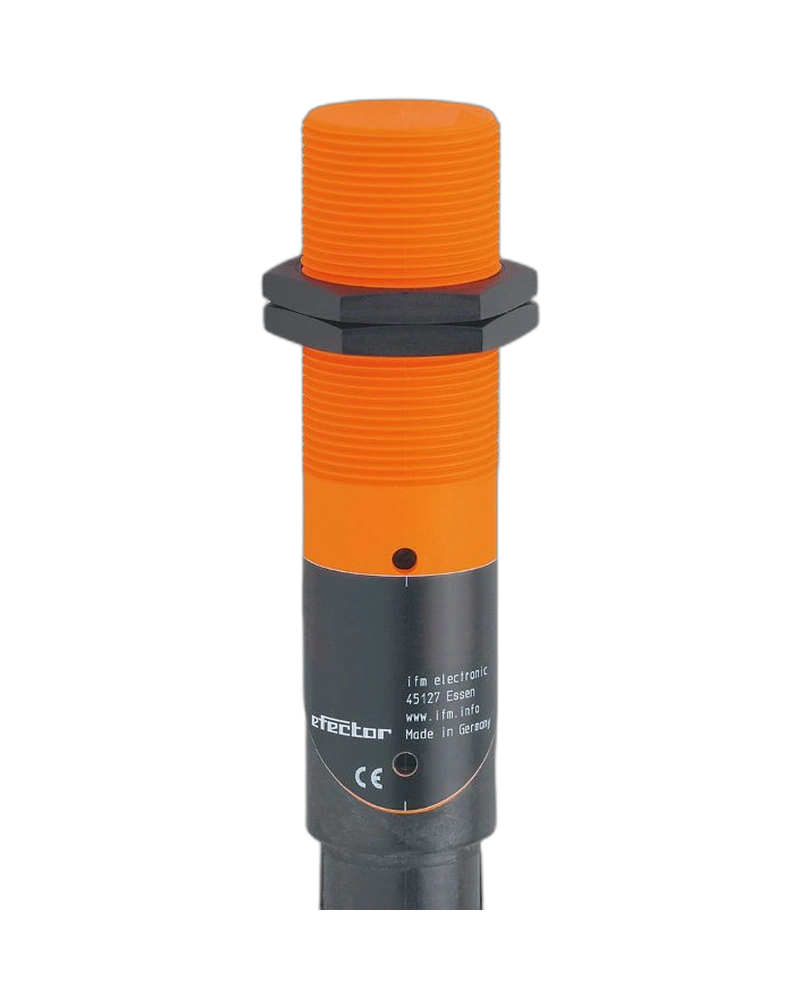

The IFM KI0024 is a non-flush capacitive sensor designed for detecting dry bulk solids and liquids. It provides a 15 mm adjustable sensing range and uses a potentiometer for sensitivity adjustment. The sensor supports selectable normally open or normally closed operation. Its 20–250 V AC/DC supply range allows direct integration into a wide range of industrial control circuits. The M30 × 1.5 threaded PBT housing and IP65 protection provide a practical industrial installation solution.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KI0024 provides a 15 mm sensing range for capacitive material detection. Its non-flush installation allows the switching point to be adjusted with a potentiometer. This adjustment is useful when process deposits or material variations affect the sensing conditions. The sensor can detect dry bulk solids and liquids. This makes it suitable for level and presence monitoring in industrial equipment.
The KI0024 operates from 20–250 V AC/DC. Its two-wire design allows direct connection to compatible control circuits. The output can be configured as normally open or normally closed. Maximum switching current is 200 mA. Switching frequency reaches 25 Hz on AC and 40 Hz on DC.
The sensor uses an M30 × 1.5 threaded PBT housing with a total length of approximately 125 mm. Connection is made through terminals rather than an M12 plug. A potentiometer provides sensing-range adjustment. Two mounting nuts and a screwdriver are supplied with the sensor. This construction provides flexible installation for bulk-material and liquid applications.
15 mm sensing range
Adjustable sensitivity
Non-flush installation
M30 × 1.5 thread
NO/NC selectable
20–250 V AC/DC
Two-wire design
200 mA output current
25 Hz AC switching
40 Hz DC switching
PBT housing
Terminal connection
IP65 protection
Function indication
Increased noise immunity
Dry bulk material detection
Liquid level detection
Tank monitoring
Silo applications
Powder detection
Granule detection
Material presence detection
Industrial automation
The KI0024 uses a potentiometer to adjust the capacitive sensing range. This allows the sensor to be tuned according to the actual installation conditions. Adjustment can also compensate for process deposits that gradually affect the sensing behaviour. The non-flush mounting arrangement provides additional flexibility during commissioning. This makes the sensor suitable for changing material conditions.
The KI0024 operates from -25 to 70 °C ambient temperature. Its IP65 protection rating provides resistance to dust and water exposure. The PBT housing provides an electrically insulating and mechanically stable construction. Increased noise immunity supports reliable operation in industrial electrical environments. The sensor is designed for general-purpose bulk-material and fluid detection.
| Specification | KI0024 |
|---|---|
| Product type | Capacitive sensor |
| Product code | KIE2015-FBOA/NI |
| Product series | KI |
| Sensing principle | Capacitive |
| Sensing range | 15 mm |
| Installation | Non-flush |
| Adjustment | Potentiometer |
| Output function | NO/NC selectable |
| Electrical design | AC/DC |
| Operating voltage | 20–250 V AC/DC |
| Wiring | 2-wire |
| Output current | 200 mA |
| AC switching frequency | 25 Hz |
| DC switching frequency | 40 Hz |
| Housing type | Cylindrical threaded |
| Thread | M30 × 1.5 |
| Overall length | 125 mm |
| Housing material | PBT |
| Sensing-face material | PBT |
| Connection | Terminal block |
| Terminal capacity | 2.5 mm² |
| Cable jacket diameter | 7–13 mm |
| Cable gland | M20 × 1.5 |
| Status indication | Function display |
| Protection rating | IP65 |
| Ambient temperature | -25…70 °C |
| Application | Dry bulk solids |
| Application | Liquids |
| Supplied accessories | 2 mounting nuts |
| Supplied tool | Screwdriver |
