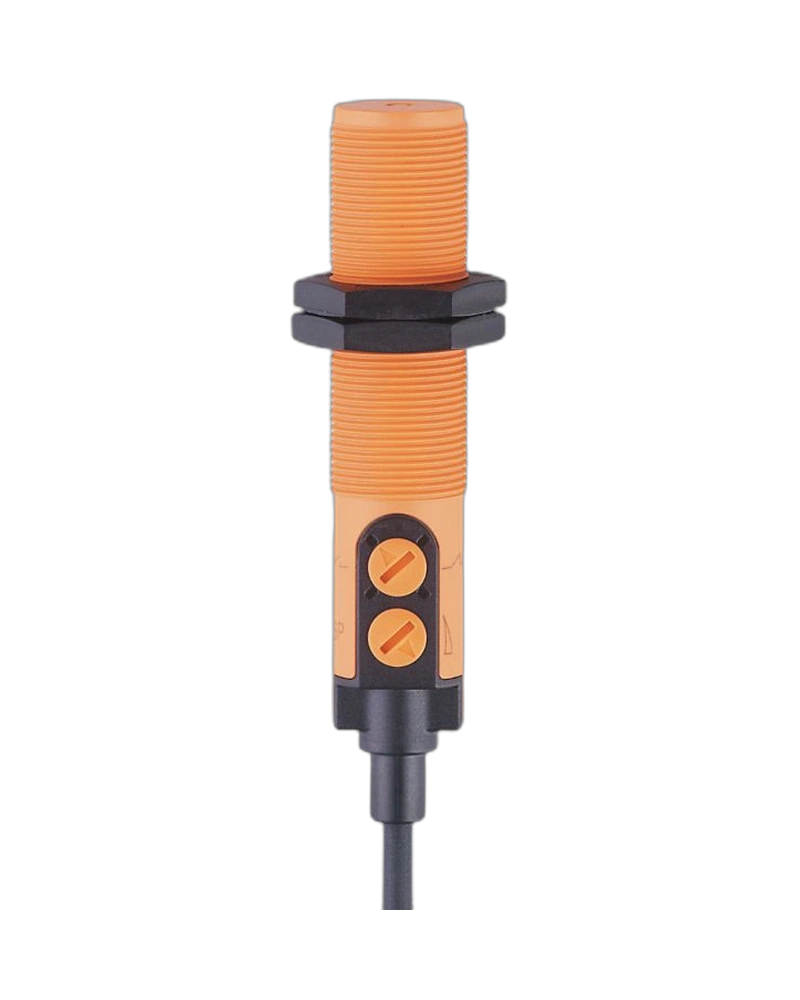

The IFM KG6001 is an adjustable M18 capacitive sensor designed for demanding level and material-detection applications. Its sensing range can be adjusted from 0.5 to 30 mm for non-flush installation. The sensor operates from 10–30 V DC and supports selectable normally-open or normally-closed PNP switching. It provides up to 200 mA load current with a switching frequency of 30 Hz. IP65, IP67 and IP69K protection support installation in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KG6001 provides an adjustable sensing range from 0.5 to 30 mm. Its non-flush configuration provides a comparatively large detection field for an M18 sensor. Sensitivity can be matched to liquids, powders and other target materials. The sensor is therefore suitable for both level and presence detection. Adjustment also helps compensate for changing material characteristics.
The sensor operates from a 10–30 V DC industrial supply. Its PNP output provides selectable normally-open or normally-closed switching. Continuous load current reaches 200 mA. The switching frequency is 30 Hz. These characteristics allow straightforward connection to PLC inputs and suitable industrial loads.
The KG6001 provides IP65, IP67 and IP69K ingress protection. Its M18 × 1 housing has an overall length of approximately 92.5 mm. The robust protection ratings make the sensor suitable for environments exposed to moisture and cleaning processes. Cable connection provides a permanently attached wiring interface. The design is particularly useful in demanding process and machine applications.
0.5–30 mm adjustable range
Non-flush installation
M18 × 1 housing
92.5 mm length
PNP output
NO/NC selectable
10–30 V DC
200 mA load current
30 Hz switching frequency
Cable connection
IP65 protection
IP67 protection
IP69K protection
Capacitive material detection
Tank level detection
Liquid monitoring
Powder detection
Granulate detection
Food-processing machinery
Packaging equipment
Material presence detection
Industrial automation
The broad adjustable sensing range allows the KG6001 to be configured for different materials and mounting distances. Capacitive sensitivity is particularly important when detecting media through suitable container walls. Correct adjustment helps distinguish the intended target from surrounding machine structures. The sensor can therefore be adapted during commissioning. This flexibility supports applications with different material dielectric properties.
IP65, IP67 and IP69K ratings provide strong environmental protection. This allows the sensor to be used in installations exposed to dust, water and high-pressure cleaning. The M18 housing keeps the installation relatively compact. A permanently attached cable provides direct machine wiring. These characteristics make the KG6001 suitable for demanding industrial level and presence detection.
| Specification | KG6001 |
|---|---|
| Product type | Capacitive sensor |
| Series | KG |
| Measuring principle | Capacitive |
| Sensing range | 0.5–30 mm |
| Range adjustment | Yes |
| Installation | Non-flush |
| Housing | Cylindrical threaded |
| Thread | M18 × 1 |
| Overall length | 92.5 mm |
| Housing material | Plastic |
| Electrical design | PNP |
| Output function | NO/NC selectable |
| Operating voltage | 10–30 V DC |
| Load current | 200 mA |
| Switching frequency | 30 Hz |
| Protection | IP65 |
| Additional protection | IP67 |
| High-pressure protection | IP69K |
| Connection | Cable |
| Detection | Non-contact |
| Liquid detection | Yes |
| Bulk-material detection | Yes |
| Powder detection | Yes |
| Level monitoring | Yes |
| Presence detection | Yes |
| Mounting type | Threaded |
| Target type | Conductive/non-conductive |
| Industrial control | PLC compatible |
| Manufacturer | IFM electronic |
| Model | KG6001 |
