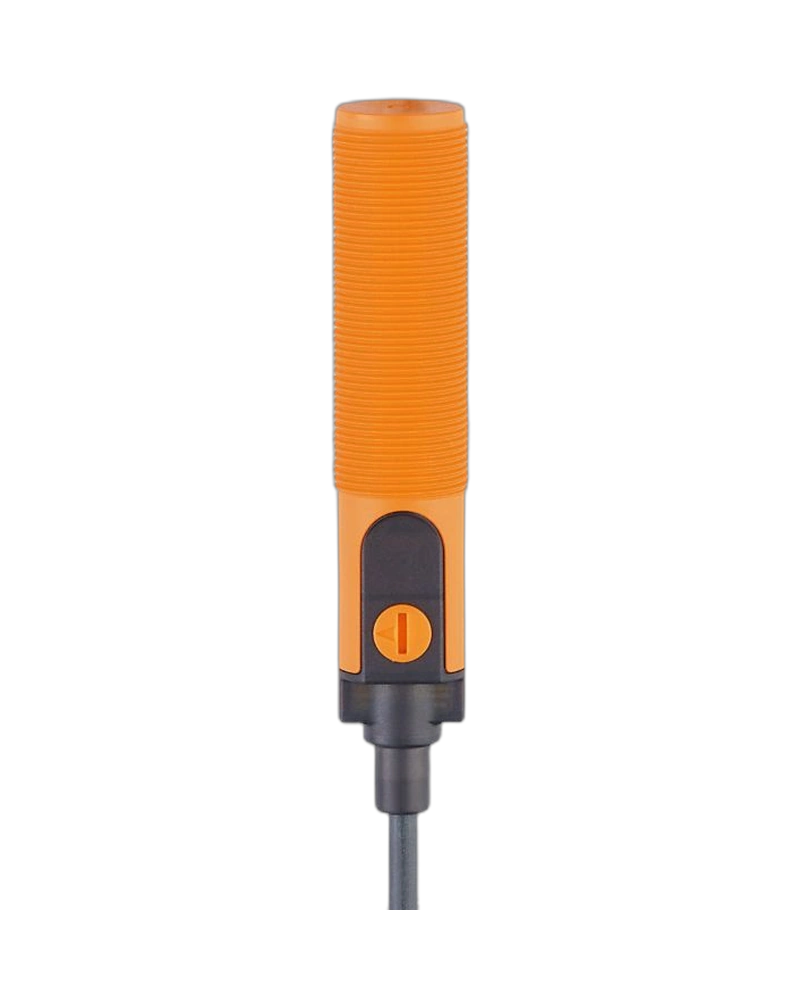

The IFM KG5305 is a quasi-flush capacitive sensor designed for position detection and level monitoring. It provides an adjustable sensing range of 0.5–9 mm with an 8 mm factory setting. The sensor uses a PNP normally-open output and supports IO-Link 1.1 communication. Its M18 × 1 threaded housing is supplied with a 2 m PUR cable and provides IP65/IP67/IP69K protection. High medium-temperature capability and robust construction make it suitable for demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KG5305 provides a sensing range from 0.5 to 9 mm. The sensing range is adjustable, with an 8 mm factory setting and a real sensing range of 8 mm ±10%. Its quasi-flush mounting arrangement allows installation in suitable machine structures. Hysteresis is specified between 1 and 15% of the real sensing range. Switch-point drift is specified from -10 to +10% of Sr.
The KG5305 supports IO-Link revision 1.1 using COM2 communication at 38.4 kBaud. IO-Link allows remote parameterisation and switching-point adjustment. The interface also provides functions such as operating-hours counting and configurable switching logic. PNP/NPN configuration can be parameterised through IO-Link. This makes the sensor suitable for digitally connected automation systems.
The sensor has an M18 × 1 threaded housing with a 92.5 mm overall length. PBT, PC and POM are used for the housing components. A 2 m PUR cable provides a three-wire electrical connection. IP65, IP67 and IP69K protection support harsh industrial environments. Two lock nuts are supplied for installation.
0.5–9 mm sensing range
8 mm factory setting
Adjustable sensing range
Quasi-flush mounting
PNP normally-open output
IO-Link 1.1
COM2, 38.4 kBaud
10–30 V DC supply
200 mA output current
30 Hz switching frequency
M18 × 1 threaded housing
2 m PUR cable
IP65/IP67/IP69K protection
Yellow switching-status LED
Short-circuit protection
Overload protection
Position detection
Level monitoring
Material presence detection
Liquid detection
Bulk-material detection
Packaging machinery
Process equipment
Industrial automation
The KG5305 operates from 10–30 V DC with current consumption below 22 mA. Its PNP output supports a permanent current of 200 mA. The maximum switching-output voltage drop is 2.5 V. Switching frequency is 30 Hz. Reverse-polarity, short-circuit and overload protection are provided.
The KG5305 operates at ambient temperatures from -25 to 80 °C. The supported medium temperature range extends from -25 to 110 °C. IP65, IP67 and IP69K protection provide strong resistance to dust, water and washdown conditions. The sensor is tested for vibration and shock according to DIN EN 60947-5-2. These characteristics make it suitable for demanding industrial installations.
| Specification | KG5305 |
|---|---|
| Product type | Capacitive sensor |
| Product code | KG-3080QBPKG/SL/1P/IO |
| Measuring principle | Capacitive |
| Sensing range | 0.5–9 mm |
| Factory setting | 8 mm |
| Real sensing range | 8 mm ±10% |
| Installation | Quasi-flush |
| Electrical design | PNP |
| Output function | Normally open |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission type | COM2 |
| Communication speed | 38.4 kBaud |
| SIO mode | Yes |
| Required master port | Class A |
| Minimum process cycle | 20 ms |
| Operating voltage | 10–30 V DC |
| Current consumption | <22 mA |
| Protection class | III |
| Reverse polarity protection | Yes |
| Voltage drop | 2.5 V |
| Continuous output current | 200 mA |
| Switching frequency | 30 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Hysteresis | 1–15% of Sr |
| Switch-point drift | -10…10% of Sr |
| Ambient temperature | -25…80 °C |
| Medium temperature | -25…110 °C |
| Protection rating | IP65/IP67/IP69K |
| Housing | M18 × 1 / L92.5 mm |
| Housing materials | PBT/PC/POM |
| Connection | 2 m PUR cable |
| Status indication | Yellow LED |
