The nominal sensing distance is 4…25 mm.
The nominal sensing distance is 4…25 mm. A switching frequency of 10 Hz.
The thermal drift Sr is < 20%, with repeat accuracy of 5%.
The output type is SCR. The operating voltage is 20 - 250 VAC.
No-load supply current is ≤12 mA and leakage current is limited to ≤ 100 µA. Maximum ripple is ≤10%.
Short-circuit protection is Yes, Automatic reset. Reverse polarity protection is Yes. Surge protection is Yes. Ingress protection is rated IP 67 NEMA 1,3,4,13.
Dimensions are M30 / L = 91 mm and the connection is 2 m PVC Cable. Weight is 180 g.
Tightening torque is 50 nm.
The operating temperature range is -25 °C…+80 °C (Non-freezing).
Storage temperature is -40 °C…+85 °C.
Sensitivity adjustment is Yes.

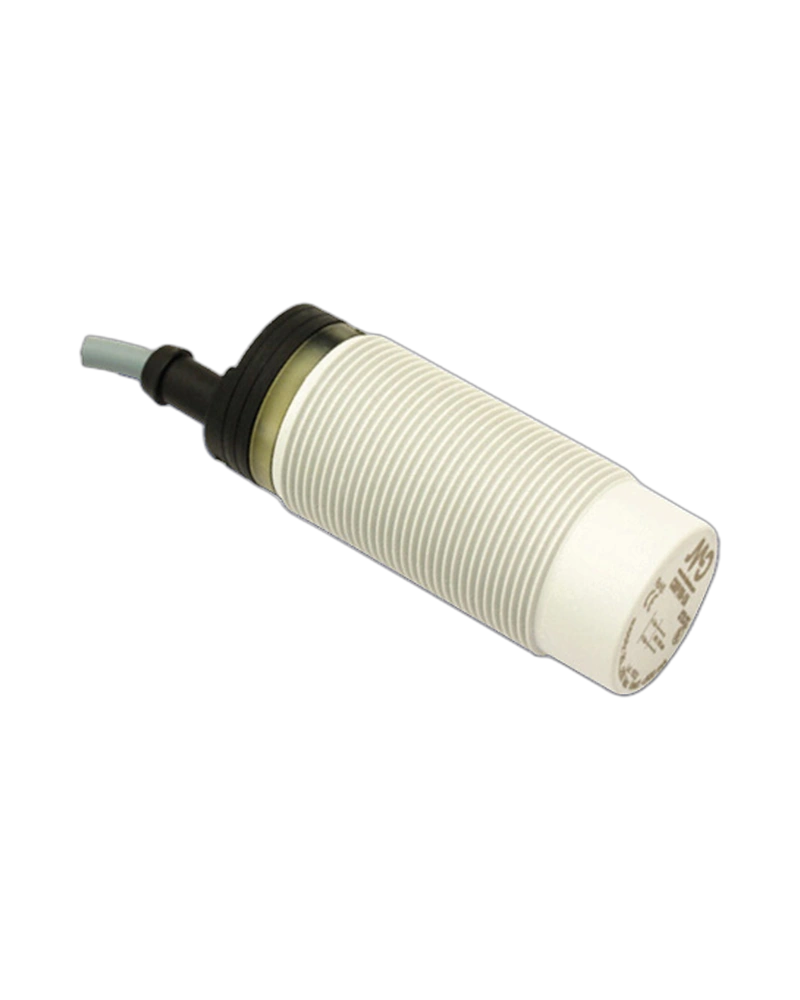

The manufacturer part number is C30P/00-2A. This model is manufactured by M.D. Micro Detectors. Installation is Unshielded.
Unshielded is Operating temperature:. Time to availability is ≤200 ms.
For electrical integration, it provides output type SCR, operating voltage 20 - 250 VAC, switching frequency 10 Hz. The physical configuration includes dimensions M30 / L = 91 mm, 2 m PVC Cable connection. It is rated IP 67 NEMA 1,3,4,13 for an operating temperature range of -25 °C…+80 °C (Non-freezing).
| Specification | Details |
|---|---|
| Model | C30P/00-2A |
| Manufacturer part number | C30P/00-2A |
| Manufacturer | M.D. Micro Detectors |
| Output type | SCR |
| Switching frequency | 10 Hz |
| Weight | 180 g |
| Tightening torque | 50 nm |
| Installation | Unshielded |
| Operating temperature | -25 °C…+80 °C (Non-freezing) |
| Dimensions | M30 / L = 91 mm |
| Connection | 2 m PVC Cable |
| Storage temperature | -40 °C…+85 °C |
| Hysteresis | ≤ 20% |
| Nominal sensing distance | 4…25 mm |
| Sensitivity adjustment | Yes |
| Thermal drift Sr | < 20% |
| Repeat accuracy | 5% |
| Degree of protection | IP 67 NEMA 1,3,4,13 |
| Time to availability | ≤200 ms |
| Short-circuit protection | Yes, Automatic reset |
| Reverse polarity protection | Yes |
| Surge protection | Yes |
| Maximum ripple | ≤10% |
| Operating voltage | 20 - 250 VAC |
| No-load supply current | ≤12 mA |
| Leakage current | ≤ 100 µA |
