The nominal sensing distance is 2…16 mm.
The nominal sensing distance is 2…16 mm. A switching frequency of 30 Hz.
The thermal drift Sr is < 20%, with repeat accuracy of 5%.
The output type is NPN. The output function is NO + NC.
The operating voltage is 10 - 40 VDC, with load current of ≤ 200 mA. No-load supply current is ≤12 mA and leakage current is limited to ≤ 100 µA.
Maximum ripple is ≤10%. Short-circuit protection is Yes, Automatic reset. Reverse polarity protection is Yes. Surge protection is Yes.
Ingress protection is rated IP 67 NEMA 1,3,4,13.
The housing material is Stainless steel. Dimensions are M30 / L = 79 mm and the connection is M12 Connector.
Weight is 150 g.
Tightening torque is 50 nm.
The operating temperature range is -25 °C…+80 °C (Non-freezing).
Storage temperature is -40 °C…+85 °C.
Sensitivity adjustment is Yes.

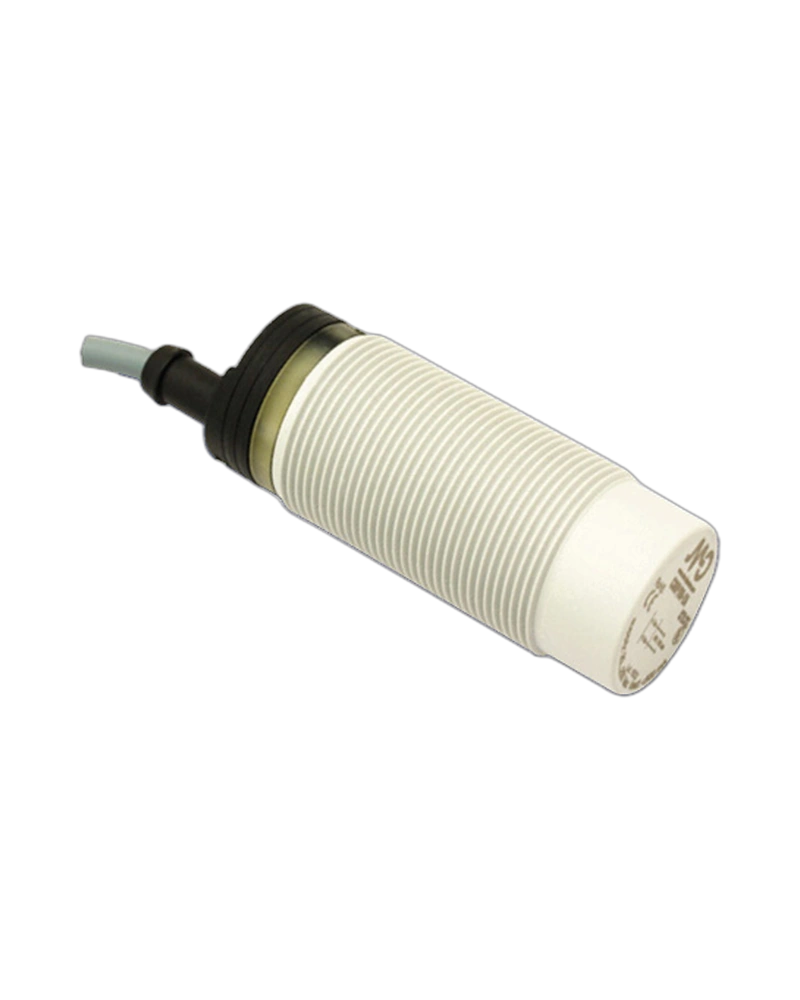

The manufacturer part number is C30M/BN-1E. This model is manufactured by M.D. Micro Detectors. Installation is Shielded.
Shielded is Operating temperature:. Time to availability is ≤200 ms.
For electrical integration, it provides output type NPN, operating voltage 10 - 40 VDC, switching frequency 30 Hz. The physical configuration includes Stainless steel housing, dimensions M30 / L = 79 mm, M12 Connector connection. It is rated IP 67 NEMA 1,3,4,13 for an operating temperature range of -25 °C…+80 °C (Non-freezing).
| Specification | Details |
|---|---|
| Model | C30M/BN-1E |
| Manufacturer part number | C30M/BN-1E |
| Manufacturer | M.D. Micro Detectors |
| Output type | NPN |
| Output function | NO + NC |
| Switching frequency | 30 Hz |
| Weight | 150 g |
| Housing material | Stainless steel |
| Tightening torque | 50 nm |
| Installation | Shielded |
| Operating temperature | -25 °C…+80 °C (Non-freezing) |
| Dimensions | M30 / L = 79 mm |
| Connection | M12 Connector |
| Storage temperature | -40 °C…+85 °C |
| Hysteresis | ≤ 20% |
| Nominal sensing distance | 2…16 mm |
| Sensitivity adjustment | Yes |
| Thermal drift Sr | < 20% |
| Repeat accuracy | 5% |
| Degree of protection | IP 67 NEMA 1,3,4,13 |
| Time to availability | ≤200 ms |
| Short-circuit protection | Yes, Automatic reset |
| Reverse polarity protection | Yes |
| Surge protection | Yes |
| Maximum ripple | ≤10% |
| Operating voltage | 10 - 40 VDC |
| Load current | ≤ 200 mA |
| No-load supply current | ≤12 mA |
| Leakage current | ≤ 100 µA |
