Explore performance details, construction highlights, applications, and technical information in one clear overview.
The nominal sensing distance is 3…12 mm.
The nominal sensing distance is 3…12 mm. A switching frequency of 10 Hz.
The thermal drift Sr is < 20%, with repeat accuracy of 5%.
The output type is SCR. The output function is No.
The operating voltage is 20-250 VAC, with load current of ≤ 500 m. No-load supply current is ≤12 mA and leakage current is limited to ≤ 100 µA.
Maximum ripple is ≤10%. Reverse polarity protection is Yes. Surge protection is Yes.
Dimensions are M18 x 1 / L = 99 mm and the connection is 2 m PVC Cable. Weight is 150 g.
Tightening torque is 2,6 nm.
Storage temperature is -40 °C…+85 °C.
Sensitivity adjustment is Yes.

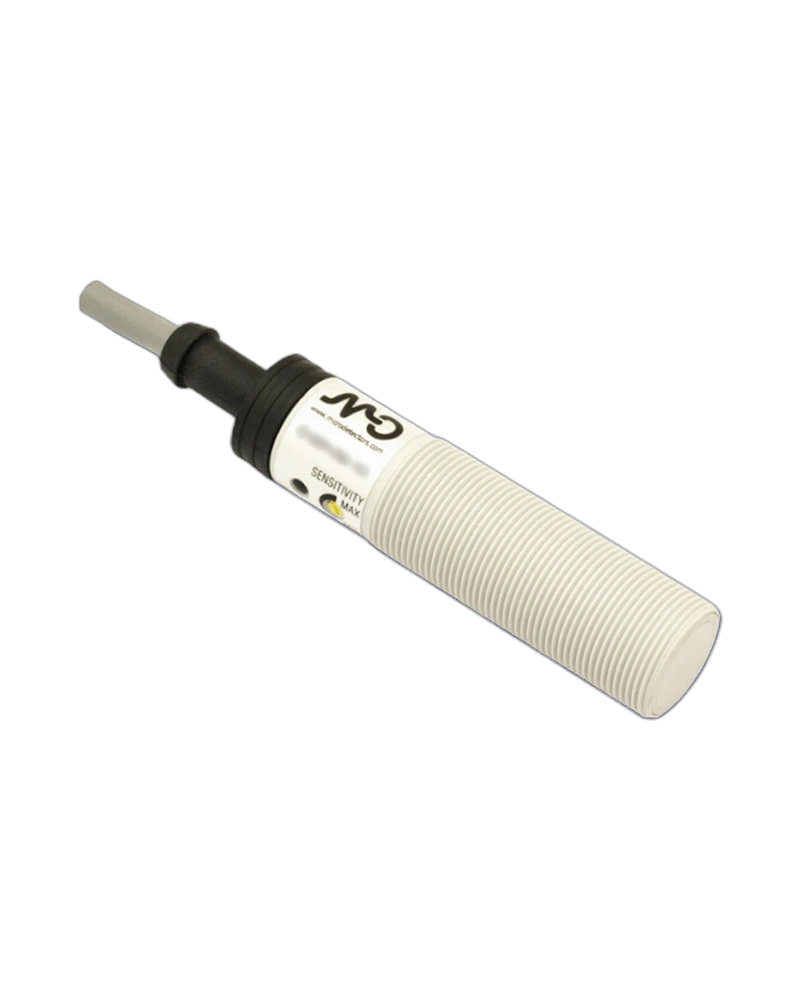

The manufacturer part number is C18P/A0-2A. This model is manufactured by M.D. Micro Detectors. Installation is Unshielded.
Unshielded is Operating temperature:. Time to availability is ≤ 200 ms.
For electrical integration, it provides output type SCR, operating voltage 20-250 VAC, switching frequency 10 Hz. The physical configuration includes dimensions M18 x 1 / L = 99 mm, 2 m PVC Cable connection.
| Specification | Details |
|---|---|
| Model | C18P/A0-2A |
| Manufacturer part number | C18P/A0-2A |
| Manufacturer | M.D. Micro Detectors |
| Output type | SCR |
| Output function | No |
| Switching frequency | 10 Hz |
| Weight | 150 g |
| Tightening torque | 2,6 nm |
| Installation | Unshielded |
| Dimensions | M18 x 1 / L = 99 mm |
| Connection | 2 m PVC Cable |
| Storage temperature | -40 °C…+85 °C |
| Hysteresis | ≤ 20% |
| Nominal sensing distance | 3…12 mm |
| Sensitivity adjustment | Yes |
| Thermal drift Sr | < 20% |
| Repeat accuracy | 5% |
| Time to availability | ≤ 200 ms |
| Reverse polarity protection | Yes |
| Surge protection | Yes |
| Maximum ripple | ≤10% |
| Operating voltage | 20-250 VAC |
| Load current | ≤ 500 m |
| No-load supply current | ≤12 mA |
| Leakage current | ≤ 100 µA |
