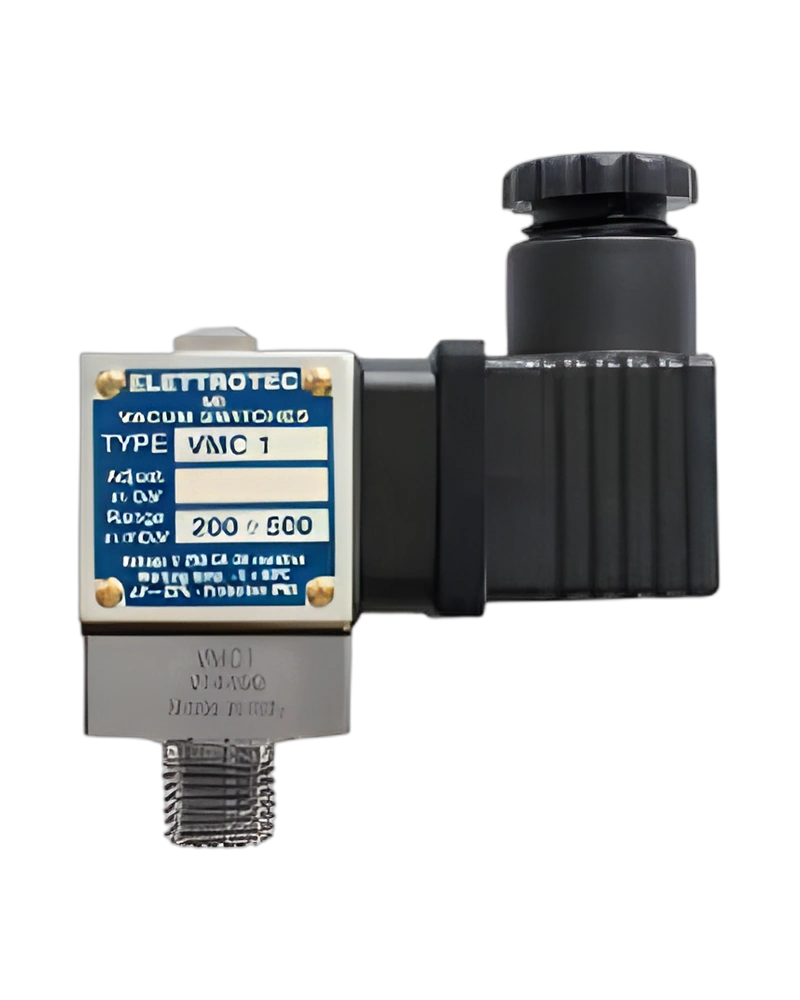

The ELETTROTEC VMC1AISSGL24- VMC - Adjustable vacuum switch with changeover contact- VMC - Adjustable vacuum switch with changeover contact is an industrial Pressure intended for professional equipment and system applications, with product-specific technical characteristics available for selection and integration. Key characteristics include Dimensions: Body 30 x 30 – Max. high 78 mm; Body material: Brass – Stainless steel AISI 316; Switch rating: 250 Vac, 24 Vdc; 30 V with “G” option / 6 (2) A; 30 mA with “G” option.

Product Overview

The VMC1AISSGL24- VMC - Adjustable vacuum switch with changeover contact is a Pressure intended for professional industrial applications.

Technical Characteristics

Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.

Key Features

• Dimensions of Body 30 x 30 – Max. high 78 mm for installation and space planning.
• Body material of Brass – Stainless steel AISI 316 for durable industrial use.
• Switch rating of 250 Vac, 24 Vdc; 30 V with “G” option / 6 (2) A; 30 mA with “G” option for application-specific selection and integration.
• Max. static pressure of 20 bar for application-specific selection and integration.
• Threads of G1/8 BSPT – G1/4 BSPT – M10 x 1 – M12 X 1.5 – G 1 /4 BSPP – G 1 /8 BSPP – 1 /4 NPT – 1 / 8 NPT for straightforward system integration.
• Adjustment range of -200 -500 mbar / -500 -900 mbar for application-specific selection and integration.
• Hysteresis of 30% of set-point for application-specific selection and integration.
• Temperature tange of -30 °C +140 °C (according to diaphragm/seal material) for application-specific selection and integration.

Applications

The VMC1AISSGL24- VMC - Adjustable vacuum switch with changeover contact can be considered for industrial systems and equipment requiring a Pressure. Final suitability should be evaluated against the complete system requirements.

Selection Considerations

Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.

Product Summary

The ELETTROTEC VMC1AISSGL24- VMC - Adjustable vacuum switch with changeover contact- VMC - Adjustable vacuum switch with changeover contact is an industrial Pressure. Selection should be based on the documented characteristics and the requirements of the intended application.
