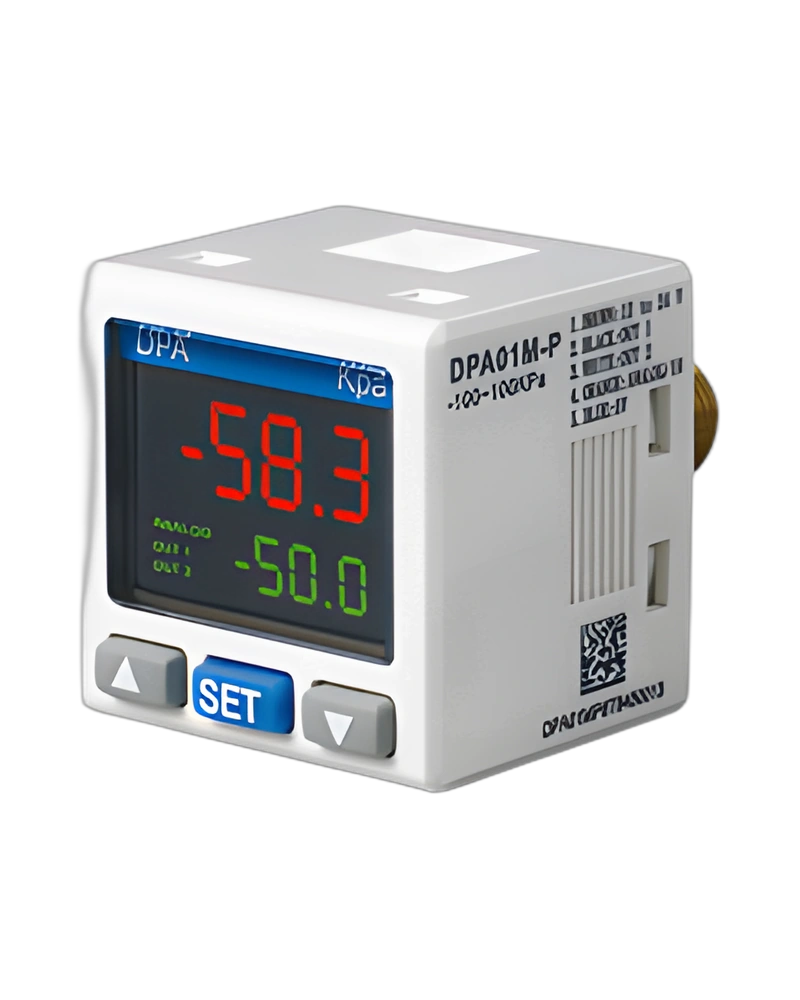

The DELTA DPA10P-P is a high-precision pressure sensor designed for industrial instrumentation applications. This model features a 1KΩ DPA main circuit with analog output ranging from 1-5 V (orange) and supports both 4-20 mA (orange) and 1-5 V (orange) signal outputs. It operates within a pressure range of -100 to 1,000 kPa and is compatible with NPN output configurations, making it ideal for precise pressure monitoring in demanding environments.
The DELTA DPA10P-P is a specialized pressure sensor engineered for industrial instrumentation systems requiring accurate pressure measurement and reliable signal transmission. This product delivers precise pressure readings from -100 to 1,000 kPa with NPN output capabilities, ensuring seamless integration into control systems across various industrial applications. Its robust design and compatibility with multiple connection types make it a versatile solution for pressure monitoring tasks where reliability and accuracy are critical.
The DELTA DPA10P-P features a 1KΩ DPA main circuit with analog output ranging from 1-5 V (orange) and supports both 4-20 mA (orange) and 1-5 V (orange) signal outputs. It operates within a pressure range of -100 to 1,000 kPa and is compatible with NPN output configurations. The sensor is available in various connection types including G, NPT, and PT threads, with an internal M5 thread for secure installation.
The DPA10P-P provides flexible output options including 1-5 V analog signals and 4-20 mA current loops. This dual-output capability allows integration with a wide range of industrial control systems and data acquisition devices, ensuring compatibility with diverse monitoring and control applications.
Available in three connection types: G (ground), NPT (national pipe thread), and PT (pressure thread). Each variant features an internal M5 thread for secure mounting, ensuring reliable installation in industrial settings.
The sensor measures pressure from -100 to 1,000 kPa, making it suitable for applications requiring both vacuum and high-pressure measurements. This wide range accommodates diverse industrial processes without the need for additional sensors.
The DELTADPA10P-P is an industrial Pressure. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| 1KΩ DPA主回路 | +12~24 V DC (+) (棕) 自載 自載 類比輸出 +1~5 (V)(橙) 輸出 1 (黑) 輸出 2 (白) DC (-) (藍) |
| DPA主回路 | +12~24 V DC (+) (棕) 自載 自載 輸出 1 (黑) 輸出 2 (白) 類比輸出 (橙) +4~20 mA 自載 DC (-) (藍) |
| DPB主回路 | +12~24 V DC (+) (棕) 負載 輸出 1 (黑) 負載 輸出 2 (白) DC (-) (藍) |
| DPA01M-G | -100 ~ 100 kPa NPN 輸出1 ~ 5 V 外孔1 / 8 G 內孔M5 |
| DPA01M-N | -100 ~ 100 kPa NPN 輸出1 ~ 5 V 外孔1 / 8 NPT 內孔M5 |
| DPA01M-P | -100 ~ 100 kPa NPN 輸出1 ~ 5 V 外孔1 / 8 PT 內孔M5 |
| DPA01N-G | -100 ~ 100 kPa NPN 輸出4 ~ 20 mA 外孔1 / 8 G 內孔M5 |
| DPA01N-N | -100 ~ 100 kPa NPN 輸出4 ~ 20 mA 外孔1 / 8 NPT 內孔M5 |
| DPA01N-P | -100 ~ 100 kPa NPN 輸出4 ~ 20 mA 外孔1 / 8 PT 內孔M5 |
| DPA10M-G | -100 ~ 1,000 kPa NPN 輸出1 ~ 5 V 外孔1 / 8 G 內孔M5 |
| DPA10M-N | -100 ~ 1,000 kPa NPN 輸出1 ~ 5 V 外孔1 / 8 NPT 內孔M5 |
| DPA10M-P | -100 ~ 1,000 kPa NPN 輸出1 ~ 5 V 外孔1 / 8 PT 內孔M5 |
| DPA10N-G | -100 ~ 1,000 kPa NPN 輸出4 ~ 20 mA 外孔1 / 8 G 內孔M5 |
| DPA10N-N | -100 ~ 1,000 kPa NPN 輸出4 ~ 20 mA 外孔1 / 8 NPT 內孔M5 |
