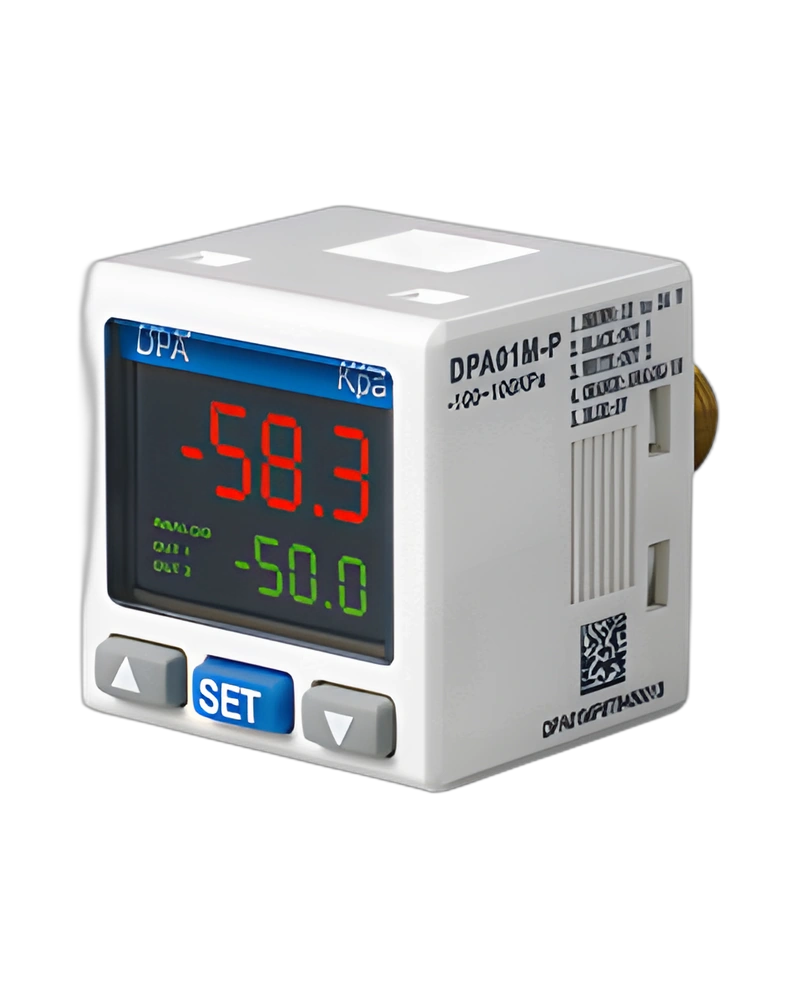

The DELTA DPA01Q-P is a precision pressure sensor designed for industrial instrumentation applications. This product delivers reliable analog output (1-5 V) and 4-20 mA signals within a robust 12-24 V DC power range. Its compact 1/8" threaded body with M5 internal thread ensures versatile installation across various industrial systems while maintaining high accuracy for pressure monitoring tasks.
The DELTA DPA01Q-P is a high-precision pressure sensor engineered for demanding industrial environments. This product provides accurate pressure measurement capabilities with a versatile output configuration, enabling seamless integration into control systems and monitoring applications. Its robust construction and reliable performance make it suitable for critical pressure monitoring tasks in manufacturing, process control, and industrial automation systems.
The DELTA DPA01Q-P features a 1KΩ DPA main circuit with +12~24 V DC power input (brown), analog output (1-5 V) (orange), and DC ground (blue). It supports both 1-5 V analog output and 4-20 mA current loop signals. The product operates within a pressure range of -100 to 100 kPa, with NPN output configuration. The body is designed with a 1/8" threaded connection (G, NPT, or PT) and an internal M5 thread for secure installation.
The DPA01Q-P offers two primary output configurations: analog (1-5 V) and 4-20 mA current loop signals. This dual-output capability allows integration with a wide range of industrial control systems, data acquisition systems, and process monitoring applications. The 4-20 mA output is particularly suitable for long-distance signal transmission with minimal interference.
The DELTA DPA01Q-P features a 1/8" threaded body with M5 internal thread, providing versatile installation options for both metric and imperial systems. The product includes color-coded terminals for easy identification and connection, ensuring quick and accurate installation in industrial environments.
This pressure sensor is ideal for applications requiring precise pressure monitoring in industrial settings, such as manufacturing processes, fluid handling systems, and process control systems. Its robust design ensures reliable performance in environments where pressure stability and accurate measurement are critical.
The DELTADPA01Q-P is an industrial Pressure. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| 1KΩ DPA主回路 | +12~24 V DC (+) (棕) 自載 自載 類比輸出 +1~5 (V)(橙) 輸出 1 (黑) 輸出 2 (白) DC (-) (藍) |
| DPA主回路 | +12~24 V DC (+) (棕) 自載 自載 輸出 1 (黑) 輸出 2 (白) 類比輸出 (橙) +4~20 mA 自載 DC (-) (藍) |
| DPB主回路 | +12~24 V DC (+) (棕) 負載 輸出 1 (黑) 負載 輸出 2 (白) DC (-) (藍) |
| DPA01M-G | -100 ~ 100 kPa NPN 輸出1 ~ 5 V 外孔1 / 8 G 內孔M5 |
| DPA01M-N | -100 ~ 100 kPa NPN 輸出1 ~ 5 V 外孔1 / 8 NPT 內孔M5 |
| DPA01M-P | -100 ~ 100 kPa NPN 輸出1 ~ 5 V 外孔1 / 8 PT 內孔M5 |
| DPA01N-G | -100 ~ 100 kPa NPN 輸出4 ~ 20 mA 外孔1 / 8 G 內孔M5 |
| DPA01N-N | -100 ~ 100 kPa NPN 輸出4 ~ 20 mA 外孔1 / 8 NPT 內孔M5 |
| DPA01N-P | -100 ~ 100 kPa NPN 輸出4 ~ 20 mA 外孔1 / 8 PT 內孔M5 |
| DPA10M-G | -100 ~ 1,000 kPa NPN 輸出1 ~ 5 V 外孔1 / 8 G 內孔M5 |
| DPA10M-N | -100 ~ 1,000 kPa NPN 輸出1 ~ 5 V 外孔1 / 8 NPT 內孔M5 |
| DPA10M-P | -100 ~ 1,000 kPa NPN 輸出1 ~ 5 V 外孔1 / 8 PT 內孔M5 |
| DPA10N-G | -100 ~ 1,000 kPa NPN 輸出4 ~ 20 mA 外孔1 / 8 G 內孔M5 |
| DPA10N-N | -100 ~ 1,000 kPa NPN 輸出4 ~ 20 mA 外孔1 / 8 NPT 內孔M5 |
