Product Overview

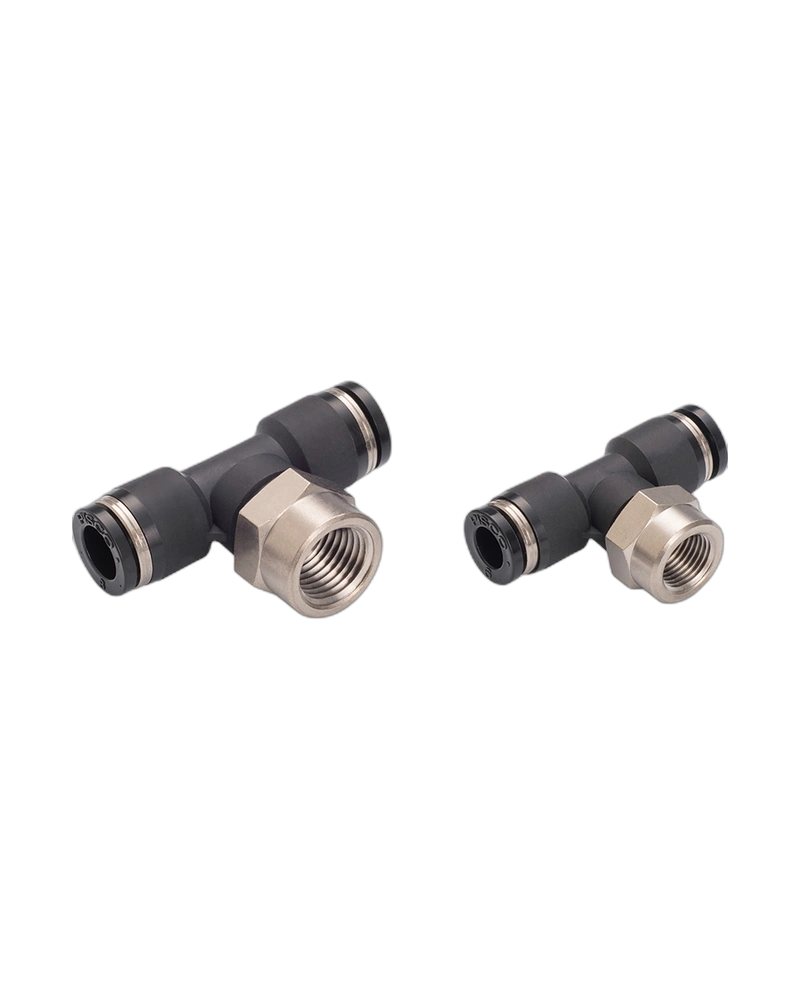

The Tube Fitting T (PB) Female Thread is a precision pneumatic connection designed for reliable fluid transfer in industrial piping systems. It provides a secure, threaded interface for connecting tubing or hoses to pneumatic components, ensuring stable performance under varying operational conditions. This fitting is suitable for air and water applications—though water use is conditional and not recommended for continuous or high-risk environments.

Construction and Materials

The fitting features PBT (polybutylene terephthalate) resin for its primary non-metallic components, a material known for durability in general environmental conditions. The metal portion of the fitting is constructed from brass with an electroless nickel plating layer, which enhances corrosion resistance and provides long-term performance in humid or mildly aggressive settings.

Configuration and Connections

The connection interface is female threaded, designed to mate with male-threaded components such as pipes or hoses. This configuration ensures a secure, leak-free joint when properly tightened. The thread type and dimensions are standardized for compatibility with common pneumatic systems, though exact thread specifications are not provided in the product data.

Operating Characteristics

The fitting is rated for a maximum operating pressure of 1.0MPa and can handle a maximum vacuum of -100kPa. It operates effectively within a temperature range of 0 to 60℃, with no freezing allowed during use. Water admission is conditionally permitted, meaning it should only be used in controlled environments where water exposure is acceptable and not continuous or high-risk.

Sizes and Options

The Tube Fitting T (PB) Female Thread is available in a range of models to suit different system requirements. While specific sizes, colors, or variants are not listed in the provided data, the product line is designed to offer flexibility across various pneumatic applications. All units share consistent material and performance characteristics as defined by the technical specifications.

Installation and Integration

Installation requires proper screw tightening to achieve a secure seal. The dimensional reference shown in the specifications applies only after full screw tightening and serves as a guide for alignment and fit. No additional integration points or mounting hardware are specified, but the threaded interface allows direct connection to standard male-threaded components.
