Explore performance details, construction highlights, applications, and technical information in one clear overview.

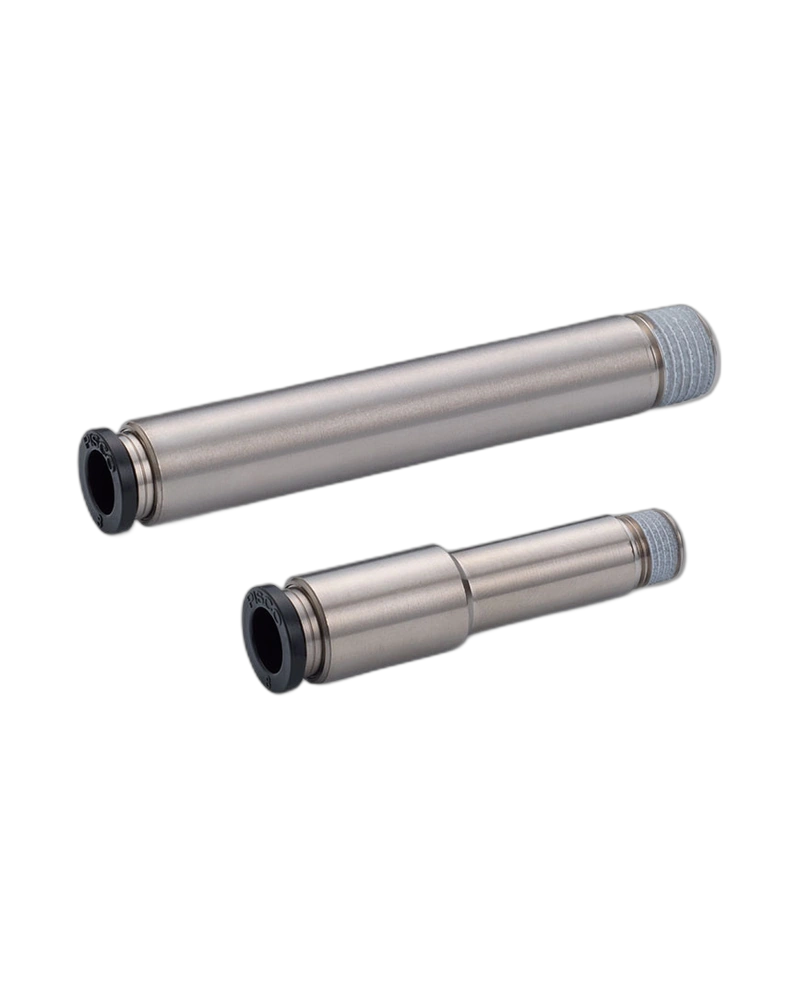

The Tube Fitting Long is a push-in fitting designed specifically for cooling circuits inside molds. It provides a reliable and secure connection for internal cooling lines, enabling efficient heat transfer and improved mold performance. Its long design makes it ideal for applications where extended reach is required, such as in deep or complex mold cavities.
The main body of the fitting is constructed from brass with an electroless nickel plating layer, which enhances corrosion resistance and ensures durability under typical industrial conditions. The seal component is made from NBR (nitrile rubber), a material commonly used for sealing applications, though it has limited ozone resistance.
The fitting features a push-in connection system that allows quick installation without the need for threading tools. It is compatible with taper pipe threads R1/8 and R1/4, enabling seamless integration into standard piping systems. An internal hex socket is provided for tightening using a hex key, ensuring precise alignment during installation.
The fitting is rated for a maximum operating pressure of 1.0MPa and can handle a maximum vacuum of -100kPa. It operates within a temperature range of 0
| Specification | Details |
|---|---|
| Fluid medium | Air, Water (Conditional*) |
| Max. operating pressure | 1.0MPa |
| Max. vacuum | -100kPa |
| Operating temp. range | 0
