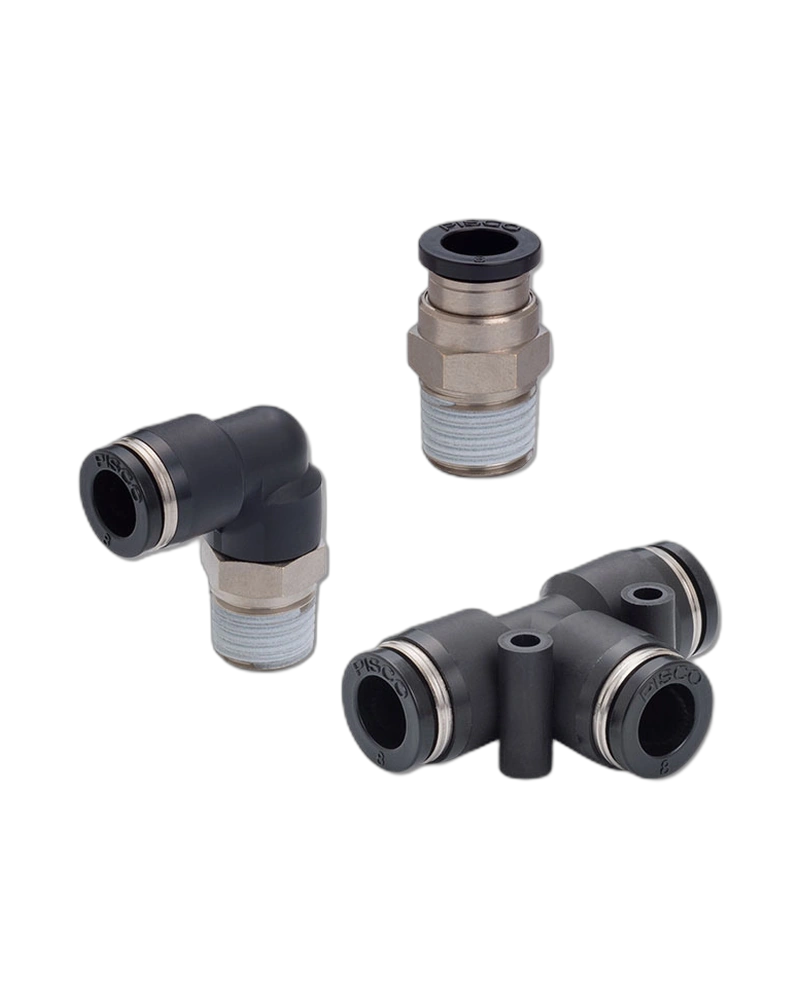

The Tube Fitting EG is a specialized tube fitting designed for environments where static electricity poses a risk. Its primary purpose is to provide a safe, reliable connection in industrial settings that require electrostatic dissipation, such as manufacturing and assembly lines where static buildup could lead to equipment damage or safety hazards.
The fitting features a static dissipative resin body made from an antistatic resin, with surface resistance ranging from 10⁴ to 10⁷ Ω. This ensures effective dissipation of static charges. The main metal components are constructed from brass and coated with electroless nickel plating for enhanced corrosion resistance and durability.
The Tube Fitting EG connects via standard tube interfaces, designed to mate directly with compatible tubing systems. It incorporates an NBR (nitrile butadiene rubber) seal that provides a reliable barrier against fluid leakage under normal operating conditions.
This fitting is rated for operation with air as the fluid medium. It can withstand a maximum operating pressure of 0.6 MPa and a maximum vacuum of -100 kPa. The operating temperature range is from 0 to 40°C, ensuring performance within non-freezing conditions.
The Tube Fitting EG is available in standard configurations for general industrial use. No color variants are specified; all units are manufactured with a consistent, functional finish suitable for cleanroom and high-static-control environments.
Installation requires alignment of the fitting’s tube interface with the mating component. The design supports direct integration into existing pneumatic or fluid transfer systems without additional adapters or modifications.
| Specification | Details |
|---|---|
| Fluid medium | Air |
| Max. operating pressure | 0.6MPa |
| Max. vacuum | -100kPa |
| Operating temp. range | 0 to 40℃ (No freezing) |
| Main resin material | Static dissipative resin Electrostatic dissipative resin |
| Main metal material | Brass with electroless nickel plating |
