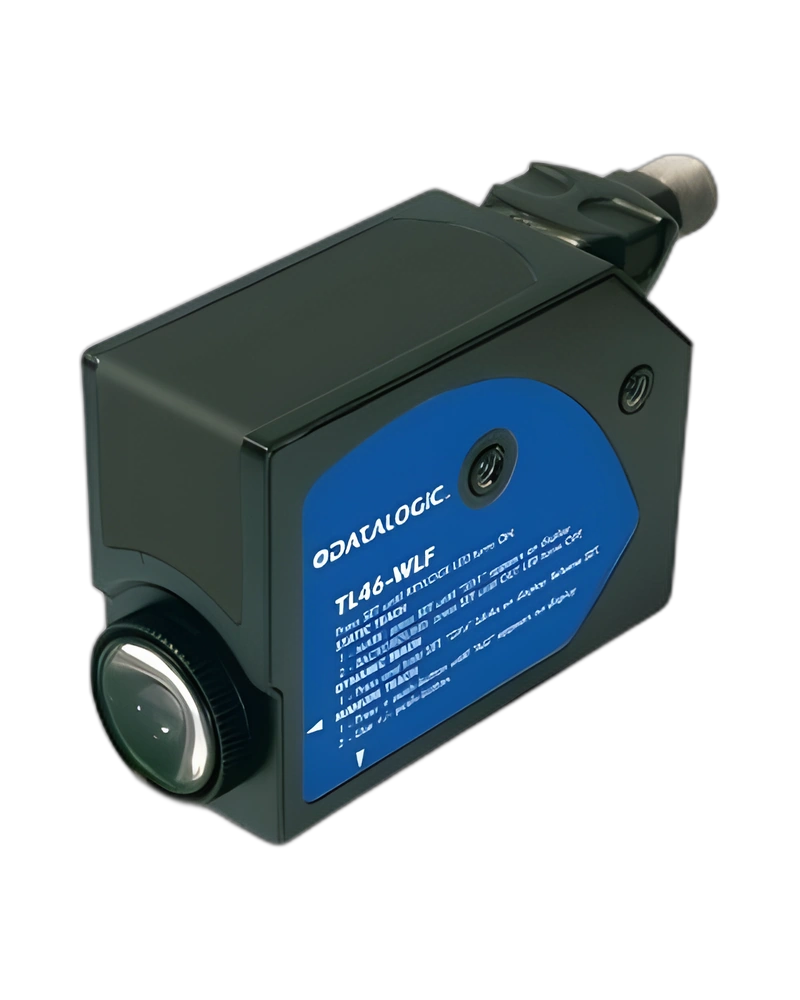

The TL46-WL-815 - 954601020 - TL46 Contrast Photoelectric Sensors is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
The Datasensing TL46-WL-815 - 954601020 - TL46 Contrast Photoelectric Sensors are engineered for high-precision industrial detection. These sensors provide reliable operation across a wide temperature range (-10°C to +55°C) and feature robust mechanical protection (IP67).
The documented configuration includes Response time: 0,025 (20 kHz); Nominal sensing distance: 12mm; Emission: LED RGB; Contrast mark detection: Contrast mark detection.
The documented configuration includes Output voltage drop: ≤2V; Output type: NPN/PNP - Dark/Light sel., 0-5 V; Operating Voltage: 10…30VDC; Switching frequency: 20kHz; No-Load supply current: ≤ 50mA (≤ 85mA bargraph ON) (≤ 55mA barghapy OFF in normal function); Load current: ≤100mA; Impulsive Overvoltage Protection: Yes; Impulsive Overvoltage Protection: Insulation resistance.
The documented configuration includes Spot dimension: 1,5 x 5mm; Dimensions: 32x60x82; Storage temperature: - 20°C…+70°C; Operating Temperature: - 10°C…+ 55°C; Mechanical Protection: IP67; Storage temperature: 20°C…+70°C; Operating Temperature: 10°C…+ 55°C; Insulation resistance: >20 MΩ 500 Vdc, between electronics and housing.
The documented configuration includes Short-circuit protection: YES; Reverse Polarity Protection: Yes; Housing material: Metal - Aluminium / Glass; Active Head Material: Glass; Diameter/Dimension: Cubic; Short-circuit protection: Reverse Polarity Protection; Material: Housing material; Active Head Material: Storage temperature.
The documented configuration includes >20 MΩ 500 Vdc, between electronics and housing: Contact resistance.
The documented configuration includes Function Principle: Contrast mark detection; Functions: Contrast mark detection; Application: Function Principle.
The documented configuration includes Connections: M12 plug; Max ripple content: ≤ 2Vpp; Interference to external light: according to EN 60947-5-2 : 2020; Contact resistance: 500 Vac 1 min., between electronics and housing; Shocks and vibrations: 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6); 5 different models: basic, standard, enhanced, low jitter, color mode.
| Feature | Specification |
|---|---|
| Output voltage drop | ≤2V |
| Spot dimension | 1,5 x 5mm |
| Output type | NPN/PNP - Dark/Light sel., 0-5 V |
| Response time | 0,025 (20 kHz) |
| Operating Voltage | 10…30VDC |
| Dimensions | 32x60x82 |
| Connections | M12 plug |
| Storage temperature | - 20°C…+70°C |
| Operating Temperature | - 10°C…+ 55°C |
| Mechanical Protection | IP67 |
| Storage temperature | 20°C…+70°C |
| Operating Temperature | 10°C…+ 55°C |
| Nominal sensing distance | 12mm |
| Switching frequency | 20kHz |
| No-Load supply current | ≤ 50mA (≤ 85mA bargraph ON) (≤ 55mA barghapy OFF in normal function) |
| Load current | ≤100mA |
| Max ripple content | ≤ 2Vpp |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
| Impulsive Overvoltage Protection | Yes |
| Impulsive Overvoltage Protection | Insulation resistance |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Housing material | Metal - Aluminium / Glass |
| Active Head Material | Glass |
| Diameter/Dimension | Cubic |
| Short-circuit protection | Reverse Polarity Protection |
| Material | Housing material |
| Active Head Material | Storage temperature |
| Function Principle | Contrast mark detection |
| Functions | Contrast mark detection |
| Emission | LED RGB |
| Application | Function Principle |
| Contrast mark detection | Contrast mark detection |
| >20 MΩ 500 Vdc, between electronics and housing | Contact resistance |
| 5 different models | basic, standard, enhanced, low jitter, color mode |
