IFM E21320 is a compact fibre optic diffuse reflection sensor designed for industrial object detection. It features an angled M3 sensing head and a 0.5 mm fibre core for compact sensing applications. The sensor provides 10 mm range with OBF, 260 mm with OCF High Power and 30 mm with OO50. Its 2 m fibre length and 1 mm minimum bending radius provide excellent flexibility for confined installations. The product also includes an OCF adapter for integration with the compatible amplifier system.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E21320 operates using the diffuse reflection sensing principle and is intended for industrial environments. It detects objects through reflected optical energy received through the fibre assembly. The sensor is compatible with OBF, OCF and OO50 fibre-optic amplifiers. It provides 10 mm range with OBF, 260 mm with OCF High Power and 30 mm with OO50. This makes it particularly suitable for compact short-range detection applications.

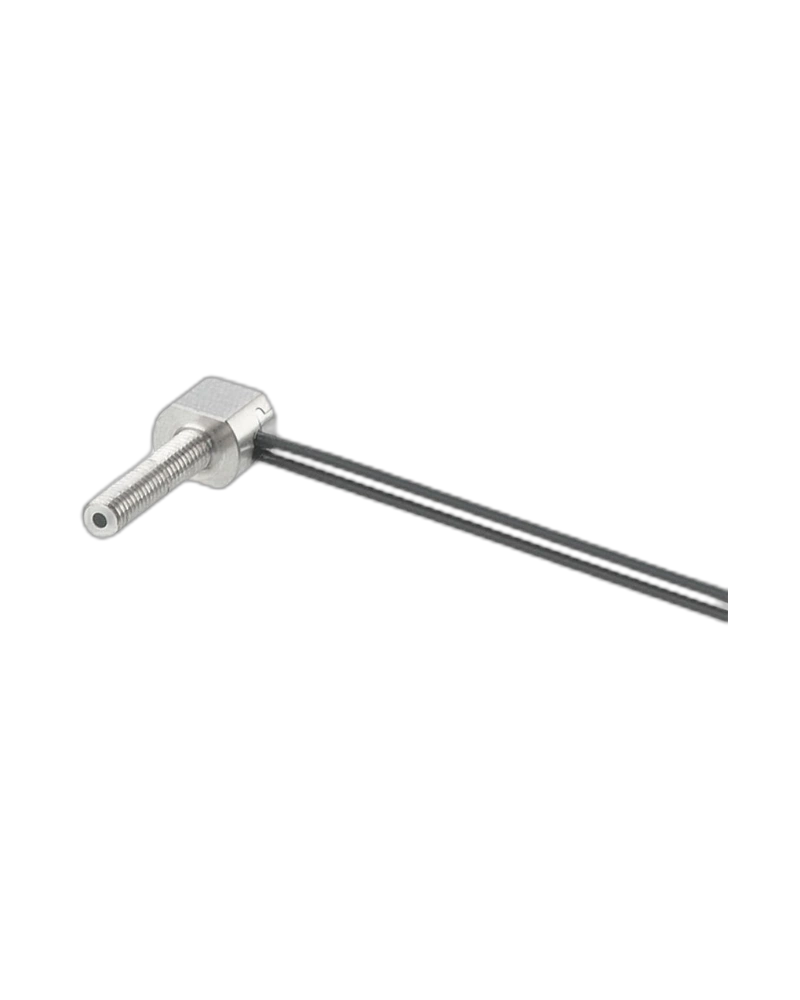

The sensor uses an angled M3 sensing head with a length of 18.5 mm. The compact threaded head provides a practical mechanical interface for machine installation. Its angled orientation can help position the sensing point around machine components and restricted areas. The small 0.5 mm fibre core supports compact optical sensing applications. This arrangement is useful where space around the detection point is extremely limited.
E21320 has a 2000 mm total fibre length and a minimum bending radius of only 1 mm. This allows the fibre to be routed through very tight machine spaces. The fibre uses PMMA material, while the fibre head is stainless steel 303 / 1.4305 and the sheath is PE. Two M3 hexagon nuts and two tooth lock washers are supplied. An OCF adapter is also included for amplifier connection, while the E20600 cutter is available as an optional accessory.
Diffuse reflection sensing
Compact angled M3 sensing head
260 mm OCF High Power range
30 mm OO50 range
2000 mm fibre length
1 mm minimum bending radius
0.5 mm fibre core
PMMA fibre
Stainless-steel fibre head
OCF adapter included
Small-part detection
Compact machine sensing
Object presence detection
Packaging machinery
Assembly automation
Conveyor systems
Material handling
Restricted-space sensing
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21320 |
| Product Type | Fibre Optic Diffuse Reflection Sensor |
| Product Designation | FT-11-EPV-O3/F2x0,5/2m |
| Function Principle | Diffuse reflection sensor |
| Application | Industrial environments |
| Amplifier Compatibility | OBF / OCF / OO50 |
| OBF Range | 10 mm |
| OCF High Power Range | 260 mm |
| OO50 Range | 30 mm |
| Ambient Temperature | -40...70°C |
| Weight | 31.1 g |
| Sensing Head Version | Angled |
| Sensing Head Thread | M3 |
| Sensing Head Length | 18.5 mm |
| Total Fibre Length | 2000 mm |
| Minimum Bending Radius | 1 mm |
| Core Diameter | 0.5 mm |
| Fibre Material | PMMA |
| Fibre Head Material | Stainless steel 303 / 1.4305 |
| Fibre Sheath Material | PE |
| Supplied Nuts | 2 × M3 |
| Supplied Washers | 2 × tooth lock washers |
| Included Adapter | 1 × OCF adapter |
| Optional Accessory | Fibre optic cutter E20600 |
| Pack Quantity | 1 pc |
