IFM E21324 is a fibre optic diffuse reflection sensor designed for object detection in industrial automation and robotic applications. It features a straight M3 sensing head and a 2000 mm fibre optic assembly. The sensor uses a bending-resistant design for flexible routing in compact machine installations. It is compatible with OBF, OO50 and OCF fibre optic amplifiers. The robust PMMA, stainless-steel and PE construction supports dependable operation in industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E21324 detects objects using the diffuse reflection principle. The sensor receives reflected optical energy from the target and works with a compatible fibre optic amplifier. This arrangement provides a compact detection solution without requiring a separate reflector at the target location. It is particularly useful for detecting objects within a defined machine sensing area. The design supports reliable detection for industrial automation applications.

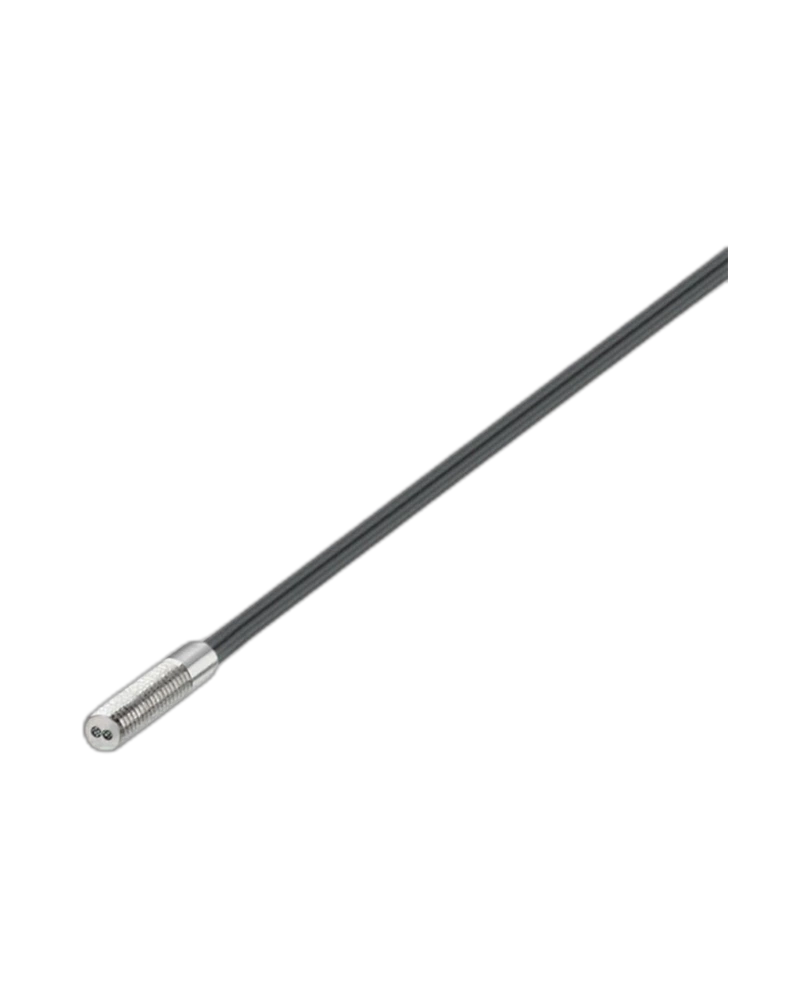

The sensing head uses a straight configuration with an M3 sensing head thread. This compact arrangement allows installation in areas where space is limited. The straight sensing head provides convenient orientation toward the target. The stainless-steel sensing head contributes to mechanical durability. The compact construction makes the sensor practical for machine builders and automation integrators.
The 2000 mm fibre assembly allows the sensing point to be positioned away from the amplifier. The fibre has a minimum bending radius of approximately 5 mm, allowing flexible routing around machine components. PMMA is used as the fibre material, while PE provides the protective sheath. The stainless-steel fibre head provides additional mechanical strength. This combination is suitable for industrial environments and robotic applications.
The sensor can be used with OBF, OO50 and OCF fibre optic amplifier types. Its fibre range is approximately 10 mm with OBF, 30 mm with OO50 and 190 mm with OCF High Power. This allows users to select the amplifier according to the required sensing distance. The flexible amplifier compatibility makes the E21324 suitable for different automation layouts.
Diffuse reflection sensing
FT-11-EPA-M3/F0.5x1/2m
Straight sensing head
M3 sensing head thread
2000 mm total length
Minimum bending radius approximately 5 mm
PMMA fibre material
Stainless-steel fibre head
PE fibre sheath
OBF, OO50 and OCF compatibility
Bending-resistant construction
Industrial and robotic use
Object detection
Parts detection
Machine automation
Robotic applications
Conveyor systems
Assembly machinery
Production lines
Material handling
Small-component detection
Industrial monitoring
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21324 |
| Product Type | Fibre Optic Diffuse Reflection Sensor |
| Product Designation | FT-11-EPA-M3/F0.5x1/2m |
| Function Principle | Diffuse reflection sensor |
| Compatible Amplifiers | OBF, OO50, OCF |
| OBF Range | 10 mm |
| OO50 Range | 30 mm |
| OCF High Power Range | 190 mm |
| Ambient Temperature | -40 to 70 °C |
| Sensing Head Version | Straight |
| Sensing Head Thread | M3 |
| Total Length | 2000 mm |
| Minimum Bending Radius | 5 mm |
| Core Diameter | 4 × 0.25 mm |
| Fibre Material | PMMA |
| Fibre Head Material | Stainless steel 1.4305 / 303 |
| Fibre Sheath Material | PE |
| Weight | 30.3 g |
| Supplied Nuts | 2 × M3 hexagon nuts |
| Supplied Washers | 2 × tooth lock washers |
| Optional Accessory | Fibre optic cutter E20600 |
| Pack Quantity | 1 pc |
