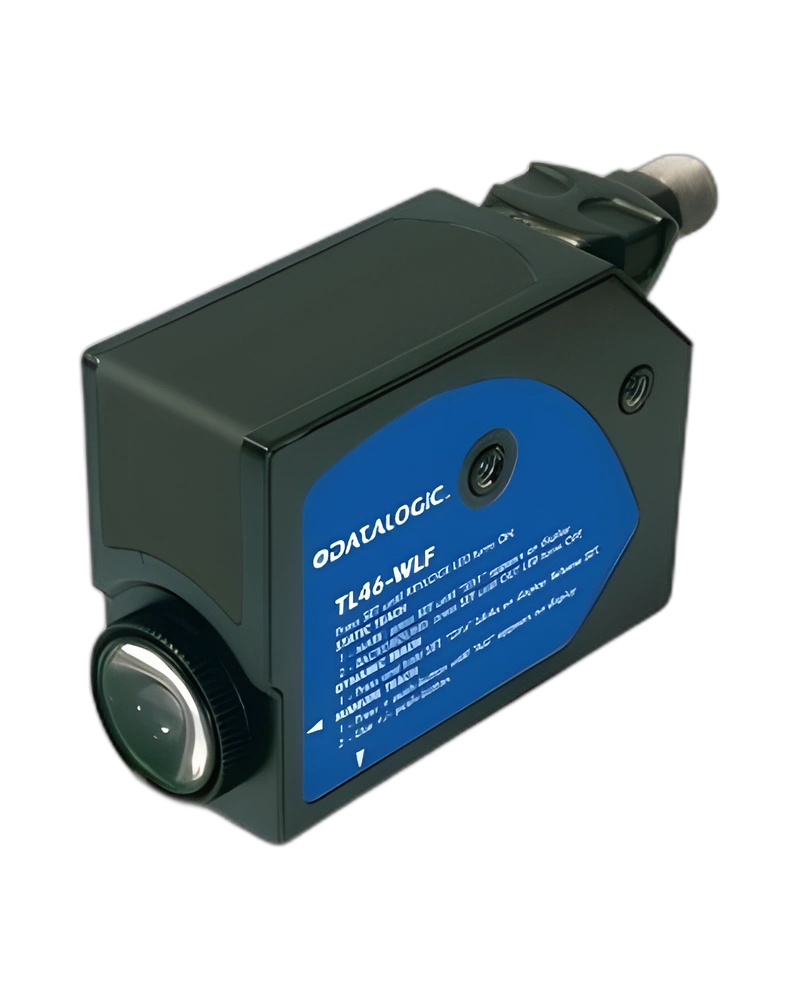

The TL46-W-815 - 954601000 - TL46 Contrast Photoelectric Sensors is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
Engineered for high-speed applications, this sensor delivers low jitter performance and robust environmental resilience. Its compact size and IP67 rating make it suitable for harsh industrial settings.
Optimized for precise object detection in machinery, assembly lines, and automation systems where reliability and speed are critical.
The documented configuration includes Response time: 0,033 (15kHz); Nominal sensing distance: 12mm; Emission: LED RGB; Contrast mark detection: Contrast mark detection.
The documented configuration includes Output voltage drop: ≤2V; Output type: NPN/PNP - Dark/Light sel., 0-5 V; Operating Voltage: 10…30VDC; Switching frequency: 15kHz; No-Load supply current: ≤ 50mA; Load current: ≤100mA; Impulsive Overvoltage Protection: Yes; Impulsive Overvoltage Protection: Insulation resistance.
The documented configuration includes Spot dimension: 1,5 x 5mm; Dimensions: 32x60x82; Storage temperature: - 20°C…+70°C; Operating Temperature: - 10°C…+ 55°C; Mechanical Protection: IP67; Storage temperature: 20°C…+70°C; Operating Temperature: 10°C…+ 55°C; Insulation resistance: >20 MΩ 500 Vdc, between electronics and housing.
The documented configuration includes Short-circuit protection: YES; Reverse Polarity Protection: Yes; Housing material: Metal - Aluminium / PMMA; Active Head Material: Glass; Diameter/Dimension: Cubic; Short-circuit protection: Reverse Polarity Protection; Material: Housing material; Active Head Material: Storage temperature.
The documented configuration includes >20 MΩ 500 Vdc, between electronics and housing: Contact resistance.
The documented configuration includes Function Principle: Contrast mark detection; Functions: Contrast mark detection; Application: Function Principle.
The documented configuration includes Connections: M12 plug; Max ripple content: ≤ 2Vpp; Interference to external light: according to EN 60947-5-2 : 2020; Contact resistance: 500 Vac 1 min., between electronics and housing; Shocks and vibrations: 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6); 5 different models: basic, standard, enhanced, low jitter, color mode.
| Feature | Specification |
|---|---|
| Output voltage drop | ≤2V |
| Spot dimension | 1,5 x 5mm |
| Output type | NPN/PNP - Dark/Light sel., 0-5 V |
| Response time | 0,033 (15kHz) |
| Operating Voltage | 10…30VDC |
| Dimensions | 32x60x82 |
| Connections | M12 plug |
| Storage temperature | - 20°C…+70°C |
| Operating Temperature | - 10°C…+ 55°C |
| Mechanical Protection | IP67 |
| Storage temperature | 20°C…+70°C |
| Operating Temperature | 10°C…+ 55°C |
| Nominal sensing distance | 12mm |
| Switching frequency | 15kHz |
| No-Load supply current | ≤ 50mA |
| Load current | ≤100mA |
| Max ripple content | ≤ 2Vpp |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
| Impulsive Overvoltage Protection | Yes |
| Impulsive Overvoltage Protection | Insulation resistance |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Housing material | Metal - Aluminium / PMMA |
| Active Head Material | Glass |
| Diameter/Dimension | Cubic |
| Short-circuit protection | Reverse Polarity Protection |
| Material | Housing material |
| Active Head Material | Storage temperature |
| Function Principle | Contrast mark detection |
| Functions | Contrast mark detection |
| Emission | LED RGB |
| Application | Function Principle |
| Contrast mark detection | Contrast mark detection |
| >20 MΩ 500 Vdc, between electronics and housing | Contact resistance |
| 5 different models | basic, standard, enhanced, low jitter, color mode |
