Explore performance details, construction highlights, applications, and technical information in one clear overview.

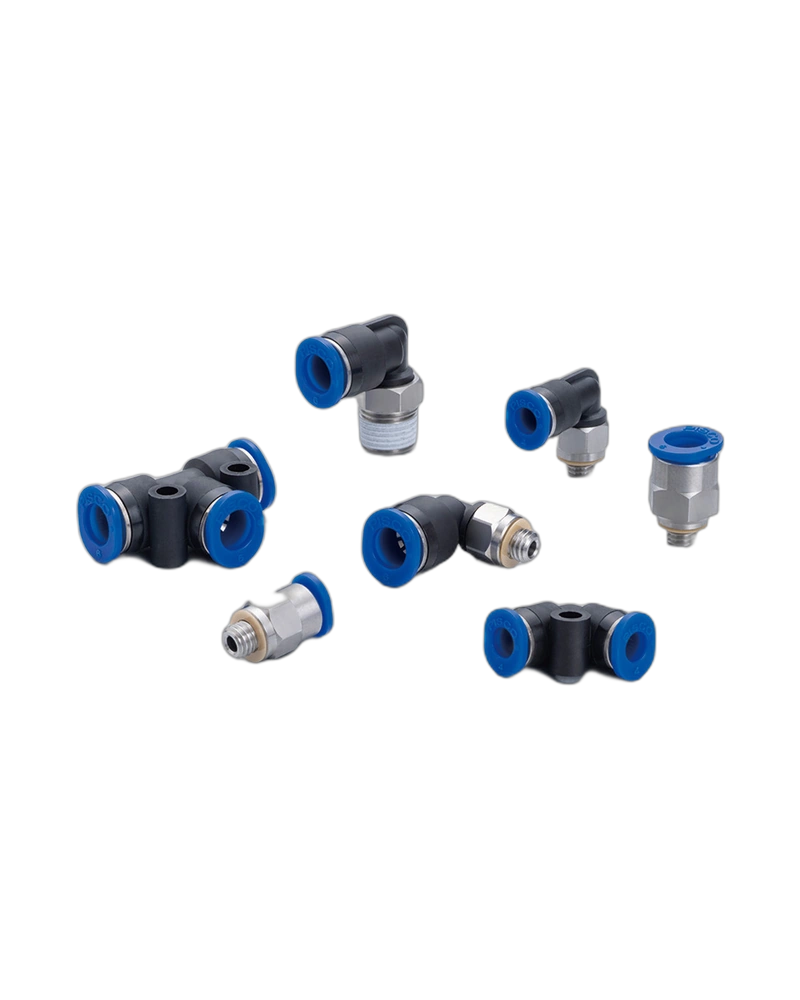

This special mini fitting combines the compact dimensions of PISCO Mini Fittings with stainless material selected for corrosion resistance equivalent to SUS303.
The construction retains the mini push-in fitting form while replacing the main metal material with special stainless steel. PISCO specifies that no copper-based metallic material is used in the flow path for the applicable corrosion-resistant version.
The Mini Fittings platform covers air service, 1.0MPa maximum operating pressure, -100kPa maximum vacuum and 0 to 60℃ operation. Available mini tube sizes include φ1.8, φ2, φ3, φ4 and φ6, with metric, taper, UNF and NPT interfaces depending on the model.
Use the exact special part number for the required tube diameter and thread. Confirm the fluid compatibility of the corrosion-resistant construction before using liquids or chemicals.
| Specification | Details |
|---|---|
| Fluid medium | Air |
| Max. operating pressure | 1.0MPa |
| Max. vacuum | -100kPa |
| Operating temp. range | 0 to 60℃ (No freezing) |
| mm size (mm) | φ1.8, φ2, φ3, φ4, φ6 |
| inch size | φ1/8", φ5/32", φ3/16", φ1/4" |
| Metric male thread | M3x0.5, M5x0.8, M6x1 |
| Taper pipe male thread | R1/8, R1/4, R3/8 |
| Metric female thread | M3x0.5, M5x0.8 |
| UNF thread | 10-32UNF |
| NPT thread | NPT1/16, NPT1/8, NPT1/4, NPT3/8 |
| Main metal material | Special stainless steel; corrosion resistance equivalent to SUS303 |
| Flow-path material restriction | No copper-based metallic material is used in flow paths |
