The optical emission is Red (660 nm). A switching frequency of 800 Hz.
The thermal drift Sr is 10 % Sr, with repeat accuracy of 5%.
The output type is PNP. The operating voltage is 10….30 VDC, with load current of 100 mA.
No-load supply current is ≤ 20 mA and leakage current is limited to ≤ 10 µA. Maximum ripple is ≤ 10 %.
Short-circuit protection is Yes. Reverse polarity protection is Yes. Ingress protection is rated IP67 (EN60529).
LED indicators is Yellow.
The housing material is PBT. Dimensions are M18 x 1 / L = 76 mm and the connection is 2 m PVC Cable Axial.
Weight is 100 g.
Tightening torque is 1 nm.
The operating temperature range is - 25 °C…+ 70 °C (Non-freezing).
Sensitivity adjustment is Teach-in.

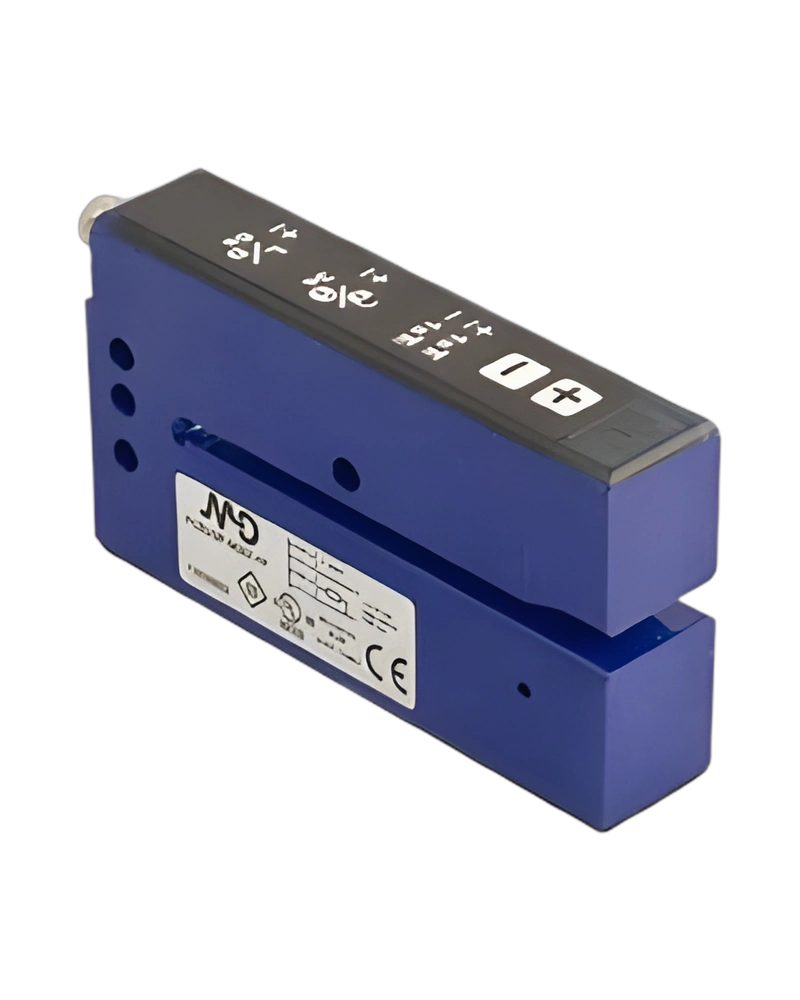

The manufacturer part number is SSF/0P-0A. This model is manufactured by M.D. Micro Detectors. Time to availability is 150 ms.
External-light interference is limited to 3.000 lx (Incandescent lamp), 10.000 lx (Sunlight).
For electrical integration, it provides output type PNP, operating voltage 10….30 VDC, switching frequency 800 Hz. The physical configuration includes PBT housing, dimensions M18 x 1 / L = 76 mm, 2 m PVC Cable Axial connection. It is rated IP67 (EN60529) for an operating temperature range of - 25 °C…+ 70 °C (Non-freezing).
| Specification | Details |
|---|---|
| Model | SSF/0P-0A |
| Manufacturer part number | SSF/0P-0A |
| Manufacturer | M.D. Micro Detectors |
| Output type | PNP |
| Switching frequency | 800 Hz |
| Weight | 100 g |
| Housing material | PBT |
| Tightening torque | 1 nm |
| Operating temperature | - 25 °C…+ 70 °C (Non-freezing) |
| Dimensions | M18 x 1 / L = 76 mm |
| Connection | 2 m PVC Cable Axial |
| Sensitivity adjustment | Teach-in |
| Thermal drift Sr | 10 % Sr |
| Repeat accuracy | 5% |
| Degree of protection | IP67 (EN60529) |
| Time to availability | 150 ms |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Maximum ripple | ≤ 10 % |
| External light interference | 3.000 lx (Incandescent lamp), 10.000 lx (Sunlight) |
| Operating voltage | 10….30 VDC |
| LED indicators | Yellow |
| Load current | 100 mA |
| No-load supply current | ≤ 20 mA |
| Leakage current | ≤ 10 µA |
| Emission | Red (660 nm) |
