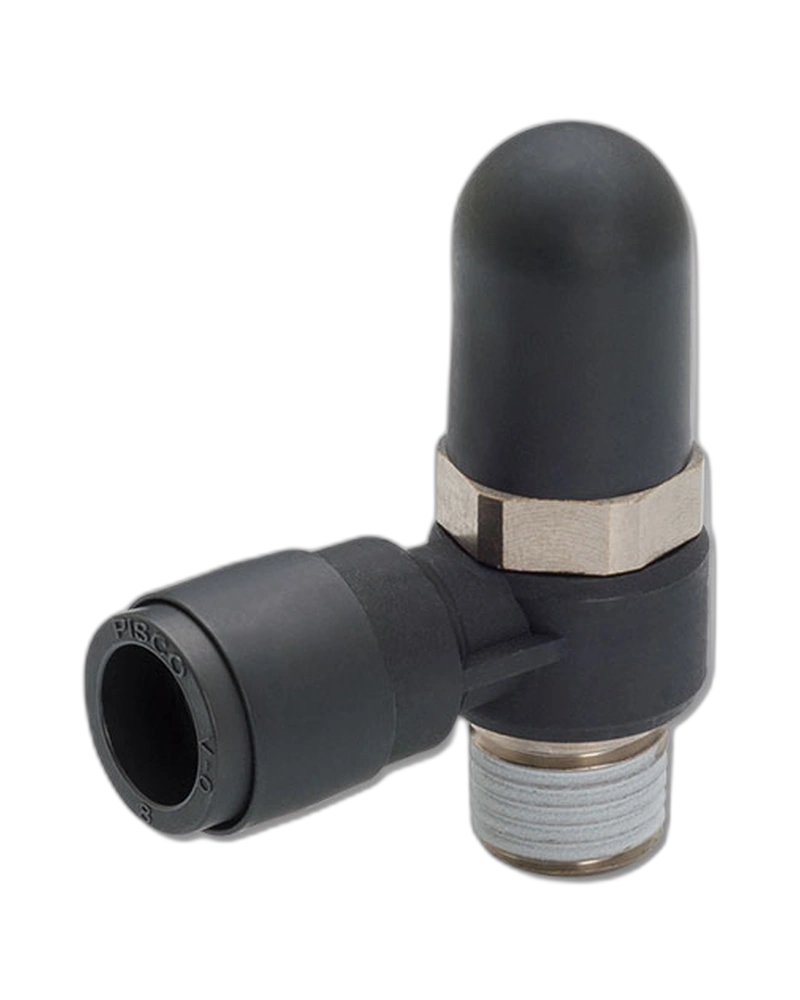

The Speed Controller Spatter is a specialized pneumatic control device designed to manage airflow and pressure in industrial environments where weld spatter and high-temperature sparks are common. Its primary purpose is to ensure reliable operation while resisting damage from molten metal particles, making it ideal for use in welding, cutting, or similar applications where spatter resistance is critical.
The body of the Speed Controller Spatter is constructed from a flame-retardant resin with UL94 V-0 equivalence, providing excellent resistance to ignition and heat exposure. Key mechanical components such as needles and joints are protected by a protective cover to prevent damage from sparks. The main metal parts are made from brass with electroless nickel plating, offering durability and corrosion resistance in harsh conditions.
The Speed Controller Spatter features a modular design that allows for connection via either a metric male thread (M5x0.8) or taper pipe male threads (R1/8, R1/4, R3/8, R1/2). This flexibility enables integration into various pneumatic systems and equipment configurations.
The device operates within an air-based fluid medium and is rated for a pressure range of 0.1 to 0.9 MPa (0.05 to 0.5 MPa), with a check valve cracking pressure of 0.05 MPa (0.02 MPa). It functions reliably across temperatures from 0°C to 60°C, ensuring no freezing under normal operating conditions.
Available in multiple sizes including φ4, φ6, φ8, φ10, and φ12 mm, the Speed Controller Spatter offers a range of options to match different system requirements. The product is not offered in color variants or other aesthetic options beyond standard industrial finishes.
The Speed Controller Spatter integrates directly into pneumatic systems through its threaded connections. It is designed to work with anti-spatter tubes for enhanced protection, particularly in high-spatter environments where additional shielding is required.
| Specification | Details |
|---|---|
| Fluid medium | Air |
| Operating pressure range | 0.1 to 0.9MPa | 0.05 to 0.5MPa |
| Check valve cracking pressure | 0.05MPa | 0.02MPa |
| Operating temp. range | 0 to 60℃ (No freezing) |
| mm size (mm) | φ4, φ6, φ8, φ10, φ12 |
| Metric male thread | M5x0.8 |
| Taper pipe male thread | R1/8, R1/4, R3/8, R1/2 |
| Construction materials | A flame-retardant resin equivalent to UL V-0 is used for the body material to suit spatter-resistant environments. Protective Cover at both needle and joint parts to protect from sparks |
| Main metal material | Brass with electroless nickel plating |
