The Silencer is a noise suppression device designed to be connected directly to the exhaust port of a mechanical or pneumatic system. By attaching to the exhaust outlet, it effectively reduces the sound generated by air flow, helping to meet noise regulations and improve operational comfort in industrial environments.
The silencer's main resin components are manufactured from PBT (polybutylene terephthalate), a durable and reliable thermoplastic suitable for general environmental conditions. Critical metal parts, such as structural joints and fittings, are made from brass with an electroless nickel plating layer to enhance corrosion resistance and mechanical strength. The sealing interface uses NBR (nitrile rubber), which provides effective sealing under normal operating conditions, though it has limited ozone resistance.

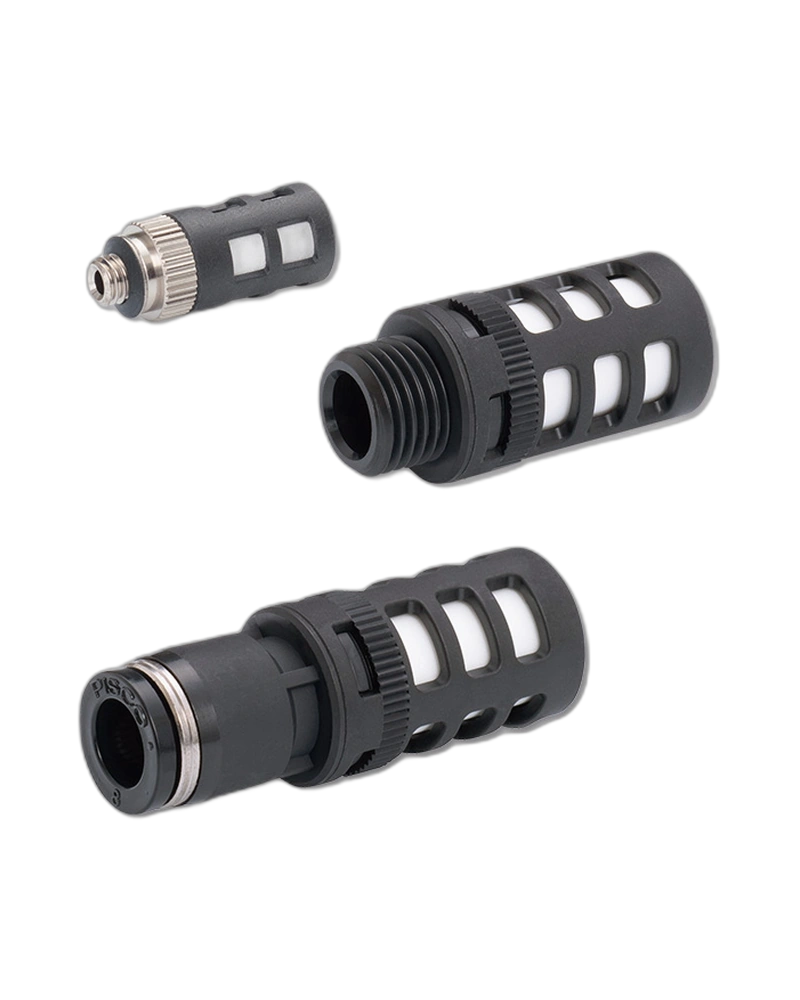

The silencer is available in three connection types: taper thread, metric male thread, and push-in fitting. This allows for flexible integration with a wide range of equipment depending on the original exhaust port design or manufacturer specifications.
The silencer operates under air as the fluid medium, with an operating pressure range from 0 to 0.9 MPa and a temperature range from 0 to 60°C. It is not designed for use in freezing conditions, as operation below 0°C may compromise performance or material integrity.
Available sizes include φ4 mm, φ6 mm, and φ8 mm (equivalent to φ5/32 inch, φ1/4 inch, and φ5/16 inch). Connection options vary by thread type: metric male threads (M5x0.8, M6x1, M10x1), parallel pipe male threads (G1/8, G1/4, G3/8, G1/2), UNF threads (10-32UNF), and NPT threads (NPT1/8, NPT1/4, NPT3/8, NPT1/2).
The silencer integrates directly into the exhaust system via its threaded or push-in interface. It is compatible with standard threaded connections such as metric, parallel pipe, and NPT threads, enabling straightforward installation without requiring specialized tools or modifications.
| Specification | Details |
|---|---|
| Fluid medium | Air |
| Operating pressure range | 0 to 0.9MPa |
| Operating temp. range | 0 to 60℃ (No freezing) |
| mm size (mm) | φ4, φ6, φ8 |
| inch size | φ5/32, φ1/4, φ5/16 |
| Metric male thread | M5x0.8, M6x1, M10x1 |
| Parallel pipe male thread | G1/8, G1/4, G3/8, G1/2 |
| UNF Thread | 10-32UNF |
| NPT Thread | NPT1/8, NPT1/4, NPT3/8, NPT1/2 |
| Main resin material | PBT |
| Main metal material | Brass with electroless nickel plating |
