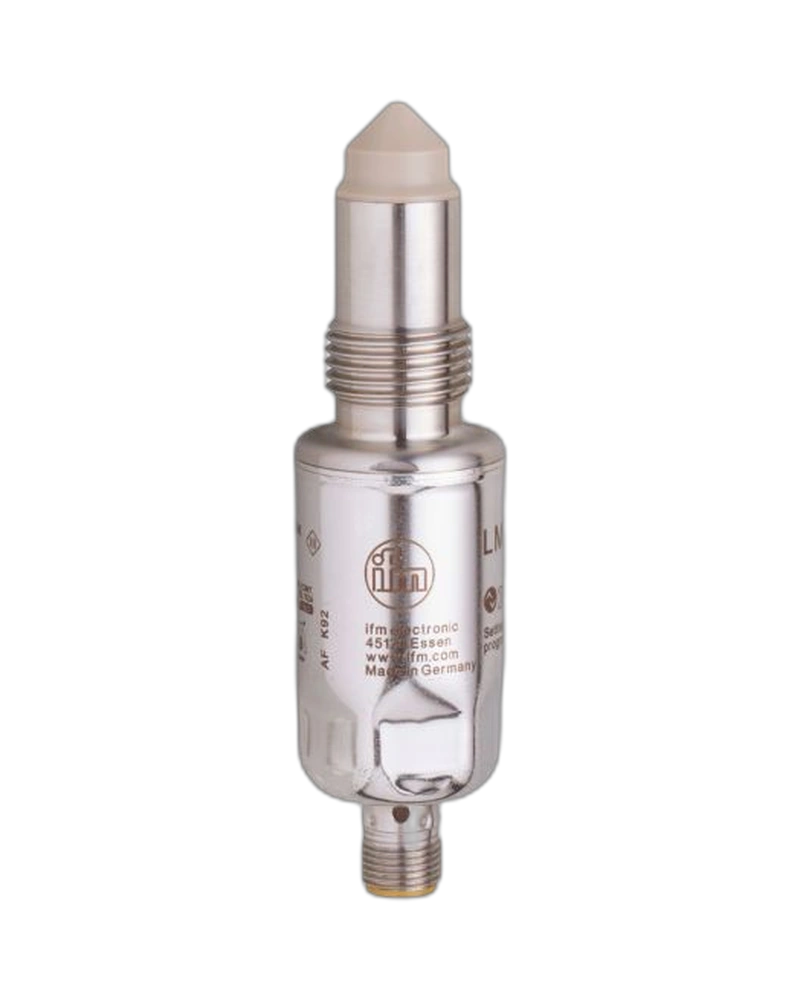

The IFM LMT121 is a hygienic point-level sensor designed for liquids, viscous media and powders. It uses capacitive sensing to detect different media conditions in process equipment. Two programmable switching outputs allow flexible level-status control. The sensor features an 11 mm probe, G1/2 sealing-cone process connection and IO-Link communication. Its stainless-steel construction and IP68/IP69K protection make it suitable for demanding hygienic installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The LMT121 is designed for point-level detection in hygienic process applications. It can handle liquids, viscous media and suitable powder-type materials. The compact 11 mm probe supports installation where a short sensing element is preferred. Its capacitive principle enables electronic detection without mechanical float mechanisms. The sensor is particularly useful in food, beverage and process-fluid equipment.
Two digital outputs provide flexible switching functionality. The outputs can be configured for normally open or normally closed operation. PNP/NPN electrical compatibility provides additional control-system flexibility. IO-Link allows parameterisation and diagnostic access. This makes the LMT121 suitable for automated level-control architectures.
The sensor uses stainless steel together with PEEK, PEI and FKM materials. Its G1/2 sealing-cone connection supports process installation. IP68 and IP69K protection provides resistance to demanding washdown environments. Medium temperatures can reach 100 °C continuously and 150 °C for short periods. These characteristics make the LMT121 appropriate for hygienic process machinery.
11 mm probe
Capacitive sensing
2 programmable digital outputs
PNP/NPN design
IO-Link communication
G1/2 sealing-cone connection
Stainless-steel housing
PEEK wetted material
IP68 protection
IP69K protection
18–30 V DC supply
Gold-plated contacts
Food processing equipment
Beverage processing
Hygienic tanks
Viscous liquid detection
Powder-level detection
Process vessels
Filling machines
Cleaning and washdown systems
The LMT121 is factory configured for media with low water content. Its sensing technology allows different process media characteristics to be accommodated through parameterisation. The device is suited to both liquid and selected viscous or powder media. This flexibility reduces the need for different mechanical level-switch designs. IO-Link provides additional configuration options during commissioning.
The LMT121 supports ambient temperatures from -40 to 85 °C. Its process-medium temperature range reaches -40 to 100 °C. Short-duration exposure up to 150 °C is supported for approximately one hour. High ingress protection allows use in demanding cleaning environments. The robust construction is especially useful where frequent washdown is required.
| Specification | LMT121 |
|---|---|
| Product type | Point-level sensor |
| Product family | LMT hygienic level sensor |
| Sensing principle | Capacitive |
| Probe length | 11 mm |
| Process connection | G1/2 sealing cone |
| Media | Liquids, viscous media, powder |
| Factory setting | Low-water-content media |
| Electrical design | PNP/NPN |
| Digital outputs | 2 |
| Output function | NO/NC programmable |
| Communication | IO-Link |
| Operating voltage | 18–30 V DC |
| Current consumption | <50 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Connection | M12 connector |
| Contacts | Gold-plated |
| Housing material | Stainless steel 316L |
| Wetted material | PEEK |
| Additional material | PEI |
| Seal material | FKM |
| Ambient temperature | -40…85 °C |
| Medium temperature | -40…100 °C |
| Short-time medium temperature | -40…150 °C |
| Short-time duration | 1 h |
| Tank pressure | -1…40 bar |
| CRN MAWP | 40 bar |
| Protection rating | IP68 |
| Washdown rating | IP69K |
