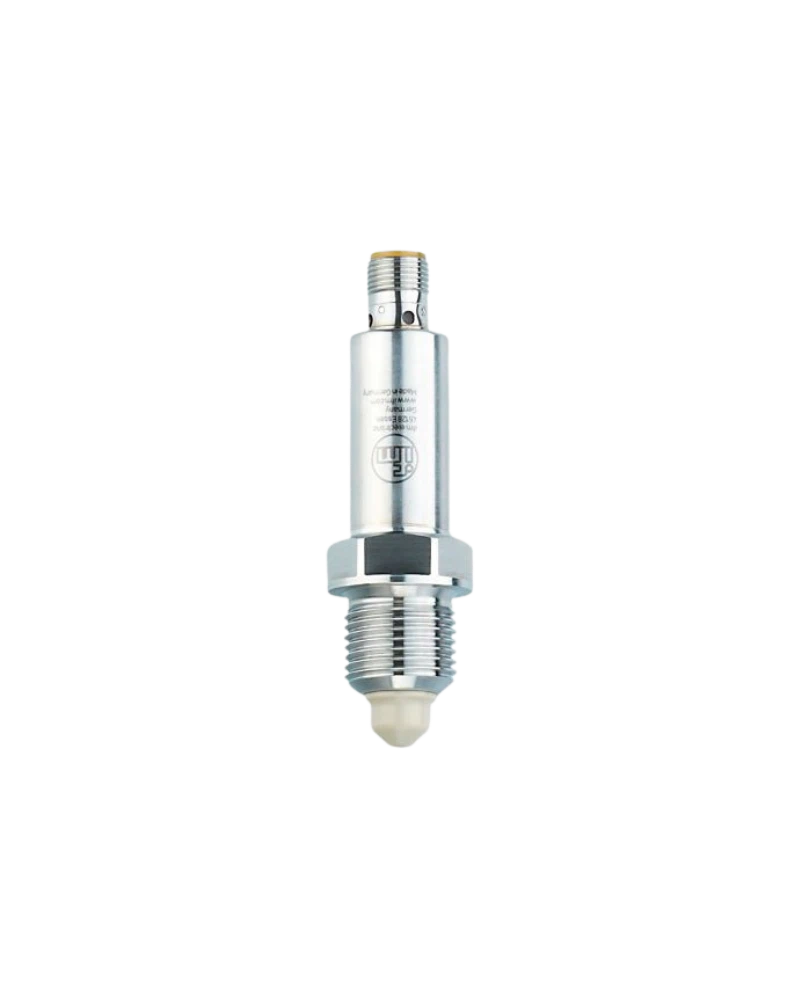

The IFM LMC100 is a capacitive point level sensor designed for reliable level monitoring in industrial applications. It detects water-based and hydrous media while providing fast and stable switching performance. The sensor features two programmable digital outputs with IO-Link communication for convenient parameterisation and diagnostics. Its stainless-steel housing and PEEK sensing tip provide excellent durability in demanding process environments. With IP68 and IP69K protection, the LMC100 is suitable for robust tank and vessel level monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The LMC100 uses capacitive measuring technology to detect the presence or absence of liquids at a defined level. Its factory setting is optimised for water and hydrous media. The sensor provides two digital outputs that can be configured according to the required switching function. Deposit suppression helps maintain reliable switching performance even when residue accumulates around the sensing area. This makes the LMC100 suitable for overflow prevention, dry-run protection, and level monitoring.
The integrated IO-Link interface provides convenient access to sensor parameters and diagnostic information. Communication operates through COM2 at 38.4 kBaud using IO-Link revision 1.1. The sensor supports both standard I/O operation and IO-Link communication. Process data can be exchanged digitally with compatible automation controllers. This simplifies commissioning, parameter adjustment, diagnostics, and sensor replacement.
The LMC100 uses a stainless-steel housing with a PEEK measuring tip for demanding industrial environments. Its G1/2 sealing-cone process connection allows secure installation into suitable process fittings. The sensor is rated IP68 and IP69K for protection against water ingress and intensive cleaning conditions. The operating temperature range supports a broad range of industrial installations. Gold-plated M12 contacts provide a reliable electrical connection.
Tank level monitoring
Overflow protection
Pump dry-run protection
Leakage detection
Water and hydrous liquid detection
Process vessel monitoring
Industrial liquid handling
Capacitive measuring principle
Two digital switching outputs
PNP/NPN electrical design
Normally open/normally closed parameterisation
IO-Link 1.1 communication
COM2 communication at 38.4 kBaud
Factory preset for hydrous media
Response time below 0.5 s
Stainless-steel 316L housing
PEEK wetted sensing tip
IP68 and IP69K protection
Gold-plated M12 contacts
The LMC100 should be installed using a compatible G1/2 process connection and appropriate sealing arrangement. The sensing tip should be positioned at the required switching level inside the vessel. Correct installation helps maintain reliable detection and minimises unwanted switching. IO-Link can be used to configure operating parameters and verify sensor status. Periodic inspection of the process connection and sensing tip is recommended for demanding applications.
The two digital outputs allow the LMC100 to provide flexible switching information to a control system. IO-Link additionally enables digital parameterisation and process data communication. The sensor can therefore be integrated into PLC-based automation architectures. Its fast response supports timely level-related control actions. This makes it useful for automated filling, draining, and protection systems.
| Specification | Details |
|---|---|
| Model | LMC100 |
| Product type | Point level detection sensor |
| Sensor technology | Capacitive |
| Application | Industrial applications |
| Order code | LMFCE-B12E-QSKG-0/US |
| Measuring principle | Capacitive |
| Factory setting | Water / hydrous media |
| Number of digital outputs | 2 |
| Total outputs | 2 |
| Output signal | Switching signal / IO-Link |
| Electrical design | PNP/NPN |
| Output function | NO/NC parameterisable |
| Operating voltage | 18…30 V DC |
| Current consumption | <50 mA |
| Protection class | III |
| Reverse polarity protection | Yes |
| Voltage drop | 2.5 V |
| Continuous output current | 50 mA; 100 mA up to 60 °C |
| Short-circuit protection | Yes, thermal/pulsed |
| Overload protection | Yes |
| Factory detection medium | Water-based media |
| Response time | <0.5 s |
| IO-Link revision | 1.1 |
| IO-Link transmission | COM2, 38.4 kBaud |
| Minimum process cycle | 2.3 ms |
| Ambient temperature | -25…85 °C |
| Protection rating | IP68 / IP69K |
| Dimensions | Ø18.1 × 76.2 mm |
| Process connection | G1/2 external thread |
| Housing material | Stainless steel 316L, PEEK, PEI, FKM |
| Wetted material | Stainless steel 316L, PEEK, FKM |
