Product Summary

The S8-PH-3-B51-PP - 950801080 - S8 Compact Photoelectric Sensors is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.

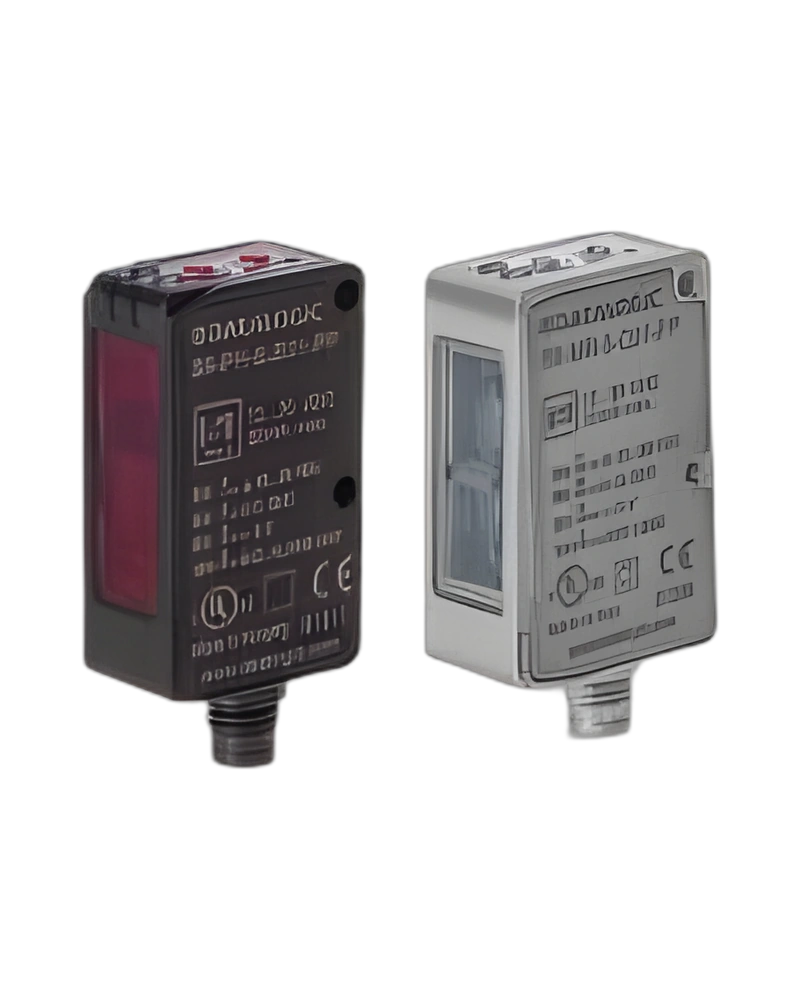

S8 Compact Photoelectric Sensor

The Datasensing S8-PH-3-B51-PP - 950801080 is a precision photoelectric sensor designed for industrial applications. It delivers a reliable PNP output with L/D selectable logic, operating within a 12–30VDC range. The sensor maintains a maximum output voltage drop of ≤2V at 100mA load current, ensuring stable performance under typical industrial conditions.

Technical Specifications

• Operating Voltage: 12–30VDC
• Output Voltage Drop: ≤2V @ Iload=100mA
• Response Time: 0.5 ms
• Output Type: PNP L/D selectable
• Dimensions: 14×43×25 mm
• Connections: 150mm PVC cable + M12 plug
• Operating Temperature: -25°C to +55°C (without freeze)
• Storage Temperature: -25°C to +70°C
• Protection: IP67

Key Features

• Compact Design: Fits into tight spaces with 14×43×25 mm footprint
• Robust Performance: Operates reliably across -25°C to +55°C environments
• Flexible Output: PNP with L/D selection for compatibility with diverse control systems

Performance

The documented configuration includes Response time: 0,5; Nominal sensing distance: 12m; Emission: according to EN 60947-5-2 : 2020; Emission: LASER Red.

Electrical and Interface

The documented configuration includes Output voltage drop: ≤2V@Iload=100mA; Output type: PNP L/D selectable; Operating Voltage: 12…30VDC; No-Load supply current: ≤ 30mA; Impulsive Overvoltage Protection: Yes; Impulsive Overvoltage Protection: Insulation resistance; Output Function: L/D selectable; Output type: Output Function.

Mechanical and Environmental

The documented configuration includes Dimensions: 14x43x25; Storage temperature: - 25°C…+70°C; Operating Temperature: - 25°C…+ 55°C (Without freeze); Mechanical Protection: IP67; Storage temperature: 25°C…+70°C; Operating Temperature: 25°C…+ 55°C (Without freeze); Insulation resistance: >20 MΩ 500 Vdc, between electronics and housing; Short-circuit protection: YES.

Mechanical and Environmental – Additional Details

The documented configuration includes Reverse Polarity Protection: Yes; Material: Plastic - ABS / PMMA; Housing material: ABS(Housing), PMMA (Optics); Active Head Material: PMMA; Diameter/Dimension: Cubic; Short-circuit protection: Reverse Polarity Protection; Active Head Material: Storage temperature; >20 MΩ 500 Vdc, between electronics and housing: Contact resistance.

Configuration and Functional

The documented configuration includes Function Principle: Polarized retroreflective; Functions: Polarized retroreflective; Application: Function Principle.

General

The documented configuration includes Connections: 150mm PVC cable + M12 plug; Optic position: Radial 90°; Interference to external light: according to EN 60947-5-2 : 2020; Contact resistance: 500 Vac 1 min., between electronics and housing; Shocks and vibrations: 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6); ≤2V@Iload: 100mA.
