Explore performance details, construction highlights, applications, and technical information in one clear overview.
The S8-MR-5-T53-PP - 950801300 - S8 Compact Photoelectric Sensors is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.

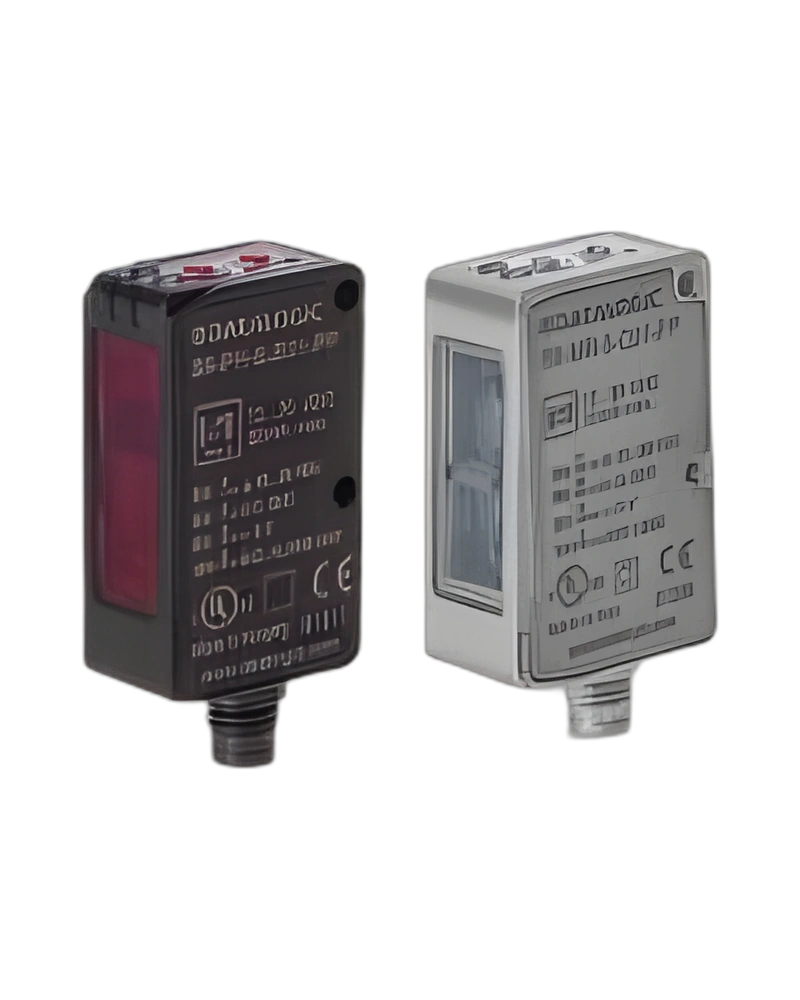

The Datasensing S8-MR-5-T53-PP - 950801300 is a precision photoelectric sensor designed for demanding industrial environments. It delivers reliable performance with a compact form factor of 14x43x25 mm and stainless steel IP69K-rated construction for extreme durability.
Engineered for harsh conditions, this sensor features IP67 mechanical protection and operates within a storage temperature range of -25°C…+70°C. Its stainless steel construction ensures long-term resilience in industrial settings.
The documented configuration includes Response time: 0,25; Nominal sensing distance: 2m; Emission: LED Red.
The documented configuration includes Output voltage drop: ≤2V@Iload=100mA; Output type: PNP L/D selectable; Operating Voltage: 12…30VDC; No-Load supply current: ≤ 30mA; Impulsive Overvoltage Protection: Yes; Impulsive Overvoltage Protection: Insulation resistance; Output Function: L/D selectable; Output type: Output Function.
The documented configuration includes Dimensions: 14x43x25; Material: Metal - Stainless steel IP69K; Storage temperature: - 25°C…+70°C; Operating Temperature: - 25°C…+ 55°C (Without freeze); Mechanical Protection: IP67; Storage temperature: 25°C…+70°C; Operating Temperature: 25°C…+ 55°C (Without freeze); Insulation resistance: >20 MΩ 500 Vdc, between electronics and housing.
The documented configuration includes Short-circuit protection: YES; Reverse Polarity Protection: Yes; Housing material: ABS(Housing), PMMA (Optics); Active Head Material: PMMA; Diameter/Dimension: Cubic; Short-circuit protection: Reverse Polarity Protection; Active Head Material: Storage temperature; >20 MΩ 500 Vdc, between electronics and housing: Contact resistance.
The documented configuration includes Function Principle: Polarized retroreflective for clear object; Functions: Polarized retroreflective for clear object; Application: Function Principle.
The documented configuration includes Connections: M8 plug 4pin; Optic position: Radial 90°; Interference to external light: according to EN 60947-5-2 : 2020; Contact resistance: 500 Vac 1 min., between electronics and housing; Shocks and vibrations: 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6); Compact slim case IP69K: Radial 90°; ≤2V@Iload: 100mA.
| Feature | Specification |
|---|---|
| Output voltage drop | ≤2V@Iload=100mA |
| Output type | PNP L/D selectable |
| Response time | 0,25 |
| Operating Voltage | 12…30VDC |
| Dimensions | 14x43x25 |
| Material | Metal - Stainless steel IP69K |
| Connections | M8 plug 4pin |
| Storage temperature | - 25°C…+70°C |
| Operating Temperature | - 25°C…+ 55°C (Without freeze) |
| Mechanical Protection | IP67 |
| Storage temperature | 25°C…+70°C |
| Operating Temperature | 25°C…+ 55°C (Without freeze) |
| Nominal sensing distance | 2m |
| Optic position | Radial 90° |
| No-Load supply current | ≤ 30mA |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
| Compact slim case IP69K | Radial 90° |
| ≤2V@Iload | 100mA |
| Impulsive Overvoltage Protection | Yes |
| Impulsive Overvoltage Protection | Insulation resistance |
| Output Function | L/D selectable |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Housing material | ABS(Housing), PMMA (Optics) |
| Active Head Material | PMMA |
| Diameter/Dimension | Cubic |
| Output type | Output Function |
| Short-circuit protection | Reverse Polarity Protection |
| Active Head Material | Storage temperature |
| Function Principle | Polarized retroreflective for clear object |
| Functions | Polarized retroreflective for clear object |
| Emission | LED Red |
| Application | Function Principle |
| >20 MΩ 500 Vdc, between electronics and housing | Contact resistance |
