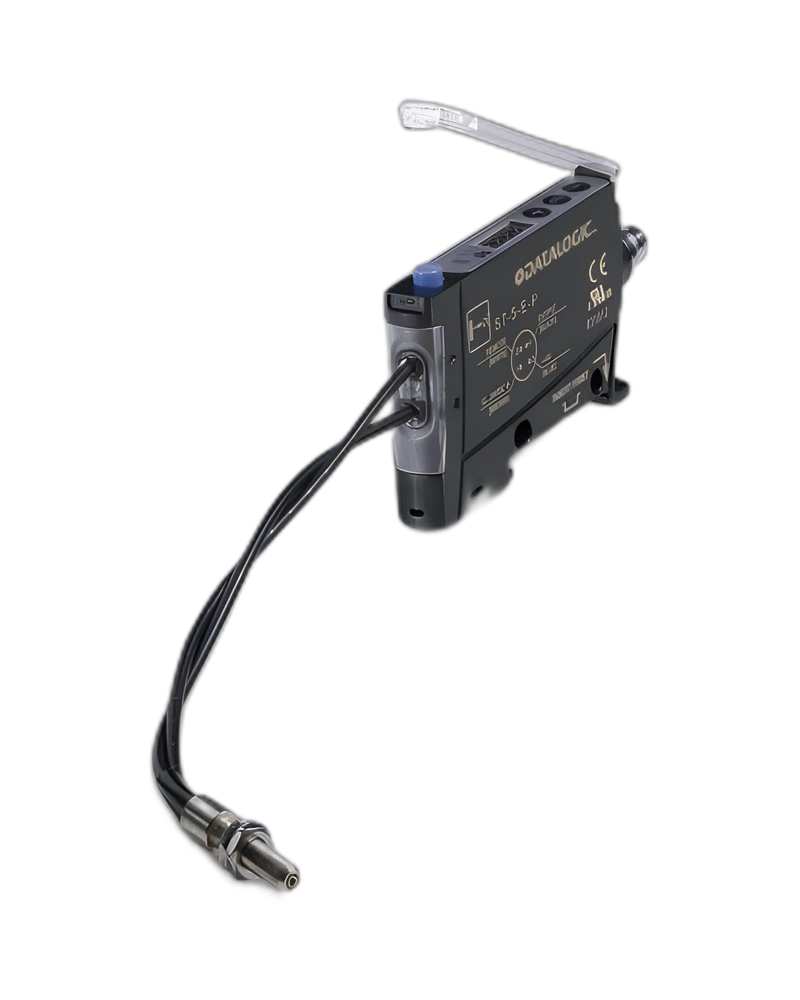

The S7-8-E-P - 950551140 - S7 FO Amplifier Photoelectric Sensors is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
With dimensions of 10x40x65mm and M8 plug 4-pin connections, this sensor ensures reliable performance in harsh conditions while maintaining compatibility with standard industrial power supplies.
The documented configuration includes Response time: 500µs (low speed); Nominal sensing distance: 100mm; Emission: LED Red (670 nm).
The documented configuration includes Output voltage drop: ≤1,2V@Iload=100mA; Output type: PNP L/D selectable; Operating Voltage: 12...24VDC ± 10%; Switching frequency: 1Khz (low speed); No-Load supply current: ≤ 30mA; Load current: ≤100mA; Impulsive Overvoltage Protection: Yes; Impulsive Overvoltage Protection: Insulation resistance.
The documented configuration includes Output Function: L/D selectable; Output type: Output Function.
The documented configuration includes Dimensions: 10x40x65; Storage temperature: - 25°C…+70°C; Operating Temperature: - 25°C…+ 55°C (Without freeze); Mechanical Protection: IP67 with cover; Storage temperature: 25°C…+70°C; Operating Temperature: 25°C…+ 55°C (Without freeze); Insulation resistance: >20 MΩ 500 Vdc, between electronics and housing; Short-circuit protection: YES.
The documented configuration includes Reverse Polarity Protection: Yes; Material: Plastic ABS / PC; Housing material: ABS(Housing), PMMA (Optics); Active Head Material: PMMA; Diameter/Dimension: Cubic; Short-circuit protection: Reverse Polarity Protection; Active Head Material: Storage temperature; >20 MΩ 500 Vdc, between electronics and housing: Contact resistance.
The documented configuration includes Function Principle: Optic fiber amplifier; Functions: Optic fiber amplifier; Application: Function Principle.
The documented configuration includes Connections: M8 plug 4pin; Interference to external light: according to EN 60947-5-2 : 2020; Contact resistance: 500 Vac 1 min., between electronics and housing; Shocks and vibrations: 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6); ≤1,2V@Iload: 100mA.
| Feature | Specification |
|---|---|
| Output voltage drop | ≤1,2V@Iload=100mA |
| Output type | PNP L/D selectable |
| Response time | 500µs (low speed) |
| Operating Voltage | 12...24VDC ± 10% |
| Dimensions | 10x40x65 |
| Connections | M8 plug 4pin |
| Storage temperature | - 25°C…+70°C |
| Operating Temperature | - 25°C…+ 55°C (Without freeze) |
| Mechanical Protection | IP67 with cover |
| Storage temperature | 25°C…+70°C |
| Operating Temperature | 25°C…+ 55°C (Without freeze) |
| Nominal sensing distance | 100mm |
| Switching frequency | 1Khz (low speed) |
| No-Load supply current | ≤ 30mA |
| Load current | ≤100mA |
| Emission | LED Red (670 nm) |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
| ≤1,2V@Iload | 100mA |
| Impulsive Overvoltage Protection | Yes |
| Impulsive Overvoltage Protection | Insulation resistance |
| Output Function | L/D selectable |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Material | Plastic ABS / PC |
| Housing material | ABS(Housing), PMMA (Optics) |
| Active Head Material | PMMA |
| Diameter/Dimension | Cubic |
| Output type | Output Function |
| Short-circuit protection | Reverse Polarity Protection |
| Active Head Material | Storage temperature |
| Function Principle | Optic fiber amplifier |
| Functions | Optic fiber amplifier |
| Application | Function Principle |
| >20 MΩ 500 Vdc, between electronics and housing | Contact resistance |
