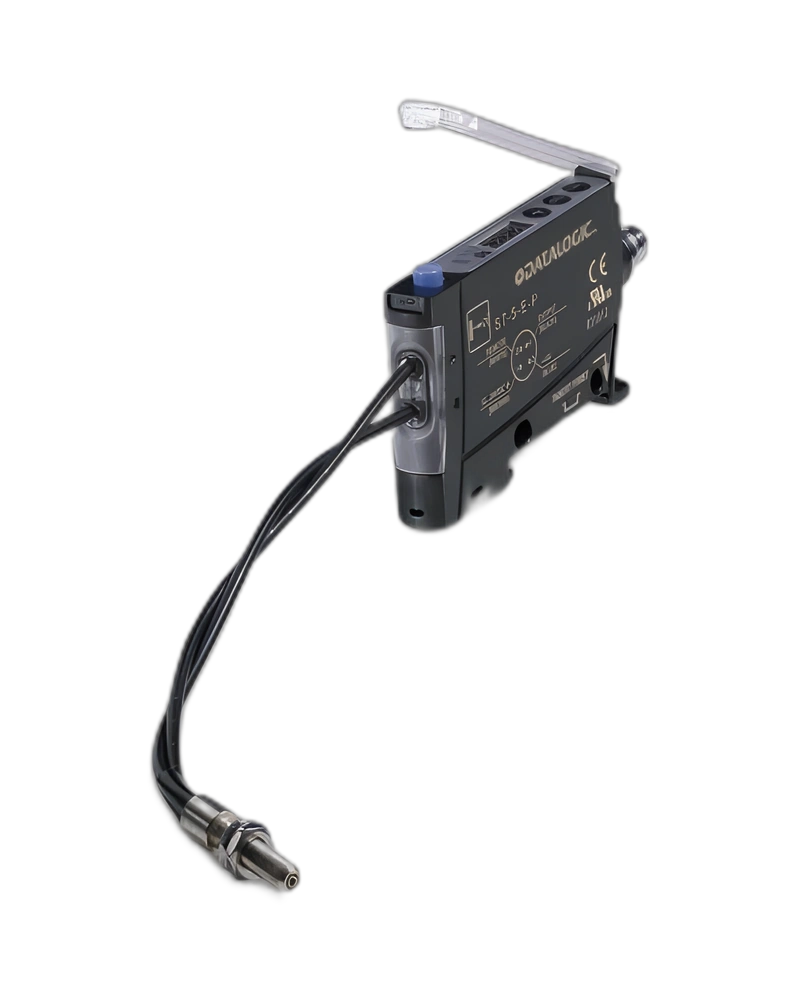

The S7-7-E-P - 950551120 - S7 FO Amplifier Photoelectric Sensors is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
The Datasensing S7-7-E-P - 950551120 is a high-resolution photoelectric sensor amplifier designed for industrial applications. It delivers precise detection with a PNP output type that supports both L (low) and D (dual) selection, ensuring flexible integration into control systems.
Engineers and technicians can rely on this sensor's stability and durability for demanding environments. The IP67 rating ensures protection against dust and water immersion, while the wide operating temperature range supports use in harsh conditions.
The documented configuration includes Response time: 500µs (low speed); Nominal sensing distance: 100mm; Emission: LED Red (670 nm).
The documented configuration includes Output voltage drop: ≤1,2V@Iload=100mA; Output type: PNP L/D selectable; Operating Voltage: 12...24VDC ± 10%; Switching frequency: 1Khz (low speed); No-Load supply current: ≤ 30mA; Load current: ≤100mA; Impulsive Overvoltage Protection: Yes; Impulsive Overvoltage Protection: Insulation resistance.
The documented configuration includes Output Function: L/D selectable; Output type: Output Function.
The documented configuration includes Dimensions: 10x40x65; Storage temperature: - 25°C…+70°C; Operating Temperature: - 25°C…+ 55°C (Without freeze); Mechanical Protection: IP67 with cover; Storage temperature: 25°C…+70°C; Operating Temperature: 25°C…+ 55°C (Without freeze); Insulation resistance: >20 MΩ 500 Vdc, between electronics and housing; Short-circuit protection: YES.
The documented configuration includes Reverse Polarity Protection: Yes; Material: Plastic ABS / PC; Housing material: ABS(Housing), PMMA (Optics); Active Head Material: PMMA; Diameter/Dimension: Cubic; Short-circuit protection: Reverse Polarity Protection; Active Head Material: Storage temperature; >20 MΩ 500 Vdc, between electronics and housing: Contact resistance.
The documented configuration includes Function Principle: Optic fiber amplifier; Functions: Optic fiber amplifier; Application: Function Principle.
The documented configuration includes Connections: 2m cable; Interference to external light: according to EN 60947-5-2 : 2020; Contact resistance: 500 Vac 1 min., between electronics and housing; Shocks and vibrations: 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6); ≤1,2V@Iload: 100mA.
| Feature | Specification |
|---|---|
| Output voltage drop | ≤1,2V@Iload=100mA |
| Output type | PNP L/D selectable |
| Response time | 500µs (low speed) |
| Operating Voltage | 12...24VDC ± 10% |
| Dimensions | 10x40x65 |
| Connections | 2m cable |
| Storage temperature | - 25°C…+70°C |
| Operating Temperature | - 25°C…+ 55°C (Without freeze) |
| Mechanical Protection | IP67 with cover |
| Storage temperature | 25°C…+70°C |
| Operating Temperature | 25°C…+ 55°C (Without freeze) |
| Nominal sensing distance | 100mm |
| Switching frequency | 1Khz (low speed) |
| No-Load supply current | ≤ 30mA |
| Load current | ≤100mA |
| Emission | LED Red (670 nm) |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
| ≤1,2V@Iload | 100mA |
| Impulsive Overvoltage Protection | Yes |
| Impulsive Overvoltage Protection | Insulation resistance |
| Output Function | L/D selectable |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Material | Plastic ABS / PC |
| Housing material | ABS(Housing), PMMA (Optics) |
| Active Head Material | PMMA |
| Diameter/Dimension | Cubic |
| Output type | Output Function |
| Short-circuit protection | Reverse Polarity Protection |
| Active Head Material | Storage temperature |
| Function Principle | Optic fiber amplifier |
| Functions | Optic fiber amplifier |
| Application | Function Principle |
| >20 MΩ 500 Vdc, between electronics and housing | Contact resistance |
