Explore performance details, construction highlights, applications, and technical information in one clear overview.

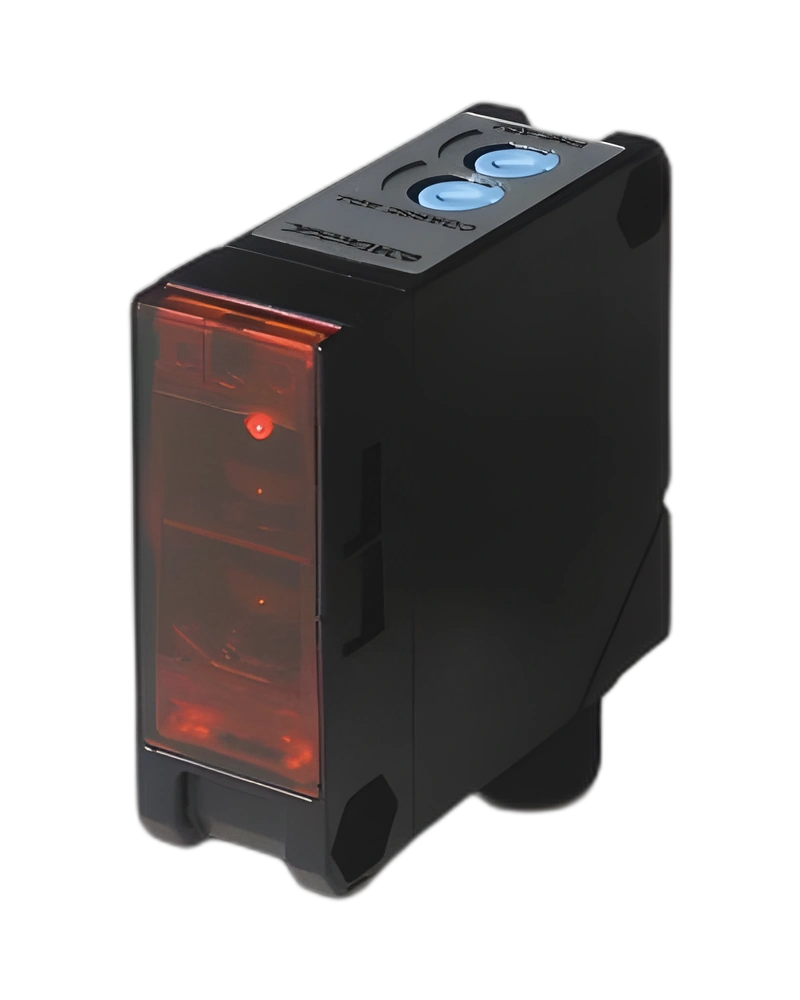

The S6T-5-B5-P - 961031010 - S6 Compact Photoelectric Sensors is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
The Datasensing S6T-5-B5-P - 961031010 is a precision photoelectric sensor designed for industrial applications. It delivers reliable detection with a PNP output and dark mode L/D selection via cable/connector.
Operates within a temperature range of -25°C to +55°C (without freeze) and is suitable for environments requiring robust mechanical protection. Storage temperature ranges from -25°C to +70°C.
The documented configuration includes Response time: 1ms; Nominal sensing distance: 5m; Emission: LED Red.
The documented configuration includes Output type: PNP - Dark mode L/D selectable by cable/connector; Operating Voltage: 10…30VDC; Switching frequency: 500Hz; No-Load supply current: ≤ 30mA; Load current: ≤100mA; Impulsive Overvoltage Protection: Yes; Output Function: L/D selectable by cable/connector.
The documented configuration includes Dimensions: 18x50x50; Storage temperature: - 25°C…+70°C; Operating Temperature: - 25°C…+ 55°C (Without freeze); Mechanical Protection: IP65; Storage temperature: 25°C…+70°C; Operating Temperature: 25°C…+ 55°C (Without freeze); Short-circuit protection: YES; Reverse Polarity Protection: Yes.
The documented configuration includes Housing material: ABS; Active Head Material: PMMA; Diameter/Dimension: Cubic; Short-circuit protection: Reverse Polarity Protection; Material: Housing material; Active Head Material: Storage temperature.
The documented configuration includes Function Principle: Polarized retroreflective; Functions: Polarized retroreflective; Application: Function Principle.
The documented configuration includes Connections: M12 plug; Interference to external light: according to EN 60947-5-2 : 2020; Shocks and vibrations: 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6).
| Feature | Specification |
|---|---|
| Output type | PNP - Dark mode L/D selectable by cable/connector |
| Response time | 1ms |
| Operating Voltage | 10…30VDC |
| Dimensions | 18x50x50 |
| Connections | M12 plug |
| Storage temperature | - 25°C…+70°C |
| Operating Temperature | - 25°C…+ 55°C (Without freeze) |
| Mechanical Protection | IP65 |
| Storage temperature | 25°C…+70°C |
| Operating Temperature | 25°C…+ 55°C (Without freeze) |
| Nominal sensing distance | 5m |
| Switching frequency | 500Hz |
| No-Load supply current | ≤ 30mA |
| Load current | ≤100mA |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
| Impulsive Overvoltage Protection | Yes |
| Output Function | L/D selectable by cable/connector |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Housing material | ABS |
| Active Head Material | PMMA |
| Diameter/Dimension | Cubic |
| Short-circuit protection | Reverse Polarity Protection |
| Material | Housing material |
| Active Head Material | Storage temperature |
| Function Principle | Polarized retroreflective |
| Functions | Polarized retroreflective |
| Emission | LED Red |
| Application | Function Principle |
