Product Summary

The S6T-5-A6-P - 961031000 - S6 Compact Photoelectric Sensors is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.

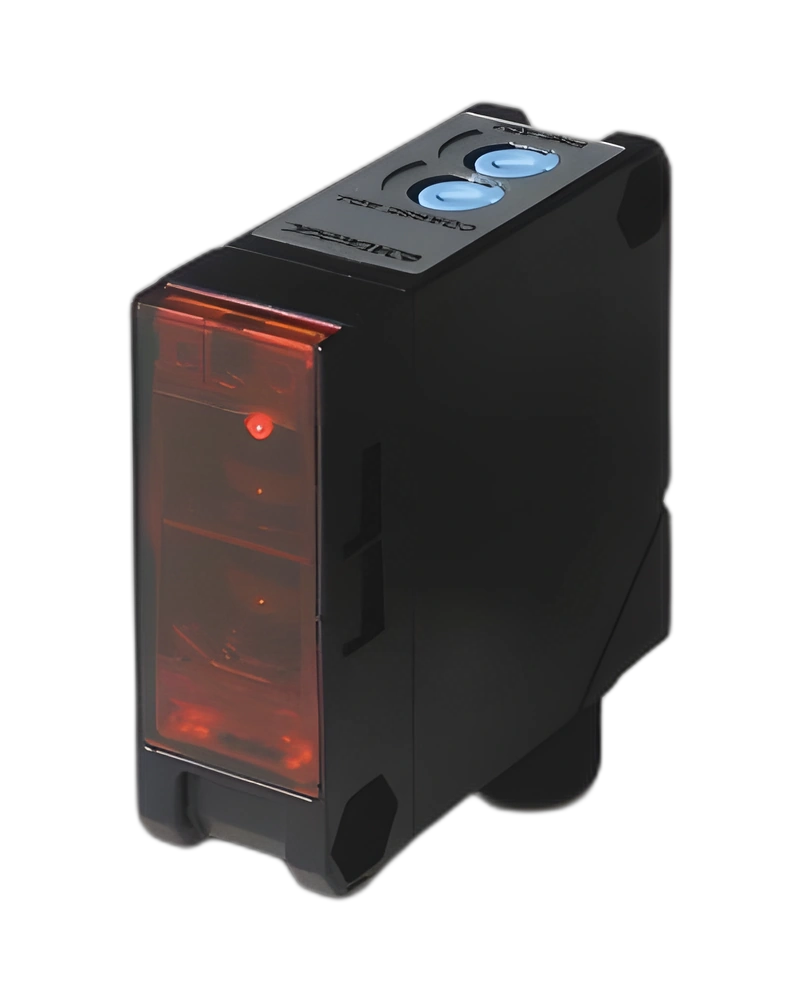

S6 Compact Photoelectric Sensor

The Datasensing S6T-5-A6-P - 961031000 is a precision-engineered photoelectric sensor designed for demanding industrial environments. It delivers reliable performance with a 1ms response time and PNP output that supports dark mode L/D selection via cable/connector.

Technical Specifications

• Operating Voltage: 10…30VDC
• Response Time: 1ms
• Dimensions: 18x50x50 mm
• Connections: M12 plug
• Operating Temperature: -25°C…+55°C (without freeze)
• Storage Temperature: -25°C…+70°C
• Protection: IP65

Key Features

• Robust IP65 mechanical protection for dust and water resistance
• Wide operating temperature range (-25°C to +55°C) for versatility in harsh conditions
• Compact 18x50x50 mm form factor for space-constrained installations

Performance

The documented configuration includes Response time: 1ms; Nominal sensing distance: 6m; Emission: LED Infrared.

Electrical and Interface

The documented configuration includes Output type: PNP - Dark mode L/D selectable by cable/connector; Operating Voltage: 10…30VDC; Switching frequency: 500Hz; No-Load supply current: ≤ 30mA; Load current: ≤100mA; Impulsive Overvoltage Protection: Yes; Output Function: L/D selectable by cable/connector.

Mechanical and Environmental

The documented configuration includes Dimensions: 18x50x50; Storage temperature: - 25°C…+70°C; Operating Temperature: - 25°C…+ 55°C (Without freeze); Mechanical Protection: IP65; Storage temperature: 25°C…+70°C; Operating Temperature: 25°C…+ 55°C (Without freeze); Short-circuit protection: YES; Reverse Polarity Protection: Yes.

Mechanical and Environmental – Additional Details

The documented configuration includes Housing material: ABS; Active Head Material: PMMA; Diameter/Dimension: Cubic; Short-circuit protection: Reverse Polarity Protection; Material: Housing material; Active Head Material: Storage temperature.

Configuration and Functional

The documented configuration includes Function Principle: Retroreflective; Functions: Retroreflective; Application: Function Principle.

General

The documented configuration includes Connections: M12 plug; Interference to external light: according to EN 60947-5-2 : 2020; Shocks and vibrations: 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6).
