Explore performance details, construction highlights, applications, and technical information in one clear overview.

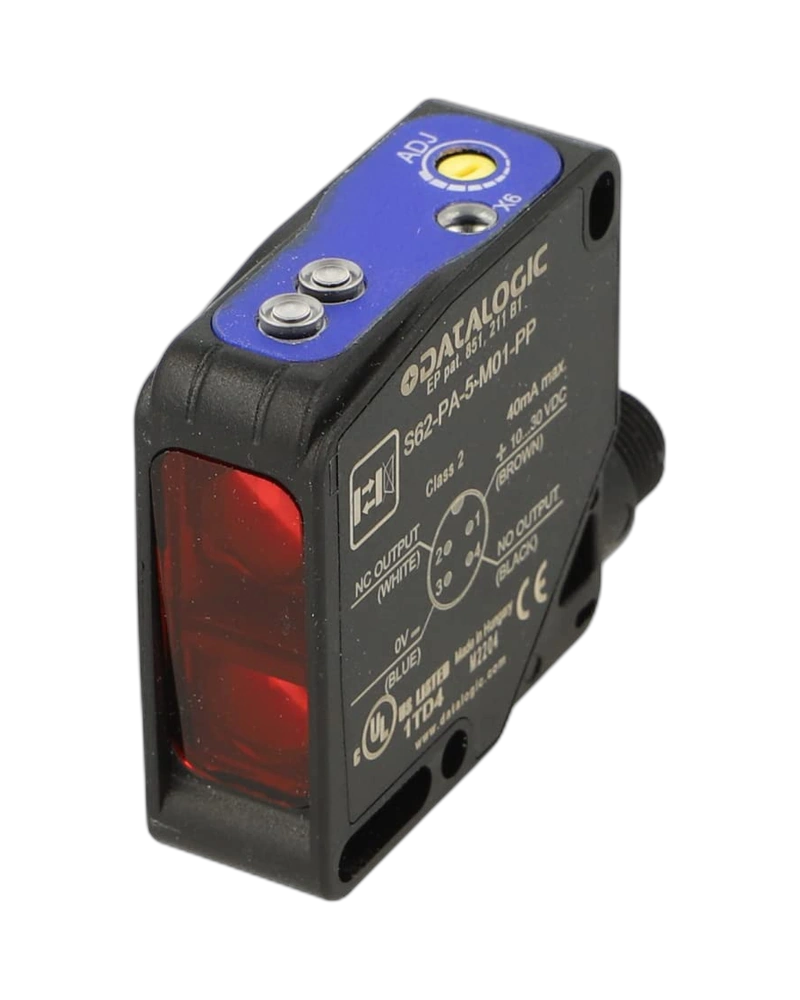

The S62-PA-5-B01-PP - 956211000 - S62 Compact Photoelectric Sensors is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
Engineered for precision industrial use, this sensor ensures robust performance with minimal electrical interference. Its compact design and IP67 rating make it suitable for harsh conditions.
Includes infrared LED or laser emission for reliable detection across various industrial applications.
The documented configuration includes Response time: 0,5; Nominal sensing distance: 8m; Emission: LED Red.
The documented configuration includes Output voltage drop: ≤2V@Iload=100mA; Output type: PNP NO+NC; Output Function: NO+NC; Operating Voltage: 10…30VDC; No-Load supply current: ≤ 30mA; Load current: ≤100mA; Impulsive Overvoltage Protection: Yes; Impulsive Overvoltage Protection: Insulation resistance.
The documented configuration includes Output type: Output Function.
The documented configuration includes Dimensions: 18x50x50; Storage temperature: - 25°C…+70°C; Mechanical Protection: IP67; Storage temperature: 25°C…+70°C; Insulation resistance: >20 MΩ 500 Vdc, between electronics and housing; Short-circuit protection: YES; Reverse Polarity Protection: Yes; Housing material: ABS / PMMA.
The documented configuration includes Active Head Material: PMMA; Diameter/Dimension: Cubic; Short-circuit protection: Reverse Polarity Protection; Material: Housing material; Active Head Material: Storage temperature; >20 MΩ 500 Vdc, between electronics and housing: Contact resistance.
The documented configuration includes Function Principle: Polarized retroreflective; Functions: Polarized retroreflective; Application: Function Principle.
The documented configuration includes Connections: M12 plug; Interference to external light: according to EN 60947-5-2 : 2020; Contact resistance: 500 Vac 1 min., between electronics and housing; Shocks and vibrations: 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6); ≤2V@Iload: 100mA.
| Feature | Specification |
|---|---|
| Output voltage drop | ≤2V@Iload=100mA |
| Output type | PNP NO+NC |
| Output Function | NO+NC |
| Response time | 0,5 |
| Operating Voltage | 10…30VDC |
| Dimensions | 18x50x50 |
| Connections | M12 plug |
| Storage temperature | - 25°C…+70°C |
| Mechanical Protection | IP67 |
| Storage temperature | 25°C…+70°C |
| Nominal sensing distance | 8m |
| No-Load supply current | ≤ 30mA |
| Load current | ≤100mA |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
| ≤2V@Iload | 100mA |
| Impulsive Overvoltage Protection | Yes |
| Impulsive Overvoltage Protection | Insulation resistance |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Housing material | ABS / PMMA |
| Active Head Material | PMMA |
| Diameter/Dimension | Cubic |
| Output type | Output Function |
| Short-circuit protection | Reverse Polarity Protection |
| Material | Housing material |
| Active Head Material | Storage temperature |
| Function Principle | Polarized retroreflective |
| Functions | Polarized retroreflective |
| Emission | LED Red |
| Application | Function Principle |
| >20 MΩ 500 Vdc, between electronics and housing | Contact resistance |
