Explore performance details, construction highlights, applications, and technical information in one clear overview.
The S6-5-M25 - S937830000 - S6 Compact Photoelectric Sensors is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.

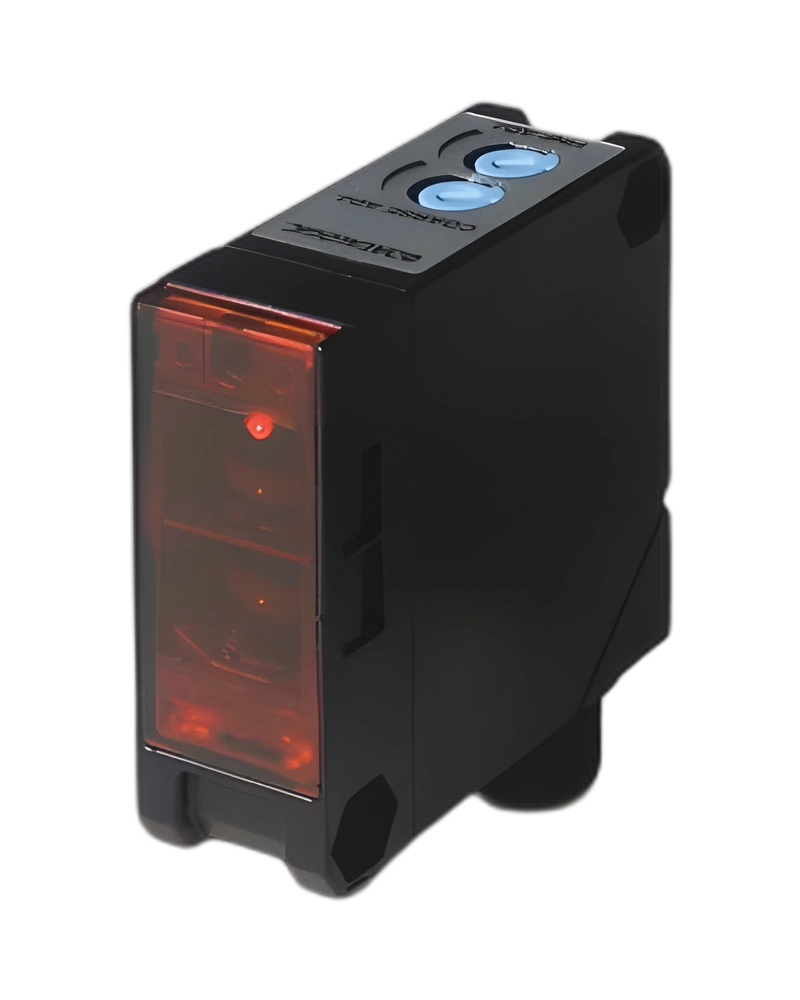

The Datasensing S6-5-M25 - S937830000 S6 Compact Photoelectric Sensors are a precision-engineered solution for industrial automation. These sensors deliver reliable detection with compact dimensions (18x50x50mm) and robust performance across demanding environments.
These sensors are designed for integration in industrial automation systems where precise object detection is critical. Their compact size and robust specifications ensure reliable operation in harsh conditions.
The documented configuration includes Response time: 1ms; Nominal sensing distance: 250mm; Emission: LED Infrared.
The documented configuration includes Output voltage drop: ≤1,5V@Iload=100mA; Output type: NPN / PNP L/D Selectable; Operating Voltage: 10…30VDC; Switching frequency: 500Hz; No-Load supply current: ≤ 30mA; Load current: ≤100mA; Impulsive Overvoltage Protection: Yes; Output Function: L/D Selectable.
The documented configuration includes Output type: Output Function.
The documented configuration includes Dimensions: 18x50x50; Storage temperature: - 25°C…+70°C; Operating Temperature: - 25°C…+ 55°C (Without freeze); Mechanical Protection: IP65; Storage temperature: 25°C…+70°C; Operating Temperature: 25°C…+ 55°C (Without freeze); Short-circuit protection: YES; Reverse Polarity Protection: Yes.
The documented configuration includes Housing material: ABS; Active Head Material: PMMA; Diameter/Dimension: Cubic; Short-circuit protection: Reverse Polarity Protection; Material: Housing material; Active Head Material: Storage temperature.
The documented configuration includes Function Principle: Blackground suppression; Functions: Background suppression; Application: Function Principle.
The documented configuration includes Connections: M12 plug; ≤1,5V@Iload: 100mA.
| Feature | Specification |
|---|---|
| Output voltage drop | ≤1,5V@Iload=100mA |
| Output type | NPN / PNP L/D Selectable |
| Response time | 1ms |
| Operating Voltage | 10…30VDC |
| Dimensions | 18x50x50 |
| Connections | M12 plug |
| Storage temperature | - 25°C…+70°C |
| Operating Temperature | - 25°C…+ 55°C (Without freeze) |
| Mechanical Protection | IP65 |
| Storage temperature | 25°C…+70°C |
| Operating Temperature | 25°C…+ 55°C (Without freeze) |
| Nominal sensing distance | 250mm |
| Switching frequency | 500Hz |
| No-Load supply current | ≤ 30mA |
| Load current | ≤100mA |
| ≤1,5V@Iload | 100mA |
| Impulsive Overvoltage Protection | Yes |
| Output Function | L/D Selectable |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Housing material | ABS |
| Active Head Material | PMMA |
| Diameter/Dimension | Cubic |
| Output type | Output Function |
| Short-circuit protection | Reverse Polarity Protection |
| Material | Housing material |
| Active Head Material | Storage temperature |
| Function Principle | Blackground suppression |
| Functions | Background suppression |
| Emission | LED Infrared |
| Application | Function Principle |
