Explore performance details, construction highlights, applications, and technical information in one clear overview.
The S6-5-C200 - 950201150 - S6 Compact Photoelectric Sensors is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.

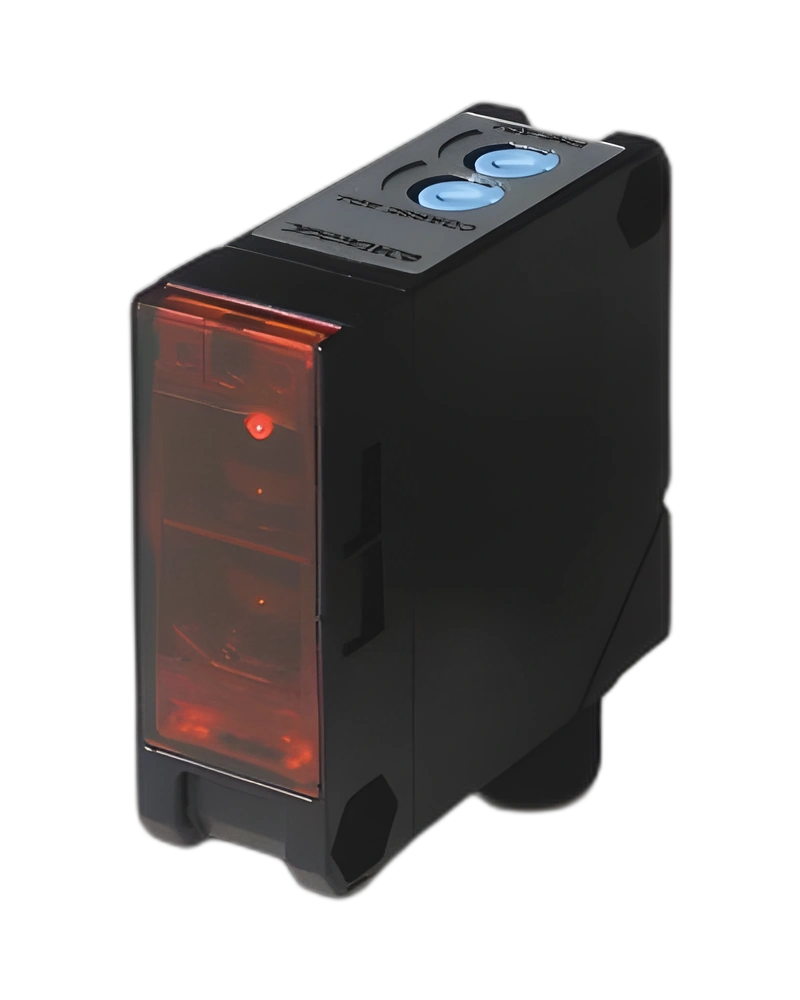

The Datasensing S6-5-C200 - 950201150 S6 Compact Photoelectric Sensor delivers reliable object detection in industrial applications with a compact 18x50x50mm form factor. This sensor features NPN/PPN output selection, a 1ms response time, and operates within 10-30VDC.
The documented configuration includes Response time: 1ms; Nominal sensing distance: 2m; Emission: LED Infrared; Diffuse beam: Diffuse beam.
The documented configuration includes Output voltage drop: ≤1,5V@Iload=100mA; Output type: NPN / PNP L/D Selectable; Operating Voltage: 10…30VDC; Switching frequency: 500Hz; No-Load supply current: ≤ 30mA; Load current: ≤100mA; Impulsive Overvoltage Protection: Yes; Impulsive Overvoltage Protection: Insulation resistance.
The documented configuration includes Output Function: L/D Selectable; Output type: Output Function.
The documented configuration includes Dimensions: 18x50x50; Storage temperature: - 25°C…+70°C; Operating Temperature: - 25°C…+ 55°C (Without freeze); Mechanical Protection: IP65; Storage temperature: 25°C…+70°C; Operating Temperature: 25°C…+ 55°C (Without freeze); Insulation resistance: >20 MΩ 500 Vdc, between electronics and housing; Short-circuit protection: YES.
The documented configuration includes Reverse Polarity Protection: Yes; Housing material: ABS; Active Head Material: PMMA; Diameter/Dimension: Cubic; Short-circuit protection: Reverse Polarity Protection; Material: Housing material; Active Head Material: Storage temperature; >20 MΩ 500 Vdc, between electronics and housing: Contact resistance.
The documented configuration includes Function Principle: Diffuse beam; Functions: Diffuse beam; Application: Function Principle.
The documented configuration includes Connections: M12 plug; Interference to external light: according to EN 60947-5-2 : 2020; Contact resistance: 500 Vac 1 min., between electronics and housing; Shocks and vibrations: 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6); ≤1,5V@Iload: 100mA.
| Feature | Specification |
|---|---|
| Output voltage drop | ≤1,5V@Iload=100mA |
| Output type | NPN / PNP L/D Selectable |
| Response time | 1ms |
| Operating Voltage | 10…30VDC |
| Dimensions | 18x50x50 |
| Connections | M12 plug |
| Storage temperature | - 25°C…+70°C |
| Operating Temperature | - 25°C…+ 55°C (Without freeze) |
| Mechanical Protection | IP65 |
| Storage temperature | 25°C…+70°C |
| Operating Temperature | 25°C…+ 55°C (Without freeze) |
| Nominal sensing distance | 2m |
| Switching frequency | 500Hz |
| No-Load supply current | ≤ 30mA |
| Load current | ≤100mA |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
| ≤1,5V@Iload | 100mA |
| Impulsive Overvoltage Protection | Yes |
| Impulsive Overvoltage Protection | Insulation resistance |
| Output Function | L/D Selectable |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Housing material | ABS |
| Active Head Material | PMMA |
| Diameter/Dimension | Cubic |
| Output type | Output Function |
| Short-circuit protection | Reverse Polarity Protection |
| Material | Housing material |
| Active Head Material | Storage temperature |
| Function Principle | Diffuse beam |
| Functions | Diffuse beam |
| Emission | LED Infrared |
| Application | Function Principle |
| Diffuse beam | Diffuse beam |
| >20 MΩ 500 Vdc, between electronics and housing | Contact resistance |
