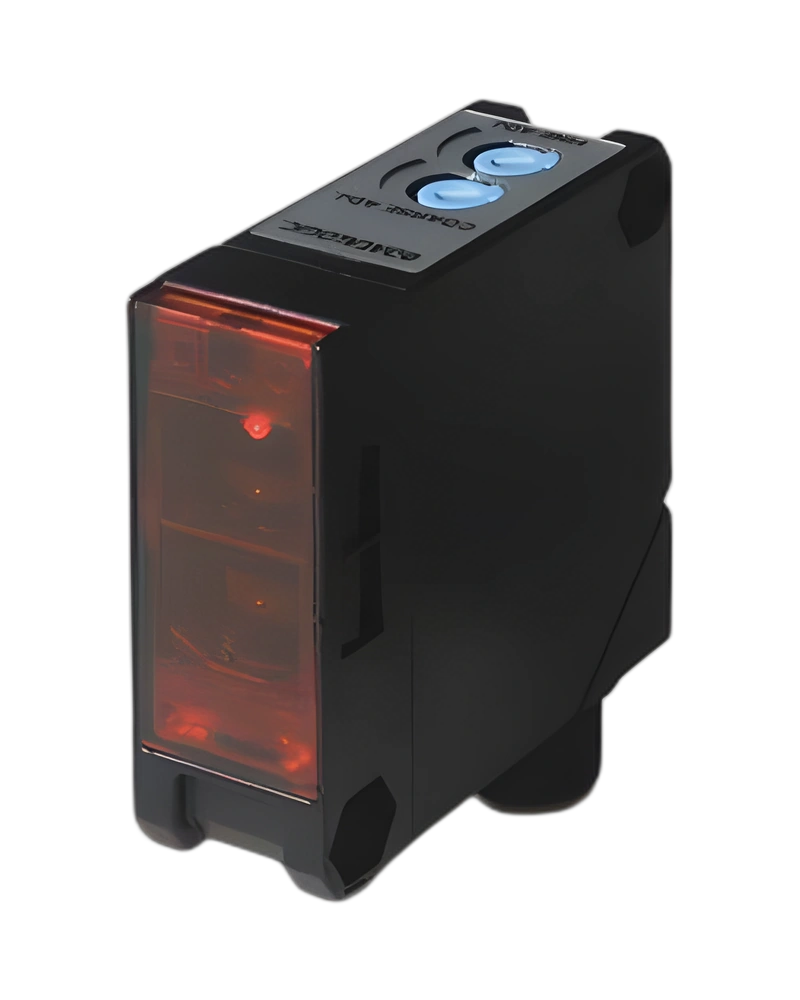

The S6-1-G20 - S937130090 - S6 Compact Photoelectric Sensors is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
The Datasensing S6-1-G20 - S937130090 S6 Compact Photoelectric Sensors deliver precise detection in industrial environments with a 20m nominal sensing distance. Designed for reliability, these sensors operate across 24...240 VAC and maintain performance within -25°C to +55°C operating temperatures (without freeze).
The documented configuration includes Nominal sensing distance: 20m; Response time: n/a; Emission: LED Infrared; Through beam emitter: Through beam emitter.
The documented configuration includes Operating Voltage: 24...240 VAC; Switching frequency: 16Hz; No-Load supply current: ≤ 40mA; Load current: ≤3A; Output type: Switching frequency.
The documented configuration includes Dimensions: 18x50x50; Storage temperature: - 25°C…+70°C; Operating Temperature: - 25°C…+ 55°C (Without freeze); Mechanical Protection: IP65; Storage temperature: 25°C…+70°C; Operating Temperature: 25°C…+ 55°C (Without freeze); Housing material: ABS; Active Head Material: PMMA.
The documented configuration includes Diameter/Dimension: Cubic; Material: Housing material; Active Head Material: Storage temperature.
The documented configuration includes Function Principle: Through beam emitter; Functions: Through beam emitter; Application: Function Principle.
The documented configuration includes Connections: 2m cable.
| Feature | Specification |
|---|---|
| Operating Voltage | 24...240 VAC |
| Dimensions | 18x50x50 |
| Connections | 2m cable |
| Storage temperature | - 25°C…+70°C |
| Operating Temperature | - 25°C…+ 55°C (Without freeze) |
| Mechanical Protection | IP65 |
| Storage temperature | 25°C…+70°C |
| Operating Temperature | 25°C…+ 55°C (Without freeze) |
| Nominal sensing distance | 20m |
| Switching frequency | 16Hz |
| No-Load supply current | ≤ 40mA |
| Load current | ≤3A |
| Response time | n/a |
| Housing material | ABS |
| Active Head Material | PMMA |
| Diameter/Dimension | Cubic |
| Output type | Switching frequency |
| Material | Housing material |
| Active Head Material | Storage temperature |
| Function Principle | Through beam emitter |
| Functions | Through beam emitter |
| Emission | LED Infrared |
| Application | Function Principle |
| Through beam emitter | Through beam emitter |
