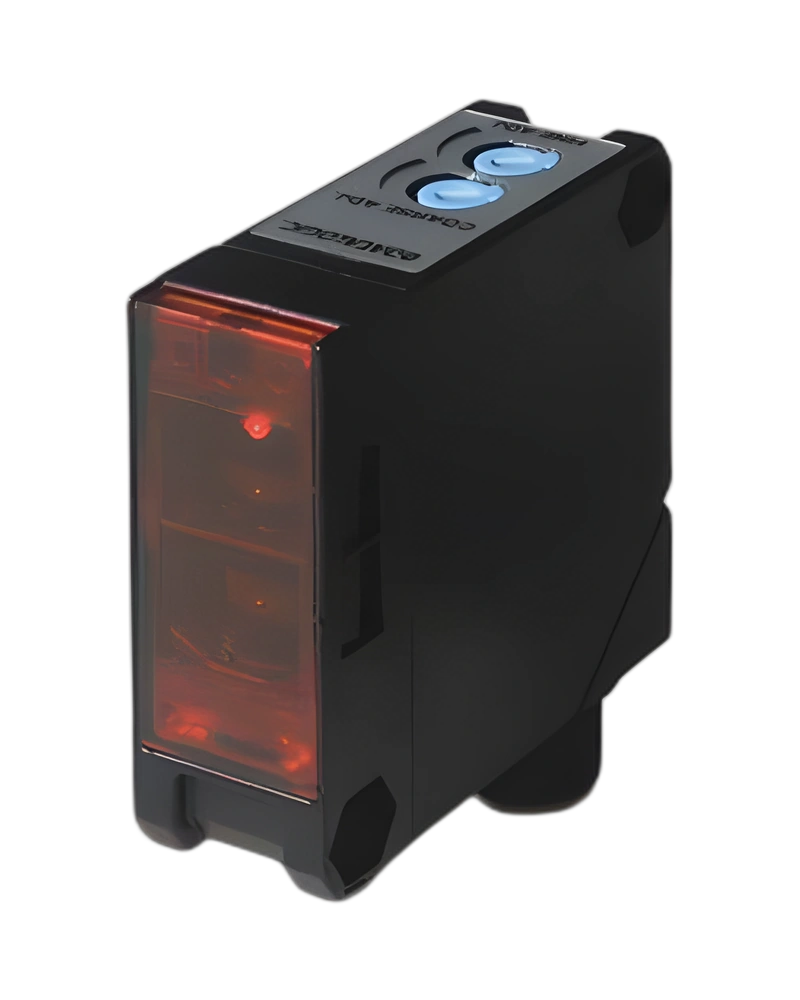

The S6-1-C90 - S937530090 - S6 Compact Photoelectric Sensors is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
The Datasensing S6-1-C90 - S937530090 S6 Compact Photoelectric Sensors are a robust industrial solution designed for precise object detection in demanding environments. With a 50x50mm compact footprint, these sensors deliver reliable performance across a wide range of industrial applications.
The documented configuration includes Response time: 30ms; Nominal sensing distance: 900mm; Emission: LED Infrared; Diffuse beam: Diffuse beam.
The documented configuration includes Operating Voltage: 24...240 VAC; Switching frequency: 16Hz; No-Load supply current: ≤ 40mA; Load current: ≤3A; Output type: Relay SPDT L/D selectable by trimmer; Output Function: L/D selectable by trimmer; Output type: Output Function.
The documented configuration includes Dimensions: 18x50x50; Storage temperature: - 25°C…+70°C; Operating Temperature: - 25°C…+ 55°C (Without freeze); Mechanical Protection: IP65; Storage temperature: 25°C…+70°C; Operating Temperature: 25°C…+ 55°C (Without freeze); Housing material: ABS; Active Head Material: PMMA.
The documented configuration includes Diameter/Dimension: Cubic; Material: Housing material; Active Head Material: Storage temperature.
The documented configuration includes Function Principle: Diffuse beam; Functions: Diffuse beam; Application: Function Principle.
The documented configuration includes Connections: 2m cable.
| Feature | Specification |
|---|---|
| Response time | 30ms |
| Operating Voltage | 24...240 VAC |
| Dimensions | 18x50x50 |
| Connections | 2m cable |
| Storage temperature | - 25°C…+70°C |
| Operating Temperature | - 25°C…+ 55°C (Without freeze) |
| Mechanical Protection | IP65 |
| Storage temperature | 25°C…+70°C |
| Operating Temperature | 25°C…+ 55°C (Without freeze) |
| Nominal sensing distance | 900mm |
| Switching frequency | 16Hz |
| No-Load supply current | ≤ 40mA |
| Load current | ≤3A |
| Output type | Relay SPDT L/D selectable by trimmer |
| Output Function | L/D selectable by trimmer |
| Housing material | ABS |
| Active Head Material | PMMA |
| Diameter/Dimension | Cubic |
| Output type | Output Function |
| Material | Housing material |
| Active Head Material | Storage temperature |
| Function Principle | Diffuse beam |
| Functions | Diffuse beam |
| Emission | LED Infrared |
| Application | Function Principle |
| Diffuse beam | Diffuse beam |
