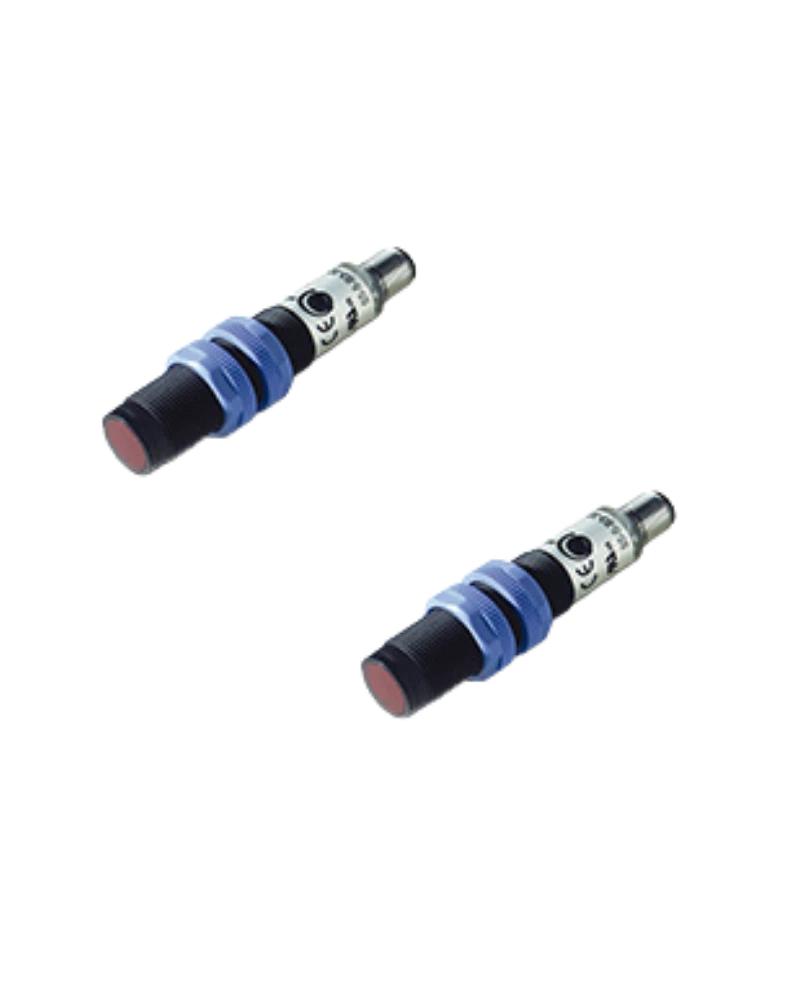

The S5-5-B3-37 - H5210737 - S5 Tubular Photoelectric Sensors is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
The Datasensing S5-5-B3-37 H5210737 tubular photoelectric sensor provides robust industrial detection capabilities with a diffuse reflection principle for medium distances up to 600mm. Its NPN/PNP output type supports dark or light selection, ensuring compatibility with diverse control systems.
Engineered for industrial environments, these sensors maintain consistent performance across wide temperature ranges and provide reliable detection with minimal response time. The diffuse reflection principle ensures effective operation within the specified sensing distance.
The documented configuration includes Response time: 1; Nominal sensing distance: 3m; Emission: LED Red.
The documented configuration includes Output type: NPN/PNP - Dark/Light sel.; Operating Voltage: 10…30VDC; Output type: Response time.
The documented configuration includes Dimensions: Ø18x84; Operating Temperature: - 15°C...+ 55°C (Without freeze); Operating Temperature: 15°C...+ 55°C (Without freeze); Material: Plastic ABS / PMMA.
The documented configuration includes Function Principle: Diffuse reflection (medium distance, ≤600mm); Functions: Polarized retroreflective; Application: Function Principle.
The documented configuration includes Connections: M12 plug; Time delay before availability: ≤200ms.
| Feature | Specification |
|---|---|
| Output type | NPN/PNP - Dark/Light sel. |
| Response time | 1 |
| Operating Voltage | 10…30VDC |
| Dimensions | Ø18x84 |
| Connections | M12 plug |
| Operating Temperature | - 15°C...+ 55°C (Without freeze) |
| Operating Temperature | 15°C...+ 55°C (Without freeze) |
| Nominal sensing distance | 3m |
| Function Principle | Diffuse reflection (medium distance, ≤600mm) |
| Time delay before availability | ≤200ms |
| Material | Plastic ABS / PMMA |
| Output type | Response time |
| Functions | Polarized retroreflective |
| Emission | LED Red |
| Application | Function Principle |
