It uses Polarized sensing.
The sensing principle is Polarized. The optical emission is Red (660 nm).
A switching frequency of 25 Hz. The thermal drift Sr is 10% Sr, with repeat accuracy of 5%.
The operating voltage is 20-253 VAC/ 20-60 Hz, with load current of 3A-250 VAC/3A-30 VDC (750VA/90W). Reverse polarity protection is Yes. Surge protection is Yes.
Ingress protection is rated IP65.
Dimensions are 26x86,6x50 and the connection is M12 Connector. Weight is 75 g.
The operating temperature range is - 25 °C…+ 70 °C (Non-freezing). EMC compatibility is EN 60947-5-2.

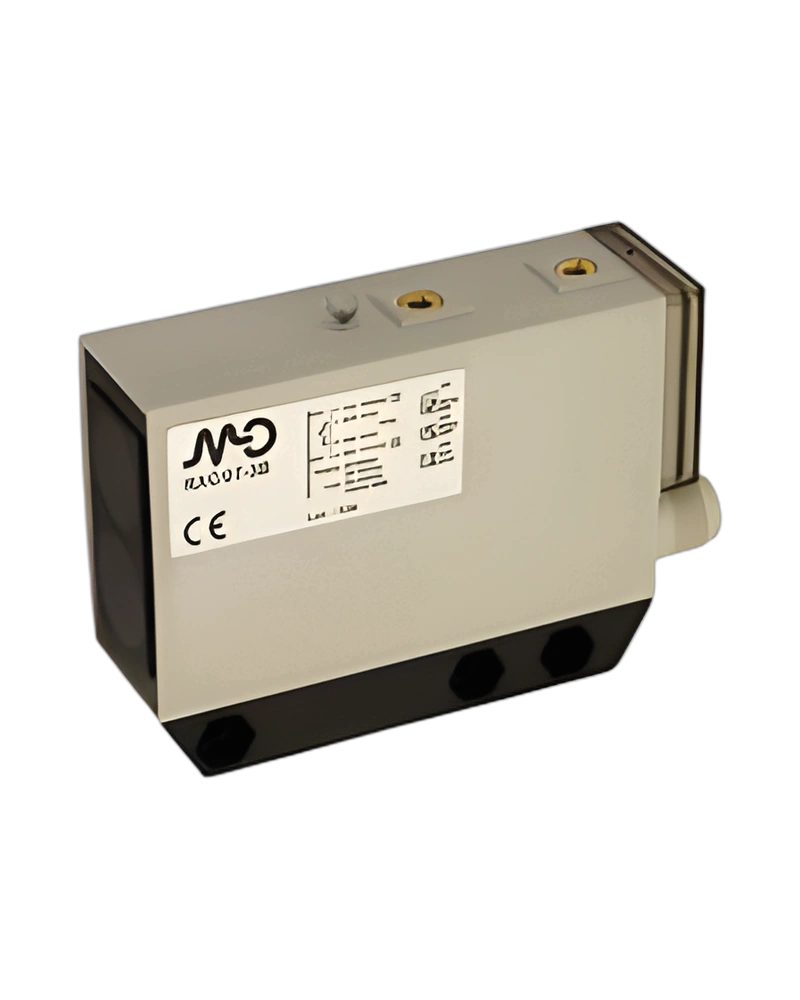

The manufacturer part number is RXP/0T-3A. This model is manufactured by M.D. Micro Detectors. Axial is Operating principle:.
Time to availability is 100 ms. The external-light interference limit is ≥ 10000 lx (Incandescent lamp).
RXP/0T-3A uses Polarized sensing. For electrical integration, it provides operating voltage 20-253 VAC/ 20-60 Hz, switching frequency 25 Hz. The physical configuration includes dimensions 26x86,6x50, M12 Connector connection. It is rated IP65 for an operating temperature range of - 25 °C…+ 70 °C (Non-freezing).
| Specification | Details |
|---|---|
| Model | RXP/0T-3A |
| Manufacturer part number | RXP/0T-3A |
| Manufacturer | M.D. Micro Detectors |
| Switching frequency | 25 Hz |
| Weight | 75 g |
| Operating temperature | - 25 °C…+ 70 °C (Non-freezing) |
| Dimensions | 26x86,6x50 |
| Connection | M12 Connector |
| Optical position | Axial |
| Operating principle | Polarized |
| Thermal drift Sr | 10% Sr |
| Repeat accuracy | 5% |
| Degree of protection | IP65 |
| EMC compatibility | EN 60947-5-2 |
| Time to availability | 100 ms |
| Reverse polarity protection | Yes |
| Surge protection | Yes |
| External light interference | ≥ 10000 lx (Incandescent lamp) |
| Operating voltage | 20-253 VAC/ 20-60 Hz |
| Load current | 3A-250 VAC/3A-30 VDC (750VA/90W) |
| Emission | Red (660 nm) |
