Explore performance details, construction highlights, applications, and technical information in one clear overview.
The optical emission is Infrared (880 nm). A switching frequency of 25 Hz.
The thermal drift Sr is 10% Sr, with repeat accuracy of 5%.
The operating voltage is 20-253 VAC/ 20-60 Hz, with load current of 3A-250 VAC/3A-30 VDC (750VA/90W). Reverse polarity protection is Yes. Surge protection is Yes.
Ingress protection is rated IP65.
Dimensions are 26x86,6x61 and the connection is M12 Connector. Weight is 90 g.
The operating temperature range is - 25 °C…+ 70 °C (Non-freezing). EMC compatibility is EN 60947-5-2.

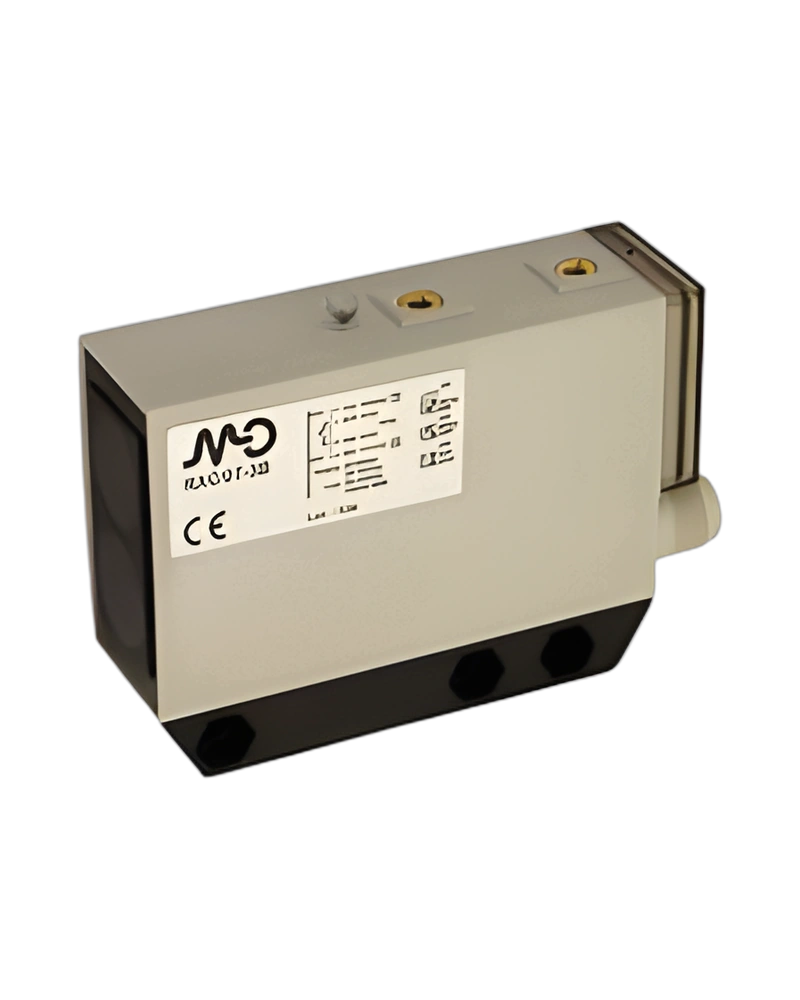

The manufacturer part number is RX8/0T-3B37. This model is manufactured by M.D. Micro Detectors. Axial is Operating principle:.
Time to availability is 100 ms. The external-light interference limit is ≥ 5000 lx (Incandescent lamp).
For electrical integration, it provides operating voltage 20-253 VAC/ 20-60 Hz, switching frequency 25 Hz. The physical configuration includes dimensions 26x86,6x61, M12 Connector connection. It is rated IP65 for an operating temperature range of - 25 °C…+ 70 °C (Non-freezing).
| Specification | Details |
|---|---|
| Model | RX8/0T-3B37 |
| Manufacturer part number | RX8/0T-3B37 |
| Manufacturer | M.D. Micro Detectors |
| Switching frequency | 25 Hz |
| Weight | 90 g |
| Operating temperature | - 25 °C…+ 70 °C (Non-freezing) |
| Dimensions | 26x86,6x61 |
| Connection | M12 Connector |
| Optical position | Axial |
| Thermal drift Sr | 10% Sr |
| Repeat accuracy | 5% |
| Degree of protection | IP65 |
| EMC compatibility | EN 60947-5-2 |
| Time to availability | 100 ms |
| Reverse polarity protection | Yes |
| Surge protection | Yes |
| External light interference | ≥ 5000 lx (Incandescent lamp) |
| Operating voltage | 20-253 VAC/ 20-60 Hz |
| Load current | 3A-250 VAC/3A-30 VDC (750VA/90W) |
| Emission | Infrared (880 nm) |
