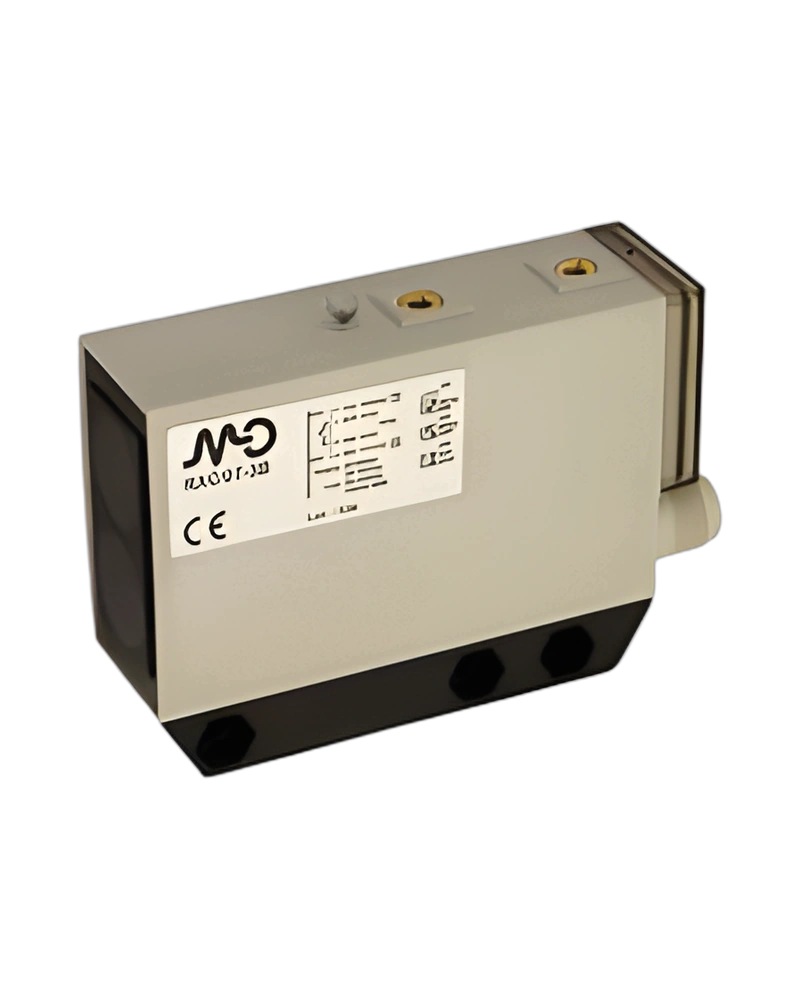

RX8/0T-3A37 is a maxi cubic photoelectric sensor for object presence and position detection. It uses diffuse reflection as its sensing or measurement method. The specified operating range or reference distance is 4.5 m. The output is Relay. The supply is 20…60 VDC / 20…253 VAC. The connection is M12. The housing is Polycarbonate.
The optical function is Diffuse reflection. The sensing distance is 4.5 m. Emission is Infrared, 880 nm.
The specified value of 4.5 m gives the reference distance or measurement envelope for the device. The diffuse reflection arrangement determines how the device responds to the target or measures distance.
The supply is 20…60 VDC / 20…253 VAC. The output is Relay. The switching frequency is 25 Hz. The timer function is Timer.
The supply of 20…60 VDC / 20…253 VAC defines the required operating voltage. The Relay output defines the switching or signal arrangement. The switching frequency is 25 Hz.
The housing is Polycarbonate. The connection is M12. Protection is rated IP65. The operating temperature range is -25…+60 °C. The mounting arrangement is Without fixing slide.
The Polycarbonate housing provides the specified mechanical format. The M12 connection provides the stated physical interface. Protection is rated IP65. The operating temperature range is -25…+60 °C.
RX8/0T-3A37 combines the maxi cubic photoelectric sensor characteristics given in the product specification. The sensor type is Maxi cubic photoelectric sensor. The optical function is Diffuse reflection. The sensing distance is 4.5 m. The output is Relay. The supply is 20…60 VDC / 20…253 VAC. The connection is M12. These technical values describe the sensing, electrical and mechanical properties of RX8/0T-3A37.
| Specification | Value |
|---|---|
| Model | RX8/0T-3A37 |
| Sensor type | Maxi cubic photoelectric sensor |
| Optical function | Diffuse reflection |
| Nominal sensing distance | 4.5 m |
| Supply voltage | 20…60 VDC / 20…253 VAC |
| Output | Relay |
| Timer | Timer |
| Connection | M12 |
| Fixing | Without fixing slide |
| Emission | Infrared, 880 nm |
| Switching frequency | 25 Hz |
| Protection | IP65 |
| Operating temperature | -25…+60 °C |
| Housing | Polycarbonate |
