The optical emission is Infrared (880 nm). A switching frequency of 500 Hz.
The thermal drift Sr is 10% Sr, with repeat accuracy of 5%.
The output type is DECOUT (NPN, PNP). The operating voltage is 10-30 VDC, with load current of ≤ 100 mA.
No-load supply current is 25 mA and leakage current is limited to ≤ 10 µA. Maximum ripple is ≤ 10%.
Short-circuit protection is Yes. Reverse polarity protection is Yes. Ingress protection is rated IP65.
Dimensions are 26x86,6x61 and the connection is M12 Connector. Weight is 90 g.
The operating temperature range is - 25 °C…+ 70 °C (Non-freezing). EMC compatibility is EN 60947-5-2.

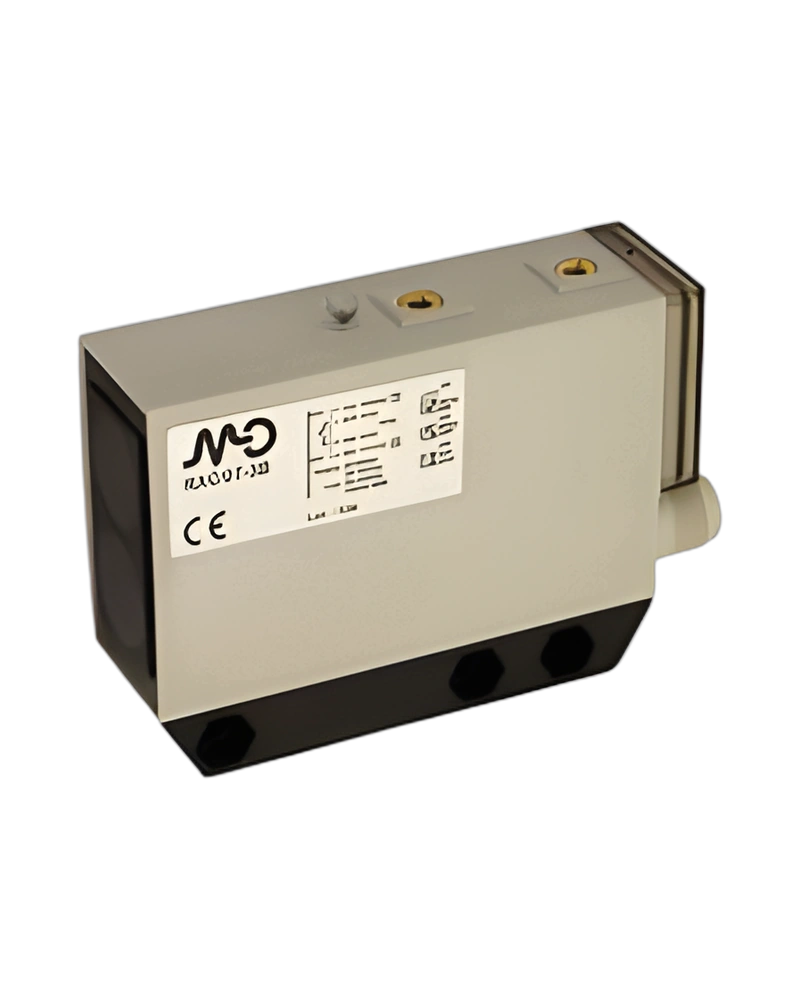

The manufacturer part number is RX8/0T-1B37. This model is manufactured by M.D. Micro Detectors. Axial is Operating principle:.
Time to availability is 100 ms. The external-light interference limit is ≥ 5000 lx (Incandescent lamp).
For electrical integration, it provides output type DECOUT (NPN, PNP), operating voltage 10-30 VDC, switching frequency 500 Hz. The physical configuration includes dimensions 26x86,6x61, M12 Connector connection. It is rated IP65 for an operating temperature range of - 25 °C…+ 70 °C (Non-freezing).
| Specification | Details |
|---|---|
| Model | RX8/0T-1B37 |
| Manufacturer part number | RX8/0T-1B37 |
| Manufacturer | M.D. Micro Detectors |
| Output type | DECOUT ( NPN, PNP) |
| Switching frequency | 500 Hz |
| Weight | 90 g |
| Operating temperature | - 25 °C…+ 70 °C (Non-freezing) |
| Dimensions | 26x86,6x61 |
| Connection | M12 Connector |
| Optical position | Axial |
| Thermal drift Sr | 10% Sr |
| Repeat accuracy | 5% |
| Degree of protection | IP65 |
| EMC compatibility | EN 60947-5-2 |
| Time to availability | 100 ms |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Maximum ripple | ≤ 10% |
| External light interference | ≥ 5000 lx (Incandescent lamp) |
| Operating voltage | 10-30 VDC |
| Load current | ≤ 100 mA |
| No-load supply current | 25 mA |
| Leakage current | ≤ 10 µA |
| Emission | Infrared (880 nm) |
