Product Overview

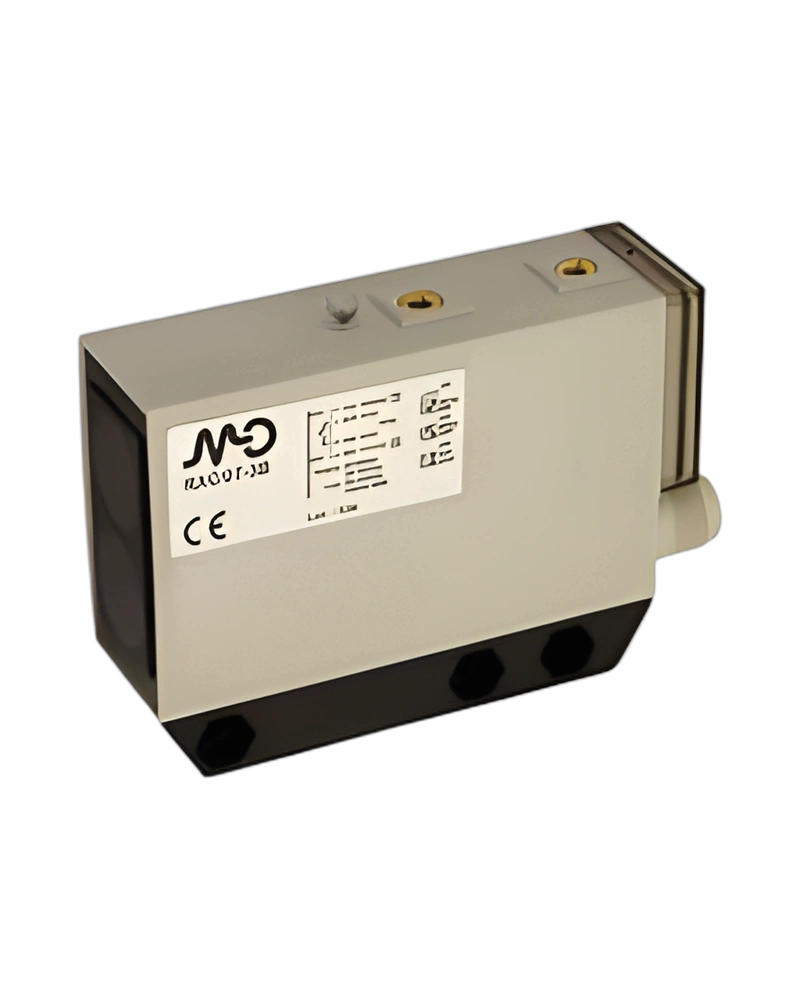

RX8/0T-1A37 is a maxi cubic photoelectric sensor for object presence and position detection. It uses diffuse reflection as its sensing or measurement method. The specified operating range or reference distance is 4.5 m. The output is DECOUT®. The supply is 10…30 VDC. The connection is M12. The housing is Polycarbonate.

Sensing and Technical Performance

The optical function is Diffuse reflection. The sensing distance is 4.5 m. Emission is Infrared, 880 nm.

The specified value of 4.5 m gives the reference distance or measurement envelope for the device. The diffuse reflection arrangement determines how the device responds to the target or measures distance.

Electrical and Interface Details

The supply is 10…30 VDC. The output is DECOUT®. The switching frequency is 500 Hz. The timer function is Timer.

The supply of 10…30 VDC defines the required operating voltage. The DECOUT® output defines the switching or signal arrangement. The switching frequency is 500 Hz.

Mechanical and Environmental Characteristics

The housing is Polycarbonate. The connection is M12. Protection is rated IP65. The operating temperature range is -25…+70 °C. The mounting arrangement is Without fixing slide.

The Polycarbonate housing provides the specified mechanical format. The M12 connection provides the stated physical interface. Protection is rated IP65. The operating temperature range is -25…+70 °C.

Key Product Features

• Sensor type: Maxi cubic photoelectric sensor
• Optical function: Diffuse reflection
• Nominal sensing distance: 4.5 m
• Emission: Infrared, 880 nm
• Output: DECOUT®
• Supply voltage: 10…30 VDC
• Switching frequency: 500 Hz
• Connection: M12
• Housing: Polycarbonate
• Protection: IP65
• Operating temperature: -25…+70 °C
• Fixing: Without fixing slide

Technical Details

The sensor type is Maxi cubic photoelectric sensor. The optical function is Diffuse reflection. The sensing distance is 4.5 m. The supply is 10…30 VDC. The output is DECOUT®. The timer function is Timer. The connection is M12. The mounting arrangement is Without fixing slide. Emission is Infrared, 880 nm. The switching frequency is 500 Hz.

Technical Information

RX8/0T-1A37 combines the maxi cubic photoelectric sensor characteristics given in the product specification. The sensor type is Maxi cubic photoelectric sensor. The optical function is Diffuse reflection. The sensing distance is 4.5 m. The output is DECOUT®. The supply is 10…30 VDC. The connection is M12. These technical values describe the sensing, electrical and mechanical properties of RX8/0T-1A37.
