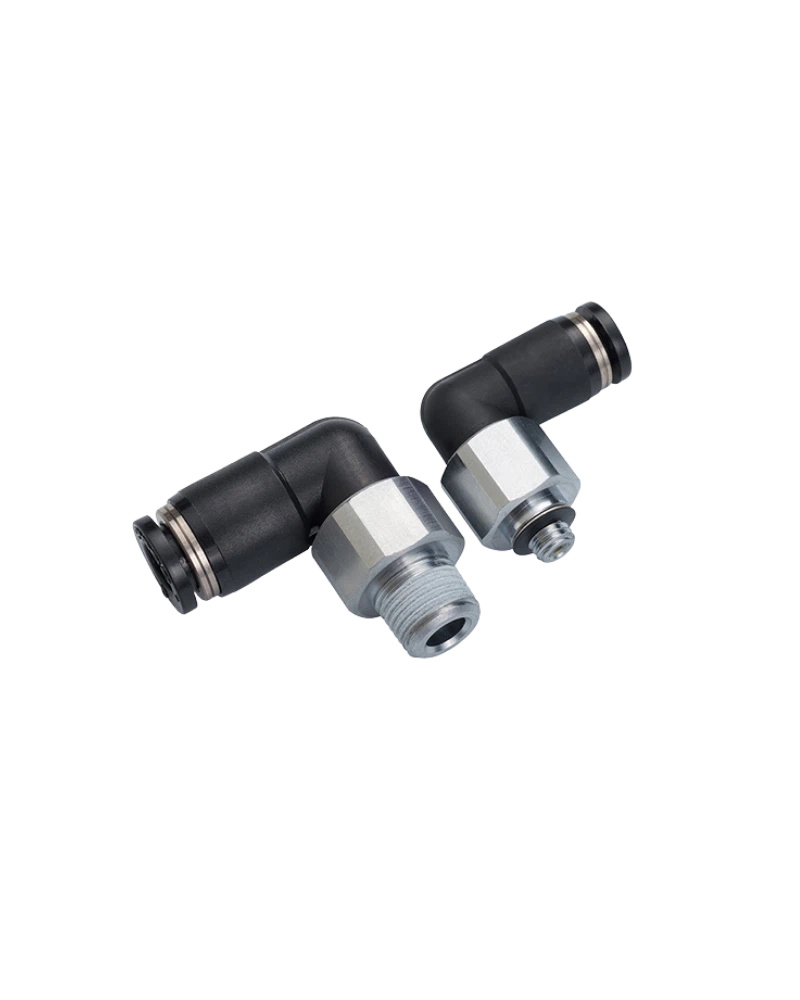

This special rotary-joint configuration combines the PISCO Rotary Joint and High Rotary Joint families with a reverse-thread screw arrangement for rotating machinery.
The rotary joint platform uses a push-in tube connection and a bearing-supported body. The reverse-thread special version changes the screw direction so the threaded connection is less prone to loosening under the specified clockwise-rotation condition.
The PISCO Rotary Joint and High Rotary Joint families specify air service, 1.0MPa maximum operating pressure, -100kPa maximum vacuum and 0 to 60℃ operation. Tube sizes range from φ4 to φ12 with metric, taper, UNF and NPT interfaces by model.
Choose the reverse-thread version only where the rotation direction and thread arrangement match the machine. Verify the exact model and tightening direction before installation.
| Specification | Details |
|---|---|
| Fluid medium | Air |
| Max. operating pressure | 1.0MPa |
| Max. vacuum | -100kPa |
| Operating temp. range | 0～60℃ (No freezing) |
| mm size (mm) | φ4, φ6, φ8, φ10, φ12 |
| inch size | φ5/32", φ3/16", φ1/4", φ5/16", φ3/8", φ1/2" |
| Metric male thread | M5x0.8, M6x1 |
| Taper pipe male thread | R1/8, R1/4, R3/8, R1/2 |
| UNF thread | 10-32UNF |
| NPT thread | NPT1/8, NPT1/4, NPT3/8, NPT1/2 |
| Main resin material | PBT |
| Main metal material | Brass with electroless nickel plating |
| Special construction | Reverse-thread screw |
| Special purpose | Helps prevent loosening on clockwise-rotating machines |
