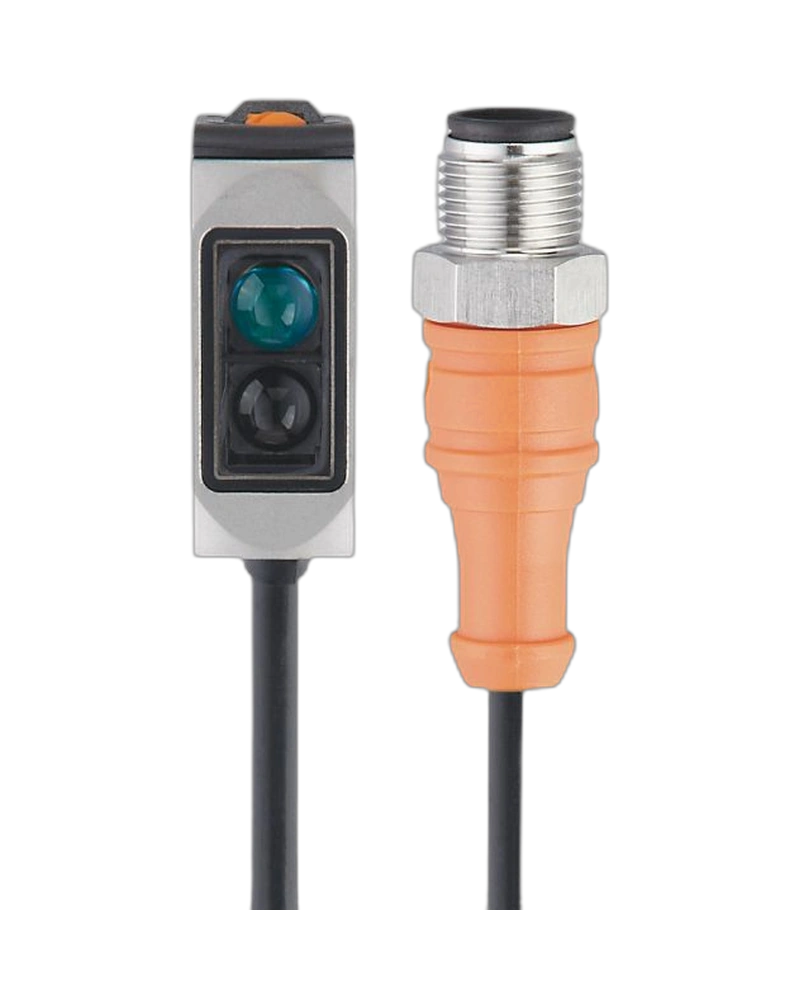

The IFM O6P301 is a polarisation-filter retro-reflective photoelectric sensor with a 0.05...5 m sensing range. It uses red 633 nm light and a PNP output with selectable light-on and dark-on modes. The sensor supports a 1000 Hz switching frequency for high-speed object detection. Stainless-steel 316L construction and IP65/IP67/IP68/IP69K protection support harsh environments. A 0.3 m PVC cable with M12 connector provides the electrical connection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The O6P301 uses a reflector-based optical arrangement. Its polarisation filter helps distinguish the reflector return from ordinary reflective surfaces. The sensing range reaches 5 m with the specified prismatic reflector. A 150 mm light spot is specified at the maximum range. This provides reliable object interruption detection.
The sensor provides a 1000 Hz switching frequency. This enables reliable detection of fast-moving products. Its PNP output can switch up to 100 mA. Light-on and dark-on modes are selectable. This makes the sensor suitable for fast conveyor and packaging applications.
The O6P301 uses stainless-steel 316L housing and PPSU plastic components. Protection ratings extend through IP65, IP67, IP68, and IP69K. The sensor operates from -25...80 °C. These features support wet, washdown, and demanding industrial environments.
0.05...5 m sensing range
Polarisation filter
Red 633 nm light
PNP output
Light-on/dark-on selectable
1000 Hz switching frequency
100 mA output
Stainless steel 316L
PPSU components
M12 connector
0.3 m PVC cable
IP65/IP67/IP68/IP69K
Yellow switching LED
Green operation LED
83 g weight
Conveyor systems
Packaging machinery
Product counting
Object detection
Sorting systems
Material handling
Food-processing machinery
Washdown equipment
Production lines
Industrial automation
The 1000 Hz switching frequency supports high-speed product detection. The polarisation filter improves reliability with the specified reflector. The sensor can therefore monitor rapidly moving products on conveyors. PNP output provides direct switching information. This makes the O6P301 suitable for high-speed automation.
| Specification | O6P301 |
|---|---|
| Product Type | Retro-reflective sensor |
| Model | O6P301 |
| Product Code | O6P-FPKG/0.30m/US |
| Sensing Principle | Retro-reflective |
| Sensing Range | 0.05...5 m |
| Reflector | Prismatic reflector Ø80, E20005 |
| Optical Filter | Polarisation filter |
| Light Type | Red light |
| Wavelength | 633 nm |
| Electrical Design | PNP |
| Output Function | Light-on/dark-on selectable |
| Supply Voltage | 10...30 V DC |
| Current Consumption | 20 mA at 24 V |
| Protection Class | III |
| Reverse Polarity | Yes |
| Voltage Drop | <2.5 V |
| Output Current | 100 mA |
| Switching Frequency | 1000 Hz |
| Short-Circuit Protection | Pulsed |
| Light Spot Diameter | 150 mm at max. range |
| Ambient Temperature | -25...80 °C |
| Protection | IP65/IP67/IP68/IP69K |
| Housing | Stainless steel 316L |
| Plastics | PPSU |
| Lens | PMMA |
| Connection | 0.3 m PVC cable |
| Cable Size | 3 × 0.25 mm² |
| Connector | M12 |
| Status LED | Yellow/green |
| Weight | Approx. 83 g |
| MTTF | 908 years |
