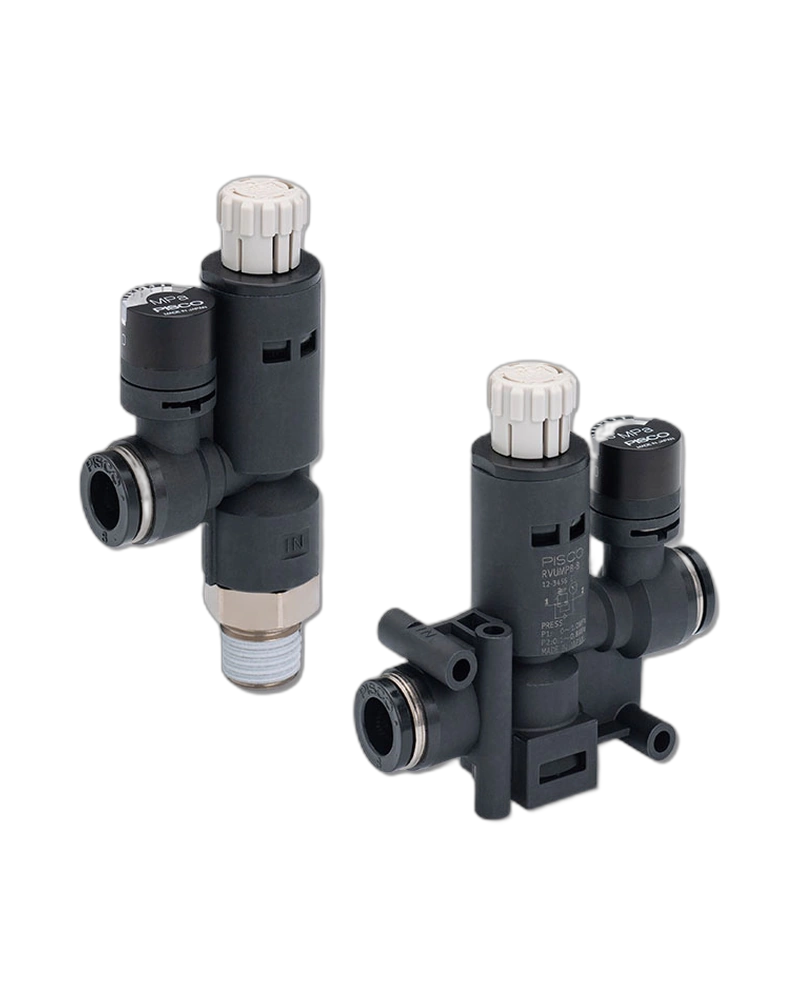

The Regulator Push-lock type is a compact pressure regulator designed for precise and convenient adjustment of air pressure in piping systems. Its push-lock knob allows users to quickly set and maintain desired output pressures without the need for tools, making it ideal for applications where frequent or mid-pipe pressure adjustments are required.
The main resin components are manufactured from PBT (polybutylene terephthalate), a standard engineering plastic well-suited for general environmental conditions. The primary metal parts are constructed from brass with an electroless nickel plating, providing corrosion resistance and durability in typical industrial settings. Seal rubber components use both NBR and HNBR materials—NBR for standard sealing performance and HNBR for enhanced ozone resistance in low-concentration ozone environments.
The regulator features a push-lock knob that enables secure and reliable pressure adjustment. It connects to piping via multiple interface options including metric male thread (M5x0.8), taper pipe male threads (R1/8, R1/4), UNF thread (10-32UNF), and NPT threads (NPT1/8, NPT1/4). This versatility ensures compatibility with a wide range of system designs and installation requirements.
The regulator operates within an air pressure range of 0 to 1.0MPa (0 to 145psi), with a pressure setting range from 0.1 to 0.8MPa (14.5 to 116psi). The gauge displays pressure up to 0.8MPa (116psi), and the operating temperature range is 0 to 60℃, ensuring stable performance in non-freezing environments.
Available in multiple sizes with metric diameters of φ4, φ6, and φ8 mm, corresponding to inch sizes of φ5/32, φ3/16, and φ1/4 (φ5/16). These size options allow selection based on specific pipe or system dimensions. The product is available in standard finishes with no color variants specified.
The push-lock mechanism ensures the regulator remains securely fastened during operation, preventing loosening caused by machine vibrations or oscillations. This design supports reliable pressure maintenance in dynamic environments and simplifies integration into existing systems where mid-pipe adjustments are necessary.
| Specification | Details |
|---|---|
| Fluid medium | Air |
| Operating pressure range | 0 to 1.0MPa | 0 to 145psi |
| Pressure setting range | 0.1 to 0.8MPa | 14.5 to 116psi |
| Indicated pressure range | 0 to 0.8MPa |
| Operating temperature range | 0 to 60℃ (No freezing) |
| Gauge display range | 0 to 116psi |
| Operating temp. range | 0 to 60℃ (No freezing) |
| mm size (mm) | φ4, φ6, φ8 |
| inch size | φ5/32, φ3/16, φ1/4, φ5/16 |
| Metric male thread | M5x0.8 |
| Taper pipe male thread | R1/8, R1/4 |
| UNF Thread | 10-32UNF |
| NPT Thread | NPT1/8, NPT1/4 |
| Main resin material | PBT |
| Main metal material | Brass with electroless nickel plating |
| Performance | The new design provides 1.3 times higher flow than the previous models. The set pressure fluctuation range has been reduced |
