The nominal sensing distance is 5 m.
The nominal sensing distance is 5 m. The optical emission is Red (660 nm).
A switching frequency of 750 Hz.
The output type is PNP/NPN. The output function is No.
The operating voltage is 10,8-30 VDC, with load current of ≤ 300 mA. Maximum ripple is ≤ 10%.
Short-circuit protection is Yes. Reverse polarity protection is Yes. Ingress protection is rated IP65.
Dimensions are 15x23x57 and the connection is M8 Connector. Weight is 70 g.
The operating temperature range is - 25 °C…+ 70 °C (Non-freezing). EMC compatibility is EN 60947-5-2.

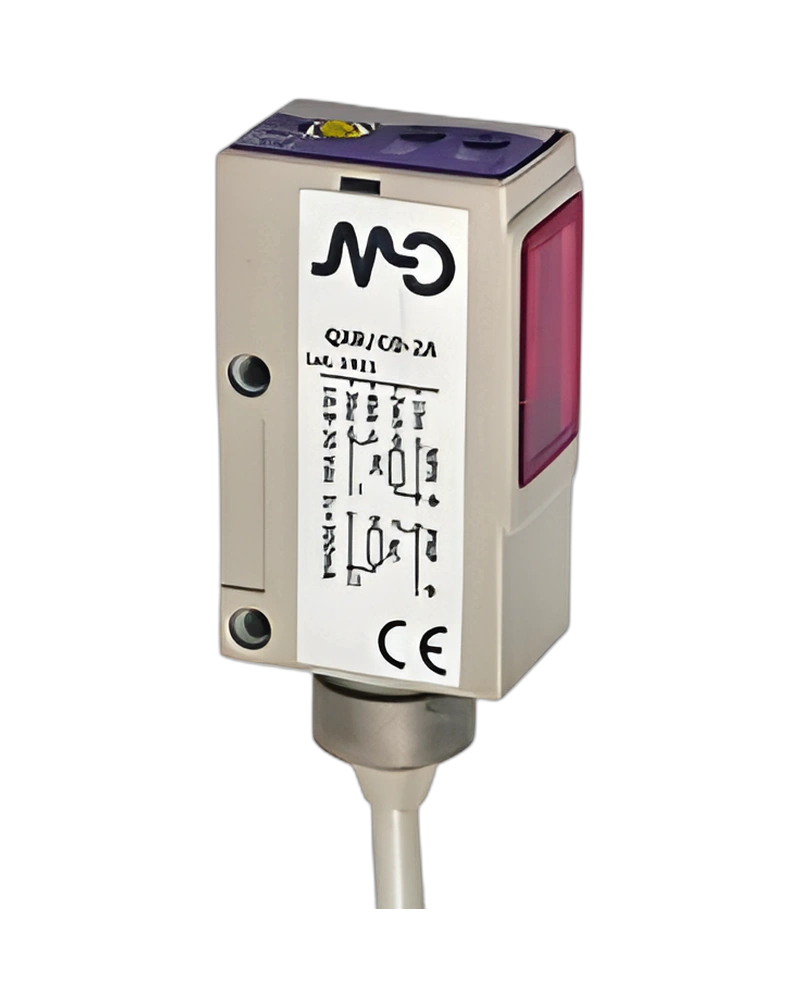

The manufacturer part number is QXC/A0-2F. This model is manufactured by M.D. Micro Detectors. Time to availability is 200 ms.
External-light interference is limited to 3000 lx Incandescent lamp, 10000 lx.
For electrical integration, it provides output type PNP/NPN, operating voltage 10,8-30 VDC, switching frequency 750 Hz. The physical configuration includes dimensions 15x23x57, M8 Connector connection. It is rated IP65 for an operating temperature range of - 25 °C…+ 70 °C (Non-freezing).
| Specification | Details |
|---|---|
| Model | QXC/A0-2F |
| Manufacturer part number | QXC/A0-2F |
| Manufacturer | M.D. Micro Detectors |
| Output type | PNP/NPN |
| Output function | No |
| Switching frequency | 750 Hz |
| Weight | 70 g |
| Operating temperature | - 25 °C…+ 70 °C (Non-freezing) |
| Dimensions | 15x23x57 |
| Connection | M8 Connector |
| Nominal sensing distance | 5 m |
| Repeat accuracy | ≤ 5% |
| Degree of protection | IP65 |
| EMC compatibility | EN 60947-5-2 |
| Time to availability | 200 ms |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Maximum ripple | ≤ 10% |
| External light interference | 3000 lx Incandescent lamp, 10000 lx |
| Operating voltage | 10,8-30 VDC |
| Load current | ≤ 300 mA |
| Leakage current | ≤ 100 µA @ 30 VDC |
| Emission | Red (660 nm) |
