The nominal sensing distance is 300 mm.
The nominal sensing distance is 300 mm. The optical emission is Infrared (880 nm).
A switching frequency of 750 Hz.
The output type is PNP/NPN. The output function is NC.
The operating voltage is 10,8-30 VDC, with load current of ≤ 300 mA. Maximum ripple is ≤ 10%.
Short-circuit protection is Yes. Reverse polarity protection is Yes. Ingress protection is rated IP65.
Dimensions are 15x23x49 and the connection is 2 m PVC Cable. Weight is 70 g.
The operating temperature range is - 25 °C…+ 70 °C (Non-freezing). EMC compatibility is EN 60947-5-2.

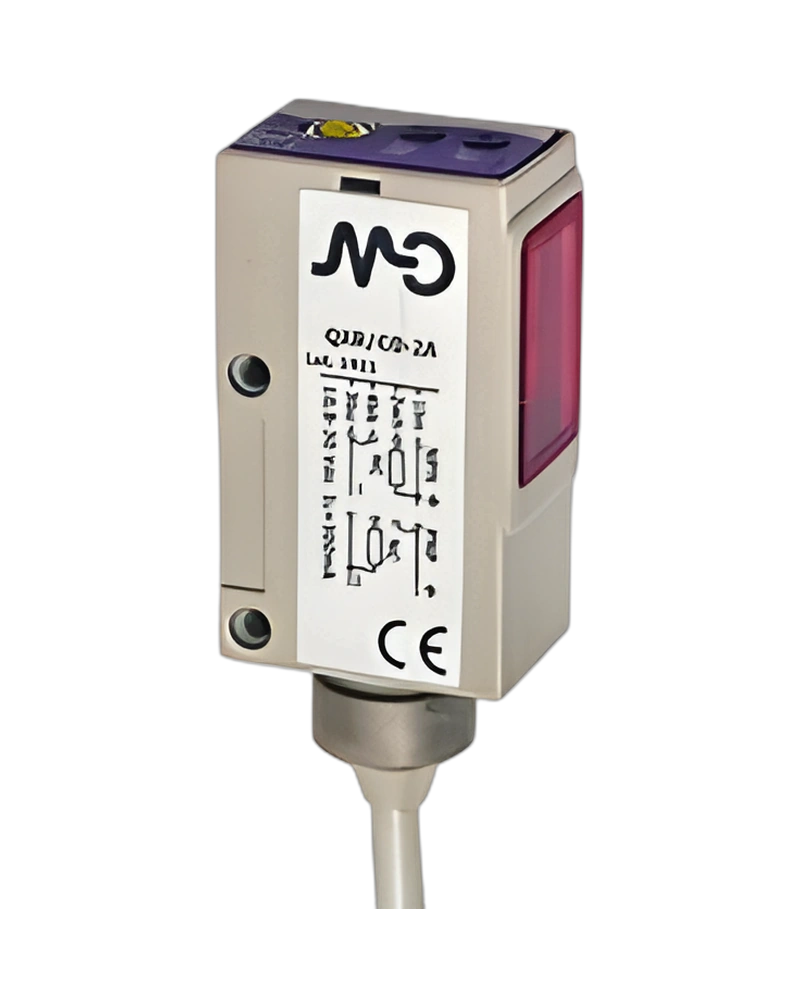

The manufacturer part number is QX3/C0-2A. This model is manufactured by M.D. Micro Detectors. Time to availability is 200 ms.
External-light interference is limited to 3000 lx Incandescent lamp, 10000 lx.
For electrical integration, it provides output type PNP/NPN, operating voltage 10,8-30 VDC, switching frequency 750 Hz. The physical configuration includes dimensions 15x23x49, 2 m PVC Cable connection. It is rated IP65 for an operating temperature range of - 25 °C…+ 70 °C (Non-freezing).
| Specification | Details |
|---|---|
| Model | QX3/C0-2A |
| Manufacturer part number | QX3/C0-2A |
| Manufacturer | M.D. Micro Detectors |
| Output type | PNP/NPN |
| Output function | NC |
| Switching frequency | 750 Hz |
| Weight | 70 g |
| Operating temperature | - 25 °C…+ 70 °C (Non-freezing) |
| Dimensions | 15x23x49 |
| Connection | 2 m PVC Cable |
| Nominal sensing distance | 300 mm |
| Repeat accuracy | ≤ 5% |
| Degree of protection | IP65 |
| EMC compatibility | EN 60947-5-2 |
| Time to availability | 200 ms |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Maximum ripple | ≤ 10% |
| External light interference | 3000 lx Incandescent lamp, 10000 lx |
| Operating voltage | 10,8-30 VDC |
| Load current | ≤ 300 mA |
| Leakage current | ≤ 100 µA @ 30 VDC |
| Emission | Infrared (880 nm) |
