Explore performance details, construction highlights, applications, and technical information in one clear overview.
It uses Polarized sensing. The nominal sensing distance is 0.2…6 m.
The sensing principle is Polarized. Its Axial optical arrangement is paired with a nominal sensing distance of 0.2…6 m.
The optical emission is Red. A switching frequency of 20 Hz.
The operating voltage is 12-240 VDC/ 24-240 VAC/50-60 Hz. Short-circuit protection is Yes. Reverse polarity protection is Yes.
Ingress protection is rated IP67.
Dimensions are 50X50 mm and the connection is 2 m PVC Cable. Weight is 200 g.
The operating temperature range is - 20 °C…+ 60 °C (UL omologation 0 °C…60 °C). EMC compatibility is EN 60947-5-2.

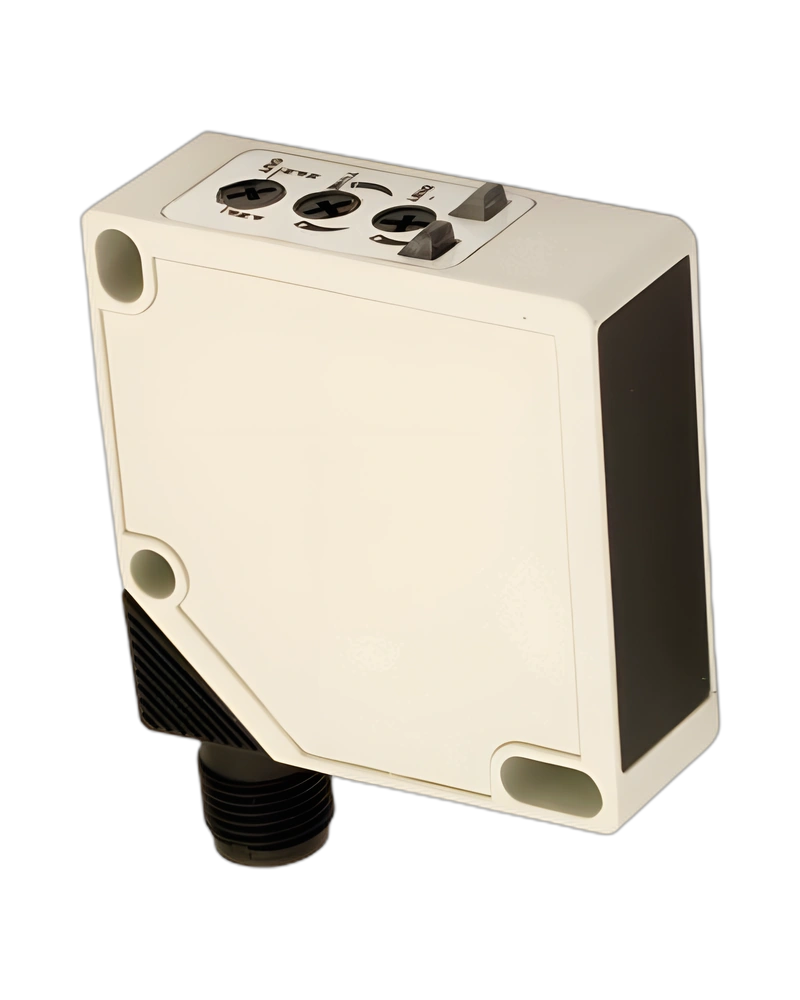

The manufacturer part number is Q50RN/0T-0A. This model is manufactured by M.D. Micro Detectors. Axial is Operating principle:.
| Specification | Details |
|---|---|
| Model | Q50RN/0T-0A |
| Manufacturer part number | Q50RN/0T-0A |
| Manufacturer | M.D. Micro Detectors |
| Switching frequency | 20 Hz |
| Weight | 200 g |
| Active head material | PMMA |
| Operating temperature | - 20 °C…+ 60 °C ( UL omologation 0 °C…60 °C) |
| Dimensions | 50X50 mm |
| Connection | 2 m PVC Cable |
| Optical position | Axial |
| Operating principle | Polarized |
| Nominal sensing distance | 0.2…6 m |
| Degree of protection | IP67 |
| EMC compatibility | EN 60947-5-2 |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Operating voltage | 12-240 VDC/ 24-240 VAC/50-60 Hz |
| Emission | Red |
