The nominal sensing distance is 120…500 mm.
Its Axial optical arrangement is paired with a nominal sensing distance of 120…500 mm. The optical emission is Infrared.
A switching frequency of 500 Hz.
No-load supply current is ≤ 40 mA. Maximum ripple is 10%.
Short-circuit protection is Yes. Reverse polarity protection is Yes. Ingress protection is rated IP67.
Dimensions are 50X50 mm and the connection is M12 Connector. Weight is 105 g.
The operating temperature range is - 20 °C…+ 60 °C (UL omologation 0 °C…60 °C). EMC compatibility is EN 60947-5-2.

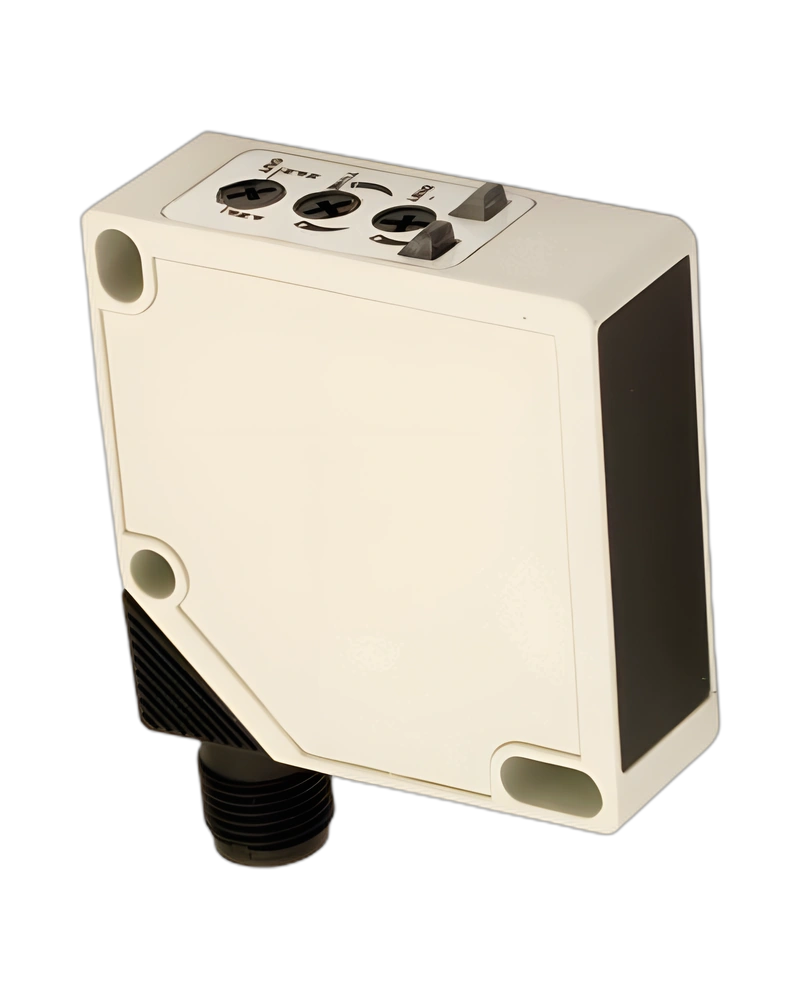

The manufacturer part number is Q50IS/B0-0E. This model is manufactured by M.D. Micro Detectors. Axial is Operating principle:.
Time to availability is ≤ 2 ms.
For electrical integration, it provides switching frequency 500 Hz. The physical configuration includes dimensions 50X50 mm, M12 Connector connection. It is rated IP67 for an operating temperature range of - 20 °C…+ 60 °C (UL omologation 0 °C…60 °C).
| Specification | Details |
|---|---|
| Model | Q50IS/B0-0E |
| Manufacturer part number | Q50IS/B0-0E |
| Manufacturer | M.D. Micro Detectors |
| Switching frequency | 500 Hz |
| Weight | 105 g |
| Active head material | PMMA |
| Operating temperature | - 20 °C…+ 60 °C ( UL omologation 0 °C…60 °C) |
| Dimensions | 50X50 mm |
| Connection | M12 Connector |
| Optical position | Axial |
| Nominal sensing distance | 120…500 mm |
| Degree of protection | IP67 |
| EMC compatibility | EN 60947-5-2 |
| Time to availability | ≤ 2 ms |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Maximum ripple | 10% |
| Load current | ≤ 200 mA |
| No-load supply current | ≤ 40 mA |
| Emission | Infrared |
