Explore performance details, construction highlights, applications, and technical information in one clear overview.
It uses Through-beam sensing. The nominal sensing distance is 20 m.
The sensing principle is Through-beam. Its Axial optical arrangement is paired with a nominal sensing distance of 20 m.
The optical emission is Infrared.
No-load supply current is ≤ 50 mA. Maximum ripple is 10%.
Short-circuit protection is Yes. Reverse polarity protection is Yes. Ingress protection is rated IP67.
Dimensions are 50X50 mm and the connection is M12 Connector. Weight is 105 g.
The operating temperature range is - 20 °C…+ 60 °C (UL omologation 0 °C…60 °C). EMC compatibility is EN 60947-5-2.

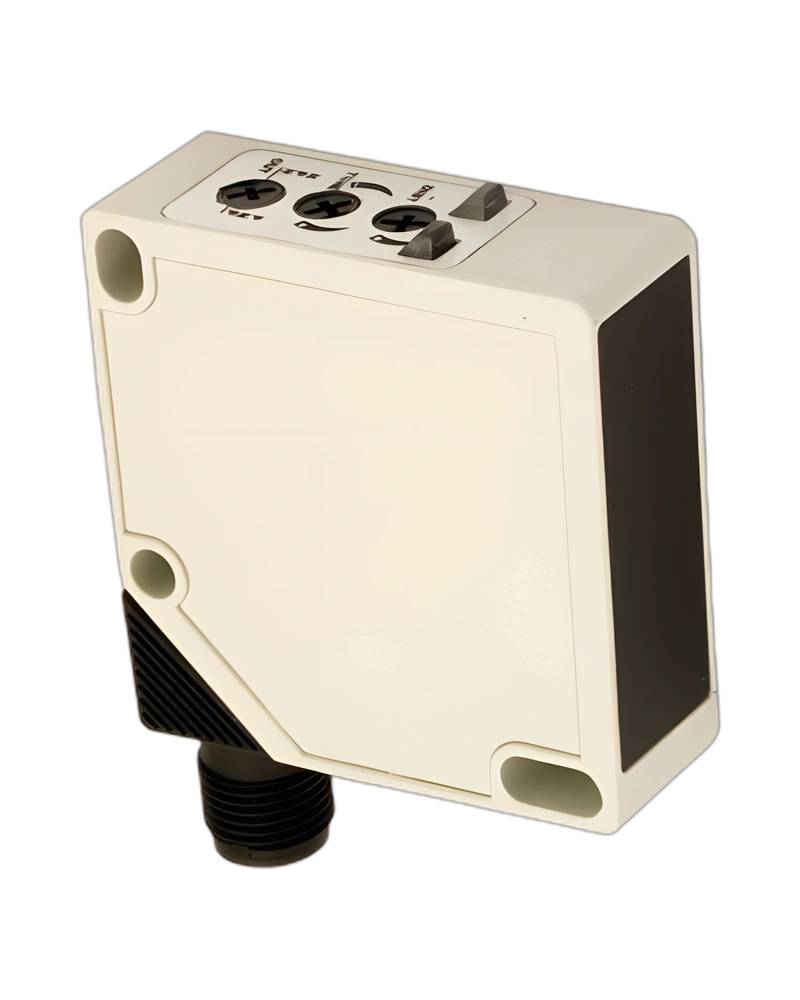

The manufacturer part number is Q50IH/00-0E. This model is manufactured by M.D. Micro Detectors. Axial is Operating principle:.
| Specification | Details |
|---|---|
| Model | Q50IH/00-0E |
| Manufacturer part number | Q50IH/00-0E |
| Manufacturer | M.D. Micro Detectors |
| Weight | 105 g |
| Active head material | PMMA |
| Operating temperature | - 20 °C…+ 60 °C ( UL omologation 0 °C…60 °C) |
| Dimensions | 50X50 mm |
| Connection | M12 Connector |
| Optical position | Axial |
| Operating principle | Through-beam |
| Nominal sensing distance | 20 m |
| Degree of protection | IP67 |
| EMC compatibility | EN 60947-5-2 |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Maximum ripple | 10% |
| No-load supply current | ≤ 50 mA |
| Emission | Infrared |
